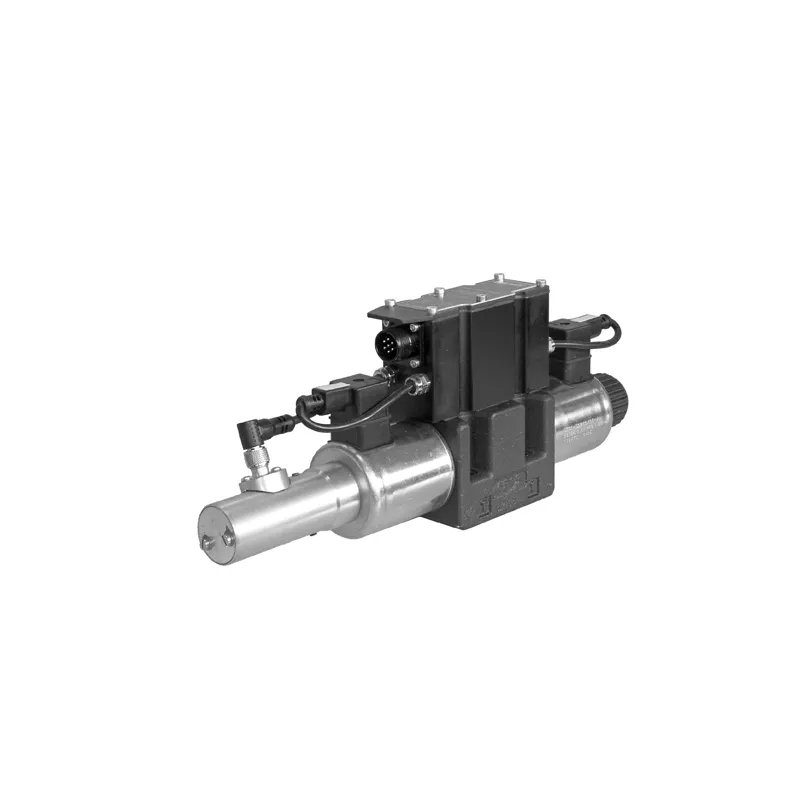

Duplomatic Proportional Directional Valve, Direct Operated, With On-Board Electronics And Feedback For Closed Loop, Type DSE5J

Brand :
Duplomatic

Proportional directional valve, direct operated, with on-board electronics and feedback for closed loop

View all
Quantity
Description
Specifications
Downloads
Related products

Description

DSE5J is a proportional directional valve, direct operated, with on-board electronics and position feedback, for subplate mounting. It is used to control the position and speed of the hydraulic actuators. The integrated electronics has analogue interface with current or voltage reference signal with connection 6 pin + PE.

Downloads

Datasheet_DSE5J.pdf

pdf
Download

Specifications

Control Mode
Digital closed-loop with spool feedback
Position Sensor
Integrated LVDT for high-precision control
Max Pressure
320 bar
Repeatability
Better than ±0.1%
Command Interfaces
Voltage ±10 V, Current 4–20 mA
Protection Features
Overload, overheating, cable failure detection
Power Rating
24 V DC, 40 VA, max solenoid current 2.8 A
Communication
LIN-bus for parameter setting and diagnostics
Ambient Conditions
-20°C to +60°C, 10–400 cSt viscosity
Feedback Control
Closed-loop spool positioning via LVDT
Diagnostic Feedback
Status via LIN-bus, error logging
Sealing Technology
NBR standard; FPM optional for synthetic fluids
Flow Accuracy
Repeatability better than ±0.1%
