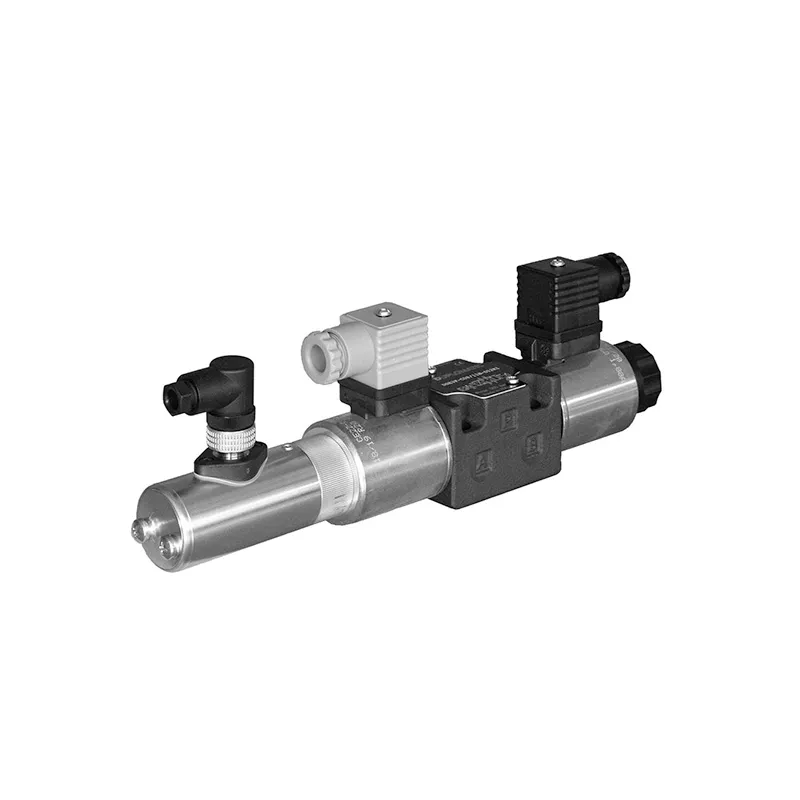

Duplomatic Proportional Directional Valve, Direct Operated, With Feedback For Closed Loop, Type DSE3F

Brand :
Duplomatic

Proportional directional valve, direct operated, with feedback for closed loop

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The DSE3F is a proportional directional valve with feedback, direct operated, for subplate mounting. It is used to control the position and speed of the hydraulic actuators. Spools with open or closed center are available for several nominal flow rates. It must be controlled by an external electronic card, like EDM-J (catalogue 89255), to be order separately.

Downloads

Datasheet_DSE3F.pdf

pdf
Download

Specifications

Valve Type
Proportional Directional Valve with Integrated Feedback
Feedback Mechanism
LVDT transducer for spool position accuracy
Electrical Interface
EN 175301-803 (solenoid), 4-pin connector (transducer)
Mounting Interface
ISO 4401-03
Flow Accuracy
Hysteresis <1.5%, Repeatability <1%
Flow Capacity
8–26 l/min (nominal)
Mass
1.9 kg (single), 2.3 kg (double)
Valve Reproducibility
<5%
Protection Rating
IP65 with compatible connectors
Voltage/Current
12 VDC / 1.88 A
Viscosity Range
10 ÷ 400 cSt
Recommended viscosity
25 cSt
Contamination Degree
ISO 4406:1999 class 18/16/13
Mass (Single Solenoid Valve)
1.9 kg
Mass (Double Solenoid Valve)
2.3 kg
Electrical Protection
IP65
Nominal Voltage
12 V DC
Nominal Current
1.88 A
Duty Cycle
100%
