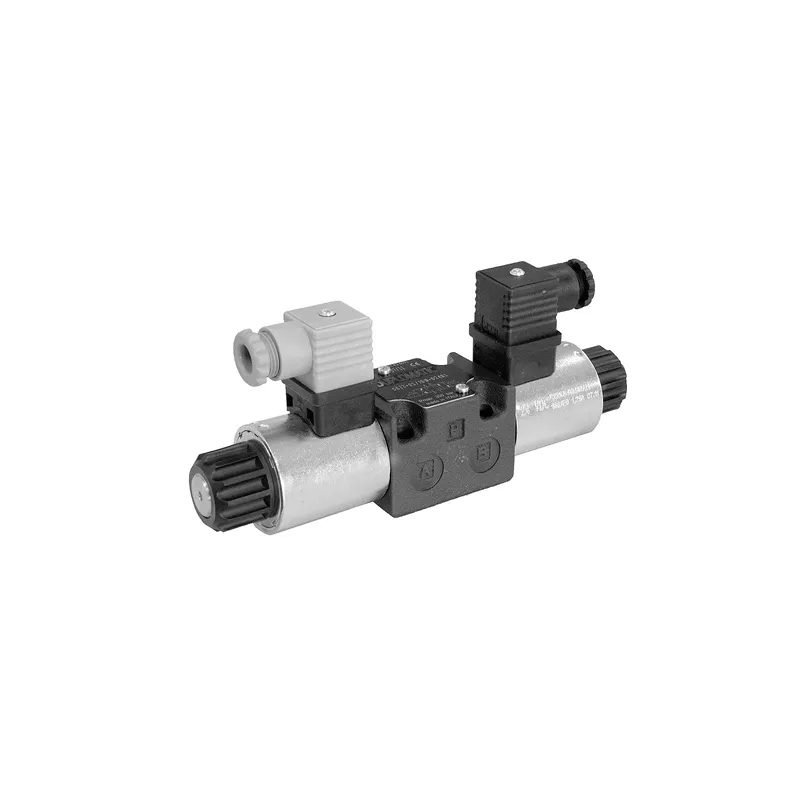

Duplomatic Proportional Directional Valve, Direct Operated, Type DSE3B

Brand :
Duplomatic

Proportional directional valve, direct operated

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The DSE3B is a proportional directional valve, direct operated, for subplate mounting. It is used to control the position and speed of the hydraulic actuators. Spools with open or closed center are available for several nominal flow rates. DSE3B valves range also includes versions with high IP degree and corrosion resistance. It can be controlled directly by a current-controlled power supply, or by an electronic card, to be order separately.

Downloads

Datasheet_DSE3B.pdf

pdf
Download

Specifications

Valve Type
Proportional Directional Valve with Electric Control
Mounting Interface
ISO 4401-03
Solenoid Options
Single (SA/SB) or dual
Manual override
Available boot-protected, knob, or screw types
Pressure Ratings
P/A/B: 350 bar, T: 160 bar
Flow Options
1 to 26 l/min depending on spool
Repeatability
±2% of max flow
Hysteresis
<6%
Temperature Range
-20°C to +60°C (ambient), +80°C (fluid)
Standard Surface Treatment
Phosphating black (optional zinc-nickel)
Recommended viscosity
25 cSt
Contamination Degree
ISO 4406:1999 class 18/16/13
Mass (Single Solenoid Valve)
1.6 kg
Mass (Double Solenoid Valve)
2.0 kg
Electrical Protection (K1)
IP65
Electrical Protection (K7)
IP65/67
Nominal Voltage
12 V DC / 24 V DC
Nominal Current
1.88 A / 0.86 A
Duty Cycle
100%
Class of Protection
Class H (coil), Class F (impregnation)
