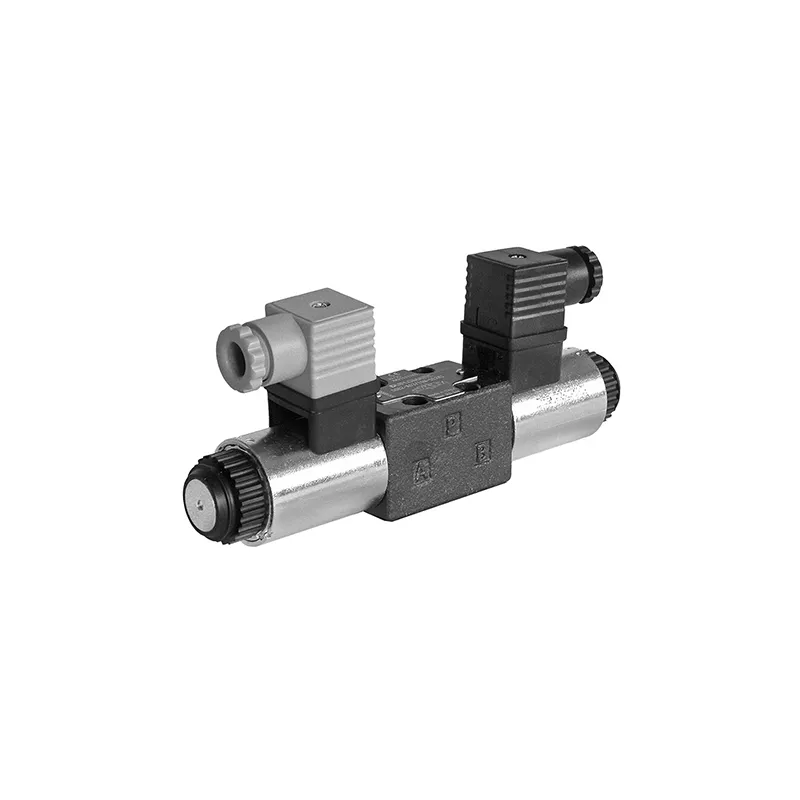

Duplomatic Proportional Directional Valve, Direct Operated, Type DSE2

Brand :
Duplomatic

Proportional directional valve, direct operated

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The DSE2 is a proportional directional valve, direct operated, for subplate mounting. It is used to control the position and speed of the hydraulic actuators. Spools with open or closed center are available for several nominal flow rates. It can be controlled directly by a current-controlled power supply, or by an electronic card, to be order separately.

Downloads

Datasheet_DSE2.pdf

pdf
Download

Specifications

Valve Type
Direct Operated Proportional Directional Valve
Mounting Standard
ISO 4401-02, CETOP 4.2-4-R02-350
Control Method
Proportional solenoid with direct current supply
Manual Override Options
Boot-protected (CM) or screw knob (CK1)
Pressure Ratings
P/A/B: 350 bar, T: 250 bar
Flow Capacity
1.4 to 8 l/min
Response Time
60 ms (for 0→100% and 100→0%)
Electrical Connections
EN 175301-803 (K1), AMP JUNIOR (K2), DEUTSCH DT04 (K7)
Coil Rotation
360° mountable
Duty Cycle
  • Continuous (100%)
  • 100%
Recommended viscosity
25 cSt
Contamination Degree
ISO 4406:1999 class 18/16/13
Mass (Single Solenoid Valve)
0.9 kg
Mass (Double Solenoid Valve)
1.3 kg
Electrical Protection (K1/K2)
IP65
Electrical Protection (K7)
IP65/67
Nominal Voltage
12 V DC / 24 V DC
Nominal Current
1.53 A / 0.78 A
Class of Protection
Class H (coil), Class F (impregnation)
