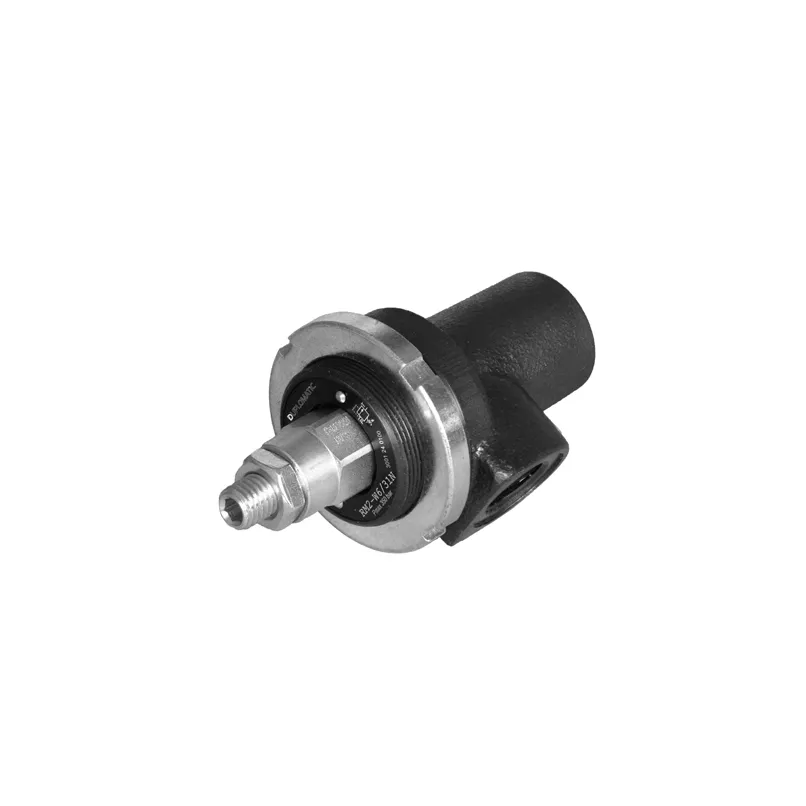

Duplomatic Pressure Control Valves, Type RM*-W

Brand :
Duplomatic

Duplomatic Pressure Control Valves, Type RM*-W - Pressure control valves

View all
Quantity
Description
Specifications
Downloads
Related products

Description

RM2-W and RM3-W are pressure relief valves, direct or pilot operated, with BSP threaded ports. Fastening by means of a ring nut. Those valves are suitable for remote piloting of control valves and as pilot valve for two-stage pressure reducers. They are available in four pressure control ranges up to 350 bar. The pressure is adjustable by means of a socket hex adjustment screw or by a knob.

Key Features

• Max Working Pressure is 350 bar • Max Flow Rate is RM2-W: 50 l/min, RM3-W: 75 l/min • Adjustment Type is Countersunk hex screw, Locking nut, Adjustment knob (optional) • Pressure Adjustment Range is Up to 350 bar • Mounting Type is Panel mounting with ring-nut fastening • Thread Size is RM2-W: 3/8” BSP (P), 1/2” BSP (T); RM3-W: 1/2” BSP (P and T)

Downloads

Datasheet_RM_-W.pdf

pdf
Download

Specifications

Max Working Pressure
350 bar
Max Flow Rate
RM2-W: 50 l/min, RM3-W: 75 l/min
Adjustment Type
Countersunk hex screw, Locking nut, Adjustment knob (optional)
Pressure Adjustment Range
Up to 350 bar
Mounting Type
Panel mounting with ring-nut fastening
Thread size
RM2-W: 3/8” BSP (P), 1/2” BSP (T); RM3-W: 1/2” BSP (P and T)
Mass
0.9 kg
Fluid Temperature Range
-20°C to +80°C
Ambient temperature range
-20°C to +60°C
Fluid Viscosity Range
10 ÷ 400 cSt
Recommended viscosity
25 cSt
Contamination Class
ISO 4406:1999 class 20/18/15
