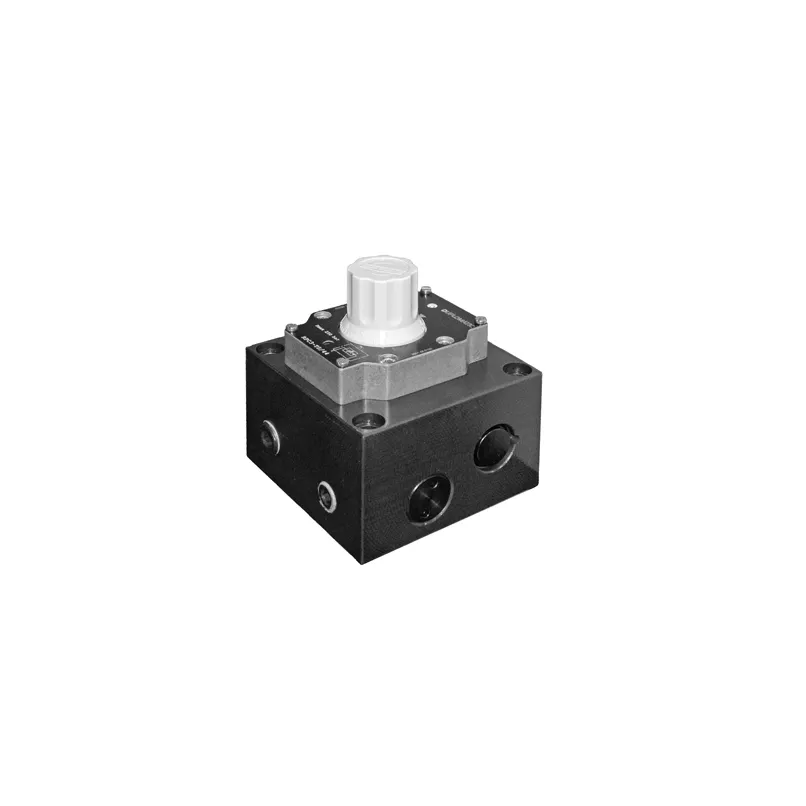

Duplomatic Pressure And Temperature Compensated Flow Control Valves, Type RPC*

Brand :
Duplomatic

Pressure and temperature compensated flow control valves. Designed for precise flow regulation in hydraulic and industrial systems. Key features include durable construction, reliable operation, and easy integration.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

RPC2 and RPC3 are pressure- and temperature-compensated flow control valves for subplate mounting. The desired flowrate value is set by means of a knob that can be can be locked in any position. The RPC1-*CT is the version with check valve, for free reverse flow. Knob can be with six turns or one turn adjustment. A version with a compensator travel limiter is available.

Key Features

• Valve Type Pressure and Temperature Compensated Flow Control Valve • Mounting Type Subplate, ISO 6263-06 (RPC2) and ISO 6263-07 (RPC3) • Max Operating Pressure 320 bar (RPC2), 250 bar (RPC3) • Check Valve Cracking Pressure 0.5 bar • Min Pressure Drop 10 bar (RPC2), 12 bar (RPC3) • Controlled Flow Range 22–150 l/min depending on size

Downloads

Datasheet_RPC_.pdf

pdf
Download

Specifications

Valve Type
Pressure and Temperature Compensated Flow Control Valve
Mounting Type
Subplate, ISO 6263-06 (RPC2) and ISO 6263-07 (RPC3)
Max Operating Pressure
320 bar (RPC2), 250 bar (RPC3)
Check Valve Cracking Pressure
0.5 bar
Min Pressure Drop
10 bar (RPC2), 12 bar (RPC3)
Controlled Flow Range
22–150 l/min depending on size
Min Controlled Flow
0.050–0.120 l/min
Temperature Compensation Accuracy
±2.5%
Pressure Compensation Accuracy
±3%
Ambient temperature range
-20°C to +60°C
Fluid Temperature Range
-20°C to +80°C
Mass
3.6 to 7.8 kg depending on size
