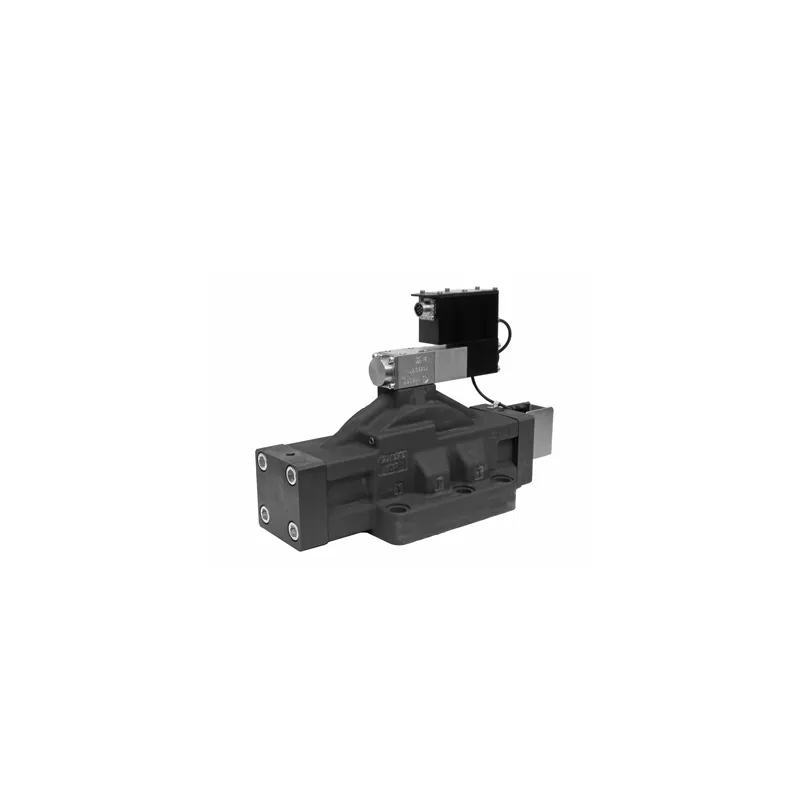

Duplomatic High Response Directional Valves, Pilot Operated, With On-Board Electronics And Double Position Feedback, Type DXRE*J*
Brand :
![Duplomatic]()
High response directional valves, pilot operated, with on-board electronics and double position feedback
View all
Description
DXRE*J and DXRE*JH are directional control valves operated by a servo-proportional valve with fail-safe position and high dynamic solenoid. The main spool position is controlled by a LVDT linear transducer in closed loop, which ensures high precision and repeatability. Available in sizes from ISO 4401-05 to ISO 4401-10 with oversized ports, these valves are suitable for applications in closed loop control systems of position, speed and pressure. When a of power failure occurs, or without enabling command, the main spool is carried to the fail-safe position by the springs. Spools with overlap, underlap or zero overlap are available. The valves are available with two types of on-board electronics: The J version is our standard electronics with analogue interface with current or voltage reference signal with connection 6 pin + PE. The JH version has interface for fieldbus communication type EtherCAT, Ethernet/IP or Profinet, with 11 pin M12 connection.
Key Features
• Electronic control with ±10 V input • Pressure rating up to 350 bar • Dual mounting interface support • Position transducer integratedDownloads
Specifications
