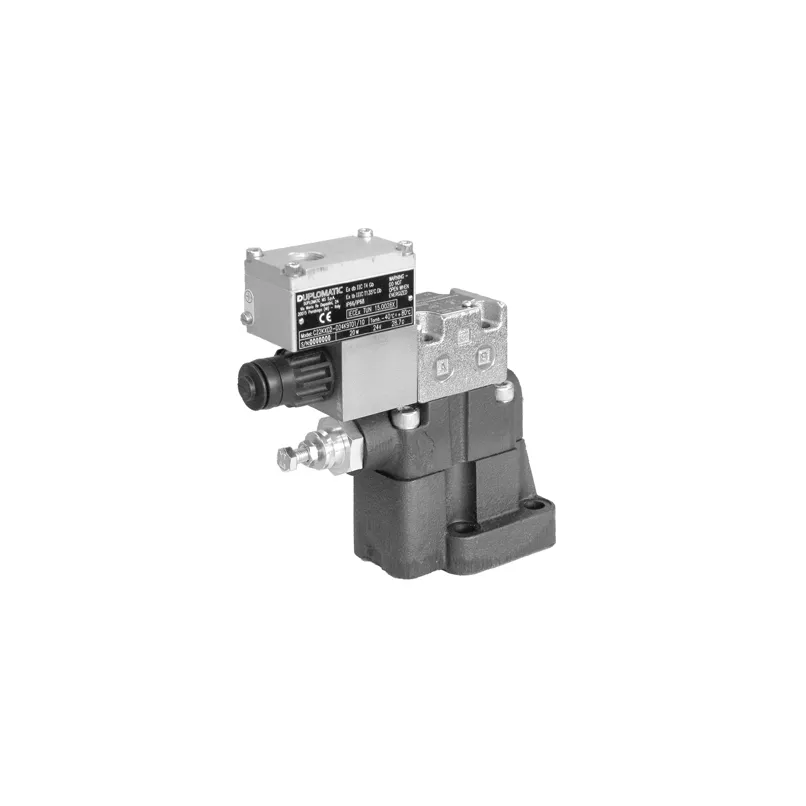

Duplomatic Explosion-Proof Solenoid Actuated Pressure Relief Valve, With Unloading And Pressure Selection Compliant With ATEX, IECEx, INMETRO, PESO, Type RQM*K*-P

Brand :
Duplomatic

Explosion-proof solenoid actuated pressure relief valves, with unloading and pressure selection compliant with ATEX, IECEx, INMETRO, PESO

View all
Quantity
Description
Specifications
Downloads
Related products

Description

RQM3K*- P RQM5K*- P and RQM7K*- P are explosion proof, solenoid actuated pressure relief valves, with unloading and pressure selection. They are suitable for flowrates up to 500 l/min, for subplate mounting. They are compliant with ATEX, IECEx, INMETRO or PESO requirements and are suitable for use in potentially explosive atmospheres, for surface plants or mines. A low temperature version (up to - 40 °C) is also available. Five versions are available, for the discarge of the entire flow by a solenoid valve or for selection of up to 3 pressure values: the selection of the second and third pressure value is obtained by means of a pressure relief valve placed between the main stage and the solenoid valve. Ports for remote pilot supply of the valve and for pressure gauge are present. The valves are available with DC solenoid or RAC solenoids to be feed with AC power supply. Rectifier bridge is built-in in the coil. Several connection types are available, metric or NPT type. Cable-glands are available.

Downloads

Datasheet_RQM_K_-P.pdf

pdf
Download

Specifications

Type
Explosion-proof solenoid operated pressure relief valve
Series
RQM*K*-P
Mounting
Subplate, ISO 6264-06/08/10
Maximum operating pressure
350 bar
Maximum flow
200 l/min (RQM3K*-P), 400 l/min (RQM5K*-P), 500 l/min (RQM7K*-P)
Pressure Settings
Up to 3 selectable pressure values with unloading
Adjustment
Hexagonal head screw or SICBLOC knob (main stage)
Fluid Viscosity Range
10 ÷ 400 cSt
Fluid Contamination
ISO 4406:1999 class 20/18/15
Recommended viscosity
25 cSt
Certification
ATEX, IECEx, INMETRO, PESO
Surface Treatment
Phosphating black (main), zinc-nickel (pilot body); full Zn-Ni on request
Temperature Range
See data sheet 02 500
Seals
N = NBR, V = FPM, NL = low temp
Power Supply
DC: 12/24/48/110V, AC: 120/240V with rectifier
