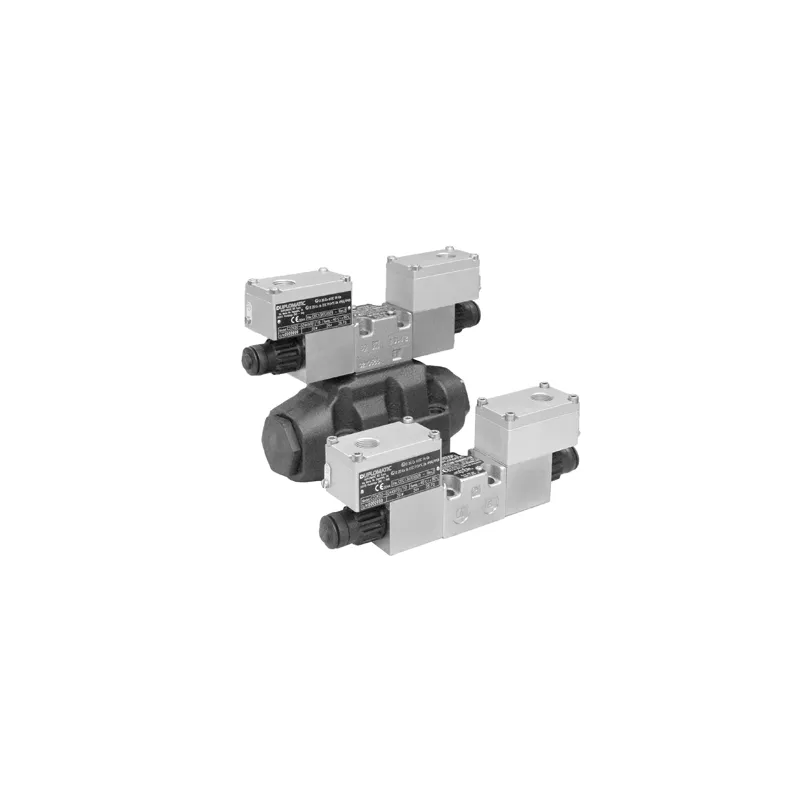

Duplomatic Explosion-Proof Solenoid Actuated Directional Valve Compliant With ATEX, IECEx, INMETRO, PESO, Type DK

Name: Duplomatic Explosion-Proof Solenoid Actuated Directional Valve Compliant With ATEX IECEx INMETRO PESO Type D*K*
Brand: Duplomatic
Rating: 5 (1 reviews)

Brand :

Explosion-proof solenoid actuated directional valves compliant with ATEX, IECEx, INMETRO, PESO

View all

Quantity

Description

Specifications

Downloads

Description

The DK are explosion-proof directional solenoid valves for subplate mounting. DS3K* and DSL5BK* are direct operated. DSP5RK, DSP5K, DSP7K, DSP8K and DSP10K* are pilot operated. They are compliant with ATEX, IECEx, INMETRO or PESO requirements and are suitable for use in potentially explosive atmospheres, for surface plants or mines. A low temperature version (up to - 40 Â°C) is also available. The valves are available with DC solenoid or RAC solenoids to be feed with AC power supply. Rectifier bridge is built-in in the coil. Several connection types are available, metric or NPT type. Cable glands are available.

Downloads

Datasheet_D_K_.pdf

pdf

Download

Specifications

Type

Explosion-proof directional solenoid valve

Series

D*K*

Mounting

Subplate, ISO 4401 (all major sizes)

Maximum operating pressure

350 bar (P, A, B); 320 bar for DL5BK*; T: 210 bar

Maximum flow

80 l/min (03), 125 l/min (05), up to 1100 l/min (10)

Configuration

2 or 3 position, various spools, direct or pilot operated

Manual override

CM (boot), CB (blind ring), CK1 (knob), CH (lever)

Fluid Viscosity Range

10 ÷ 400 cSt

Fluid Contamination

ISO 4406:1999 class 20/18/15

Recommended viscosity

25 cSt

Certification

ATEX, IECEx, INMETRO, PESO

Surface Treatment

Zinc-nickel 600h salt spray resistance

Seals

N = NBR, V = FPM, NL = low temp

Power Supply

DC: 12/24/48/110V, AC: 120/240V with rectifier

Temperature Range

See data sheet 02 500
