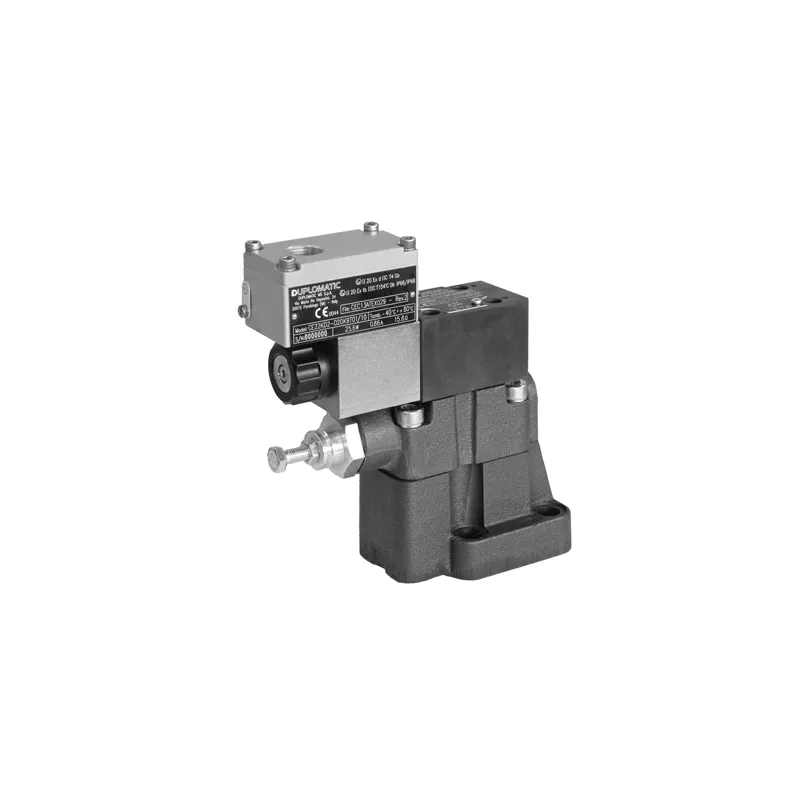

Duplomatic Explosion Proof-Proportional Pressure Relief Valve Compliant With ATEX, IECEx, INMETRO, PESO, Type PEK*

Name: Duplomatic Explosion Proof-Proportional Pressure Relief Valve Compliant With ATEX IECEx INMETRO PESO Type P*E*K*
Brand: Duplomatic
Rating: 5 (1 reviews)

Brand :

Explosion proof-proportional pressure relief valves compliant with ATEX, IECEx, INMETRO, PESO

View all

Quantity

Description

Specifications

Downloads

Description

The PDE3K, PRE3K, PRE10K, PRE25K and PRE32K* are explosion proof proportional pressure control valves, direct and pilot operated, for subplate mounting. They are compliant with ATEX, IECEx, INMETRO or PESO requirements and are suitable for use in potentially explosive atmospheres, for surface plants or mines. A low temperature version (up to - 40 Â°C) is also available. They are used to modulate the pressure of the hydraulic circuit and allow the use of the entire flow of the pump, even with pressure values near the set value. They have a mechanical pressure limitation feature inside the pilot stage, for higher safety of the application. The valves are available with 12 or 24 V solenoid. Several connection types are available, metric or NPT type. Cable glands are available.

Downloads

Datasheet_P_E_K_.pdf

pdf

Download

Specifications

Type

Explosion-proof proportional pressure relief valve, pilot operated

Series

P*E*K* (PDE3K*, PRE3K*, PRE10K*, PRE25K*, PRE32K*)

Mounting

Subplate, ISO 4401-03/06/08/10 (or ISO 6264 for PRE*K*)

Maximum operating pressure

350 bar (P port); 2 bar (T port)

Maximum flow

Up to 500 l/min (PRE32K*)

Pressure Control Ranges

0.9-25, 1.6-70, 2.4-140, 3.2-210, 5-350 bar (by model)

Hysteresis

<5% of p nom

Repeatability

<±1.5% of p nom

Step Response

See datasheet p.11

Fluid Viscosity Range

10 ÷ 400 cSt

Fluid Contamination

ISO 4406:1999 class 18/16/13

Recommended viscosity

25 cSt

Mass

1.8 to 8.3 kg (by model/size)

Certification

ATEX, IECEx, INMETRO, PESO

Surface Treatment

Phosphating black standard, zinc-nickel optional

Seals

N = NBR, V = FPM, NL = low temp

Power Supply

DC: 12/24V

Temperature Range

See data sheet 02 500
