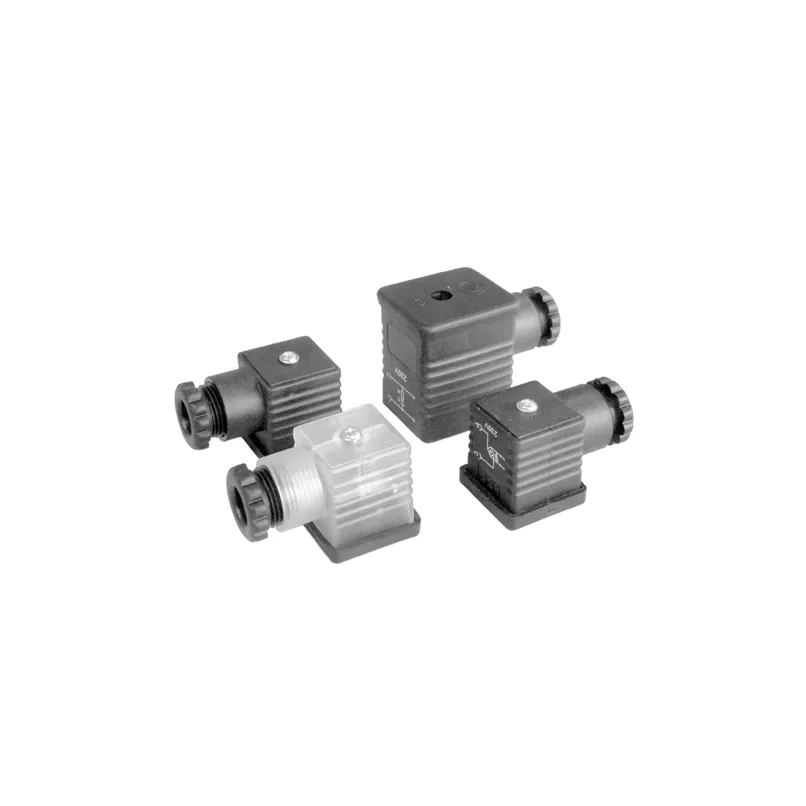

Duplomatic Electric Connectors, Type EC

Brand :
Duplomatic

Electric connectors - The Ec Connectors Are Made According To En 175301-803, Shape “A”

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Ec Connectors Are Made According To En 175301-803, Shape “A”. They Are Used For The Electrical Connection Of Valve Coils. When They Are Correctly Installed And Coupled, They Provide Waterproof Protection According To Iec En 60529 Standards, Ip65. Insulation In Compliance With Iec 60664-1:2007 Standard, Operating Voltage Up To 250 Volt. The Wire Terminal Block Is Removable From The External Housing To Allow The Wire Connections To The Clamps, And The Electrical Contacts Can Be Turned Through 90° (Except Version H) If Required. Four Different Types Are Available: Type A Connector Two Poles + Ground; Type B* With Led (Available Voltages: 10 ÷ 50 And 70 ÷ 250V); Types D And D1 With Bridge Rectifier; Type H With Rc Damping Circuit. Type A Is Also Available In Gray Colour. They Are Supplied With M3 Fixing Screw And Nbr Gasket.

Downloads

Datasheet_EC.pdf

pdf
Download

Specifications

Product Type
Electronic Amplifier
Function
The circuit function of a solenoid valve specifies how fluid will flow between the valve's ports when it is energized de-energized.
Proportional Valve Control
Signal Type
Analog ±10V, 4–20mA
Channels
Single or Dual
Power Supply
12–24 VDC
Adjustment
Via Potentiometer or Software
Mounting
DIN Rail
Protection degree
IP20
Indicators
LED for Status
Ambient temperature
-20°C to +60°C
Output
Current / Voltage
Application
Proportional Control Systems
