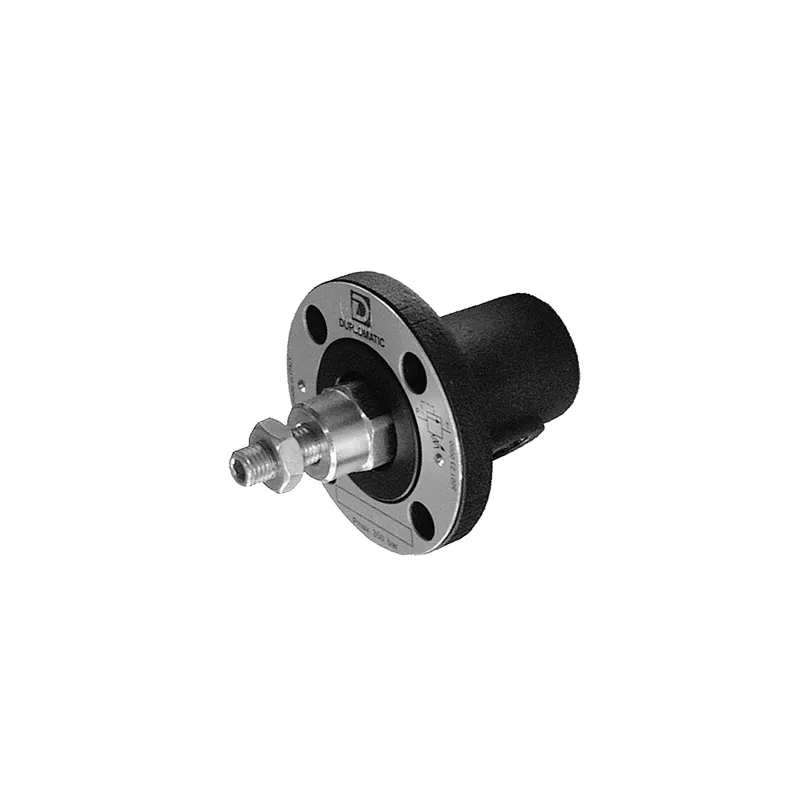

Duplomatic Direct Operated Pressure Control Valve, Type CD1-W

Brand :
Duplomatic

Duplomatic Direct Operated Pressure Control Valve, Type CD1-W - Direct operated pressure control valve

View all
Quantity
Description
Specifications
Downloads
Related products

Description

CD1-W are direct operated pressure relief valves with threaded ports ¼” NPT, for flange mounting. Those valves, are suitable for remote piloting of control valves and as pilot valve for two-stage pressure reducers. They are available in four pressure control ranges up to 350 bar. The pressure is adjustable by means of a socket hex adjustment screw or by a knob.

Key Features

• Max Working Pressure is 350 bar • Max Flow Rate is 1.2 l/min • Adjustment Type is Countersunk hex adjustment screw (Spanner 5), Locking nut (Spanner 17) • Pressure Adjustment Range is Up to 350 bar • Mounting Type is Threaded ports for flange mounting • Thread Size is 1/4” NPT (P and T ports)

Downloads

Datasheet_CD1-W.pdf

pdf
Download

Specifications

Max Working Pressure
350 bar
Max Flow Rate
1.2 l/min
Adjustment Type
Countersunk hex adjustment screw (Spanner 5), Locking nut (Spanner 17)
Pressure Adjustment Range
Up to 350 bar
Mounting Type
Threaded ports for flange mounting
Thread size
1/4” NPT (P and T ports)
Fluid Temperature Range
-20°C to +80°C
Ambient temperature range
-20°C to +60°C
Fluid Viscosity Range
10 ÷ 400 cSt
Recommended viscosity
25 cSt
Contamination Class
ISO 4406:1999 class 20/18/15
Hydraulic Fluid Compatibility
HL or HM mineral oils (ISO 6743-4), NBR seals standard
