Duplomatic Digital Card For Pressure/Flow Control In Closed Loop Systems, Type EWM-PQ-AA

Brand :
Duplomatic

Digital card for pressure/flow control in closed loop systems

View all
Quantity



Description
Specifications
Downloads
Related products

Description

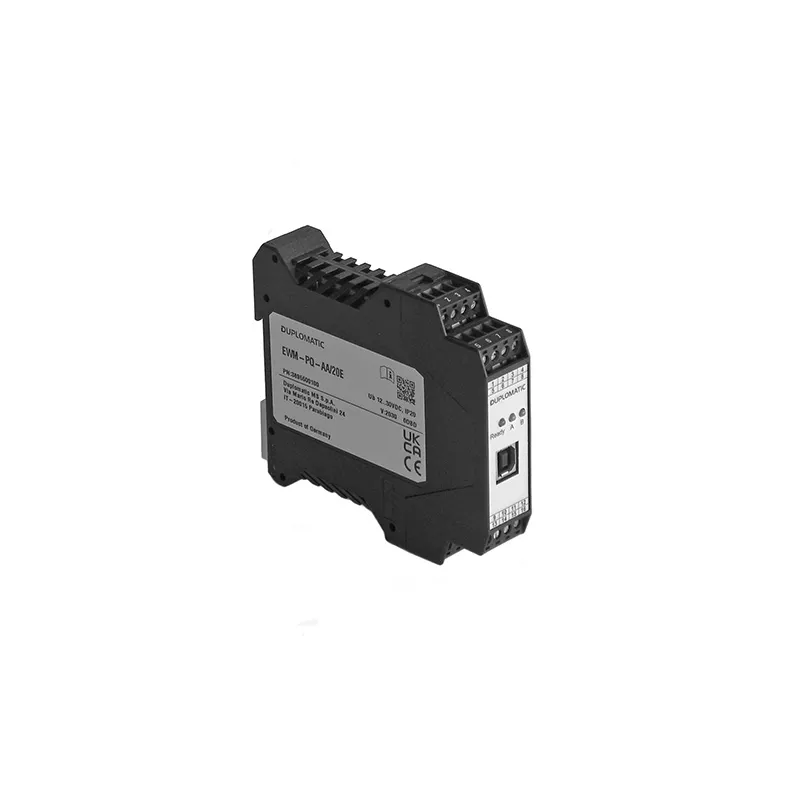

the EWM-PQ-AA is a p/Q axis card for controlling a high-response valve with zero overlap spool and hydraulic actuator equipped with analogue pressure sensors. The controller automatically switches from flow control to pressure control to keep the pressure within the set limits. pressure is controlled in closed loop only with positive flow value. The output value to control the valve in voltage or current must be configured via software. The EWMPC/20 software can be downloaded from this page. Connection via USB port on the front panel. The start-up manual is available for our customers after obtaining credentials to access the reserved area.

Key Features

• Multifunction card for both pressure and flow regulation • High-resolution feedback for precise control • Compatible with various sensors

Downloads

Datasheet_EWM-PQ-AA.pdf

pdf

Specifications

Type
Digital card for pressure/flow control in closed loop systems
Series
20
Power Supply
12–30 V DC (ripple included)
Fuse, External
1A (medium time lag)
Current Consumption
<100 mA
Pressure Command Input
0–10 V (25 kΩ), 4–20 mA (240 Ω)
Flow Command Input
±10 V (90 kΩ), 4–20 mA (240 Ω)
Feedback Inputs
0–10 V (25 kΩ), 4–20 mA (240 Ω)
Sensor Resolution
0.003% incl. oversampling
Output Values
±10 V differential (max 10 mA, 2 kΩ), 4–20 mA (max 390 Ω)
Sample Time
1 ms
Interface
USB-B 2.0
Protection degree
IP20
Operating Temperature
-20°C to +60°C
Functions
PID controller, ramp up/down, pressure limitation, error/cable break monitoring, status outputs
