Duplomatic Digital Amplifier For Proportional Valves In Open Loop, Type EDM-M*

Brand :
Duplomatic

Digital amplifier for proportional valves in open loop

View all
Quantity
Description
Specifications
Downloads
Related products

Description

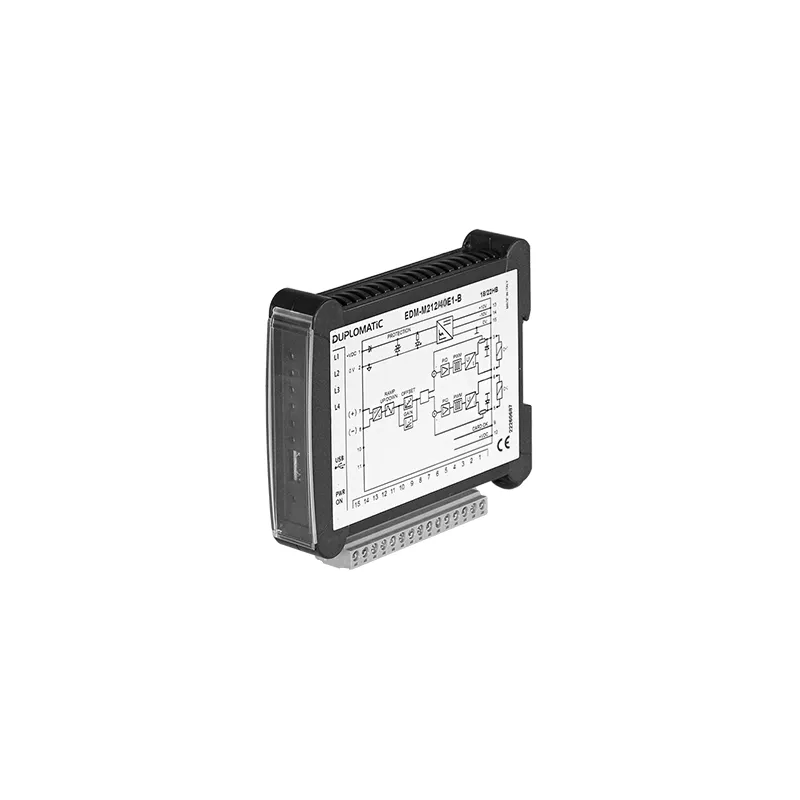

The EDM-M* card is a digital amplifier for open loop proportional valves control, for rail mounting DIN EN 50022. The card supplies the current to the solenoid according to the reference signal and independently of temperature variations or load impedance. The card is available in versions for the control of a single solenoid valve (M1), a double solenoid valve (M2) or two single solenoid valves (M3) by two independent channels. The reference signal is analogue (voltage or current). Each version is available with different maximum current settings and switching frequencies (PWM), optimized according to the relevant valve. Card setup via software only, through the on-board micro USB port. The front panel houses the LEDs for diagnostics and card operation and a micro-USB port for connection to the EDM40-SmartManager software for diagnostics and / or configuration. The software is downloadable from this page under 'DOWNLOAD' column. This product replaces the discontinued EDM-M* cards 31 series with current or voltage reference signal.

Key Features

• Robust digital amplifier for open loop control • Wide voltage input range and programmable parameters • Space-saving DIN rail design

Downloads

Datasheet_EDM-M_.pdf

pdf
Download

Specifications

Type
Digital amplifier for open loop proportional valves
Series
40
Power Supply
9–32 V DC (ripple included)
Required Power
20–70 W
Max Input/Output Current
5.5 A
Reference Signals
±10 V, 0–10 V (<100 kΩ), 4–20 mA (499 Ω)
Aux Output Voltages
+10 V DC (50 mA), -10 V DC (50 mA)
Digital Input (Enable)
ON > 10 V, OFF < 5 V
Digital Output
Low < 2 V, High > Ub
Fuse, External
6 A (medium time lag)
Housing material
ABS
Housing Dimensions
23 x 98 x 122 mm
Mounting
DIN EN 50022 rail
Connections
Plug-in terminal block, 15 poles, micro USB
Protection degree
IP20
Operating Temperature
-20°C to +70°C
Mass
0.15 kg
EMC Compliance
2014/30/EU
Versions
Single, double, or dual-channel
Control
Parameters programmable via software (ramps, dither, PWM, etc.)
