Duplomatic Digital Amplifier For Proportional Valves In Open Loop, Plug-In, Type EDC-1

Brand :
Duplomatic

Digital amplifier for proportional valves in open loop, plug-in

View all
Quantity
Description
Specifications
Downloads
Related products

Description

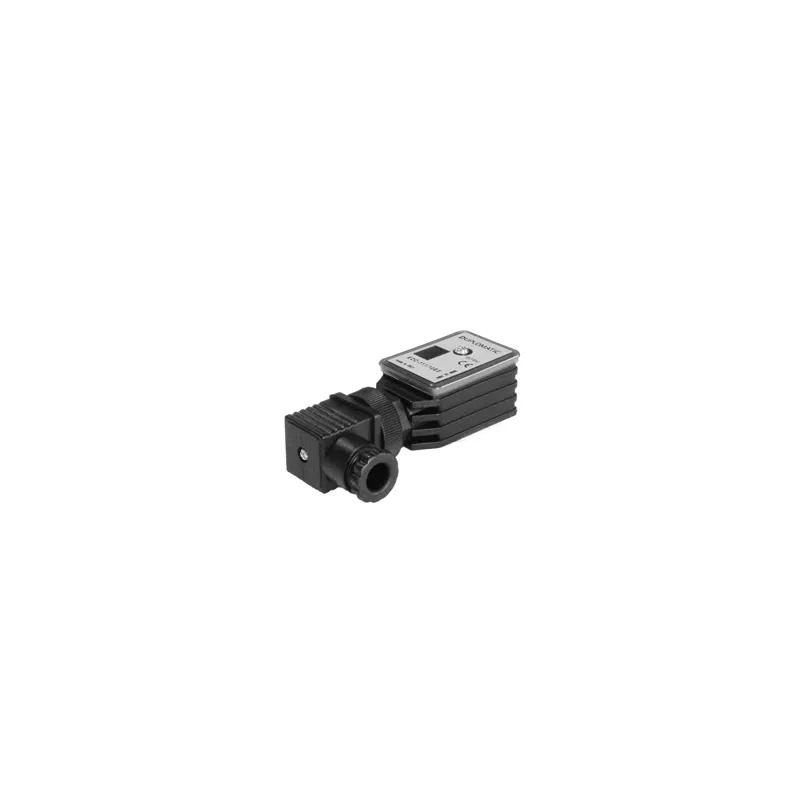

The EDC-1 is a digital amplifier for controlling open-loop proportional valves, with plug-in mounting on the coil's DIN and DIN or M12 electrical connection side. It delivers a current proportional to the reference signal and independent to temperature variations and load impedance, with a resolution of 1% on full scale 2600 mA. Powering the solenoid via a PWM stage reduces valve hysteresis and improves control accuracy. The EDC-1 range offers different maximum current and switching frequency (PWM) settings, depending on the type of valve to be controlled. Parameter adjustment is via push-buttons and display, or via laptop PC with EDCPC software and connection to the RS232 socket inside the device. The EDCPC Configuration Kit can be ordered separately.

Key Features

• Digital amplifier ensures precise proportional valve control • Supports a wide range of command signals • Compact, DIN rail mounting for easy installation

Downloads

Datasheet_EDC-1.pdf

pdf
Download

Specifications

Type
Digital amplifier for single solenoid proportional valves (open-loop)
Series
10
Power Supply
10–30 V DC (ripple included)
Required Power
20–40 W
Output Current
800–2600 mA
Input Signals
0–10 V, 0–5 V, 4–20 mA
Input Impedance
100 kΩ (voltage), 500 Ω (current)
Connector Type
EN 175301-803 (ex DIN 43650) or M12 4 pin
Protection
IP65/IP67
Operating Temperature
-20°C to +70°C
Mass
0.10 kg
EMC Compliance
IEC EN 61000-6-4 (emissions), IEC EN 61000-6-2 (immunity)
Electrical Protections
Overvoltage, reverse polarity, short-circuit
Display
Onboard with control keys
Mounting
Plug-in type
