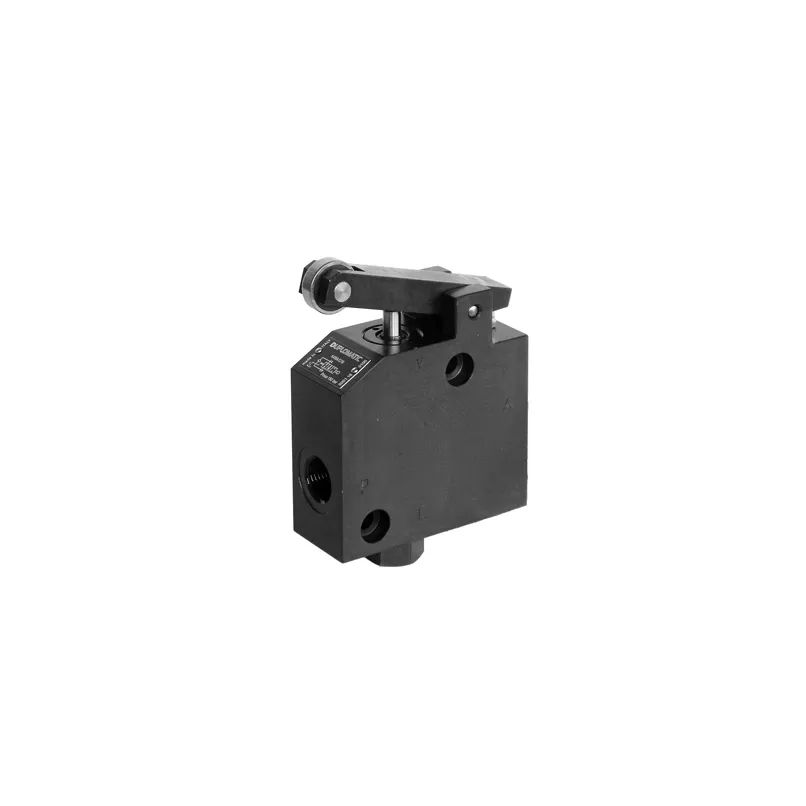

Duplomatic Deceleration Valve, Type K4WA/C

Brand :
Duplomatic

Deceleration valve. Designed for precise flow regulation in hydraulic and industrial systems. Key features include durable construction, reliable operation, and easy integration.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

K4WA/C is a flow control valve with mechanical actuation by roller plunger, designed for speed deceleration of the hydraulic axis. A check valve allows free reverse flow. It has threaded ports 1/2” BSP for in-line mounting.

Key Features

• Valve Type Modular Pressure and Temperature Compensated Flow Control Valve • Mounting Interface ISO 4401-05 (CETOP 4.2-4-05-250) • Max Operating Pressure 250 bar • Flow Adjustment Range 1, 4, 10, 16, 22, 30 l/min • Free Line Max Flow 100 l/min • Reverse Free Flow Max 40 l/min

Downloads

Datasheet_K4WA_C.pdf

pdf
Download

Specifications

Valve Type
Modular Pressure and Temperature Compensated Flow Control Valve
Mounting Interface
ISO 4401-05 (CETOP 4.2-4-05-250)
Max Operating Pressure
250 bar
Flow Adjustment Range
1, 4, 10, 16, 22, 30 l/min
Free Line Max Flow
100 l/min
Reverse Free Flow Max
40 l/min
Ambient temperature range
-20°C to +60°C
Fluid Temperature Range
-20°C to +80°C
Fluid Viscosity Range
10 to 400 cSt
Recommended viscosity
25 cSt
Fluid Contamination
ISO 4406:1999 class 20/18/15
Mass
4.3 to 5.6 kg depending on model
