Duplomatic Card Holders For Eurocard Electronics, Type PSC

Brand :
Duplomatic

Card holders for Eurocard electronics

View all
Quantity
Description
Specifications
Downloads
Related products

Description

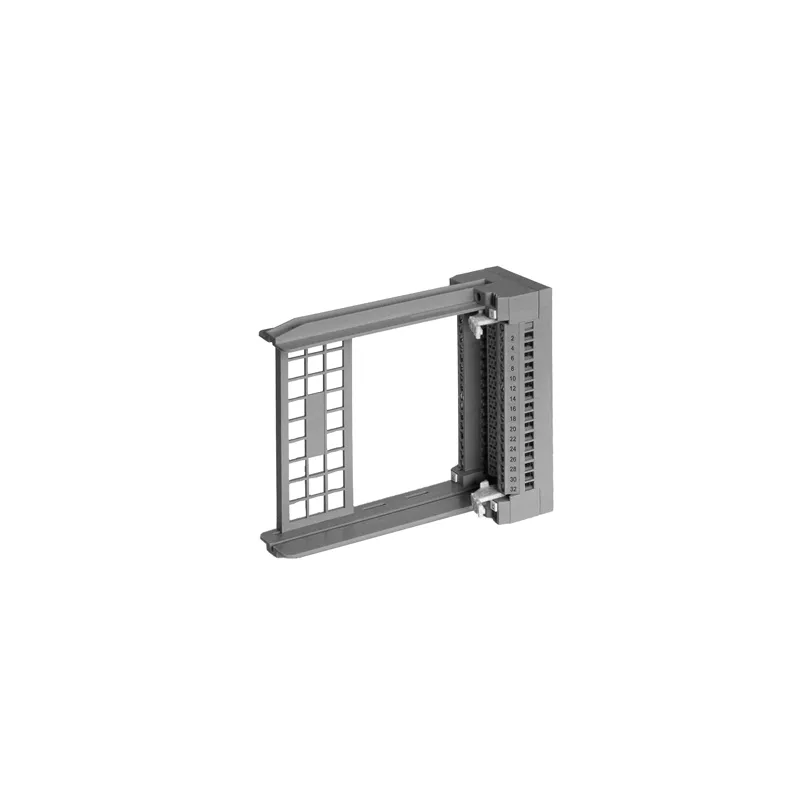

PSC type card holders are accessories for the installation of Eurocard type electronic cards, like Duplomatic UEIK series. They can be installed in electrical cabinets or fixed directly on a plate. They are available with a IEC 603 / DIN 41612 connector, with a female fitting, either D shape 32 poles, or F shape 48 poles. A special safety locking fastens the electronic card and prevents any accidental contact loss between the two used connectors. The conductor wiring is carried out via a terminal block with fastening bolts.

Key Features

• Card holder for Eurocard standard electronic units • Secure installation with safety locking • Supports both 32D and 48F connectors

Downloads

Datasheet_PSC.pdf

pdf
Download

Specifications

Type
Card holder for electronic control units (Eurocard format)
Series
20
Connector Type
IEC 603 / DIN 41612 (female)
Number of Poles
32D (32 poles, D shape), 48F (48 poles, F shape)
Nominal Voltage
250 V
Nominal Current
4 A
Max Flexible Conductor
2.5 mm²
Max Stiff Conductor
4 mm²
Mounting
Directly on plate, inside switchboard
Features
Choose any special solenoid valve features that are important for your application.
Safety locking, terminal block with fastening bolts
