Duplomatic Axis Synchronization Controller In Systems With Up To 9 Axes With Canbus/ Profinet Communication, Type EWM-SS-DAD

Brand :
Duplomatic

Axis synchronization controller in systems with up to 9 axes with CanBUS/ Profinet communication

View all
Quantity
Description
Specifications
Downloads
Related products

Description

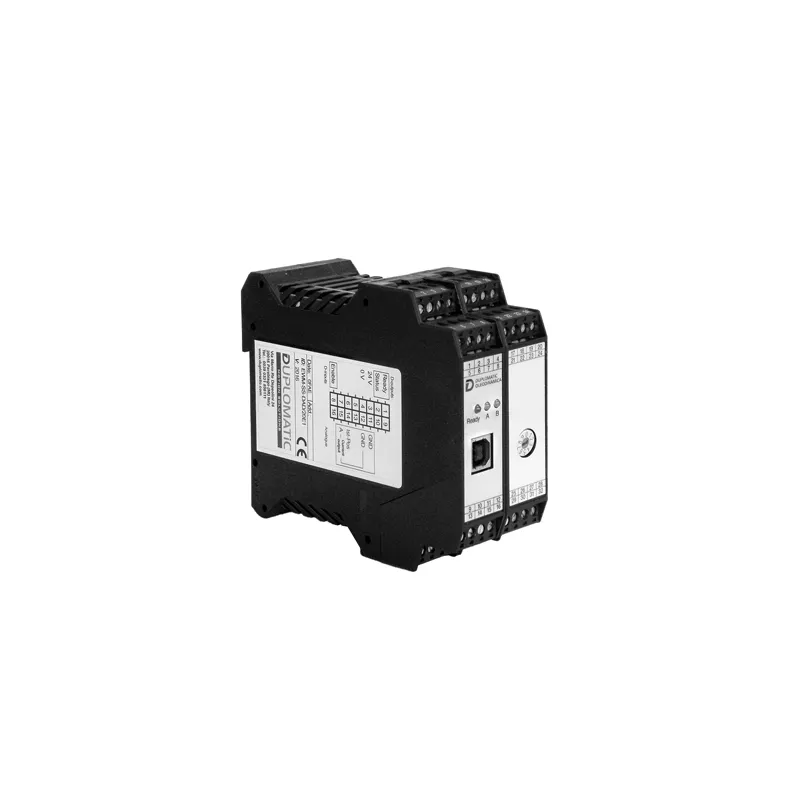

This is a card for the positioning control of up to 9 axes via CanBus connection, within a synchronization system Master / Slave type, that communicate to with the PLC via a Profibus interface (Can/Profibus coupler available separately). The EWM-SS-DAD card drives an axis provided with an SSI position sensor (high precision), or rather an analogue sensor. Each axis to be synchronized within the system requires one card. The synchronization controller adapts the speed of the slave axis. Positioning errors during movement increase or reduce the slave axis velocity, in order to compensate the synchronization error. The CAN address can be selected directly by the rotary switch on the card. To configure it you need the EWMPC/20 software, which can be downloaded from this page. Connection by USB port on the front panel. User Manuals are available upon registration in the reserved area.

Key Features

• Two-axis synchronization or independent control • CAN/Profibus communication for easy integration • Quick error monitoring and troubleshooting

Downloads

Datasheet_EWM-SS-DAD.pdf

pdf
Download

Specifications

Type
Card for synchronization control (up to 9 axes, CAN)
Series
20
Power Supply
24–30 V DC (ripple included)
Fuse, External
1A (medium time lag)
Current Consumption
<350 mA + sensor
Command/Speed Input
via CANbus/Profibus-CAN
Feedback
SSI digital, 0–10 V (33 kΩ), 4–20 mA (240 Ω)
Output
±10 V differential (max 5 mA), 4–20 mA (max 390 Ω)
Position Accuracy
±2 bits digital sensor
Sample Time
2–5 ms
Interface
USB-B 2.0, CANBus
Protection degree
IP20
Operating Temperature
-10°C to +50°C
Functions
Synchronized/independent positioning, error monitoring, manual mode, double-gain, status outputs
