Duplomatic Axis Synchronization Controller, Analogue Signals, Type EWM-MS-AA

Brand :
Duplomatic

Axis synchronization controller, analogue signals

View all
Quantity
Description
Specifications
Downloads
Related products

Description

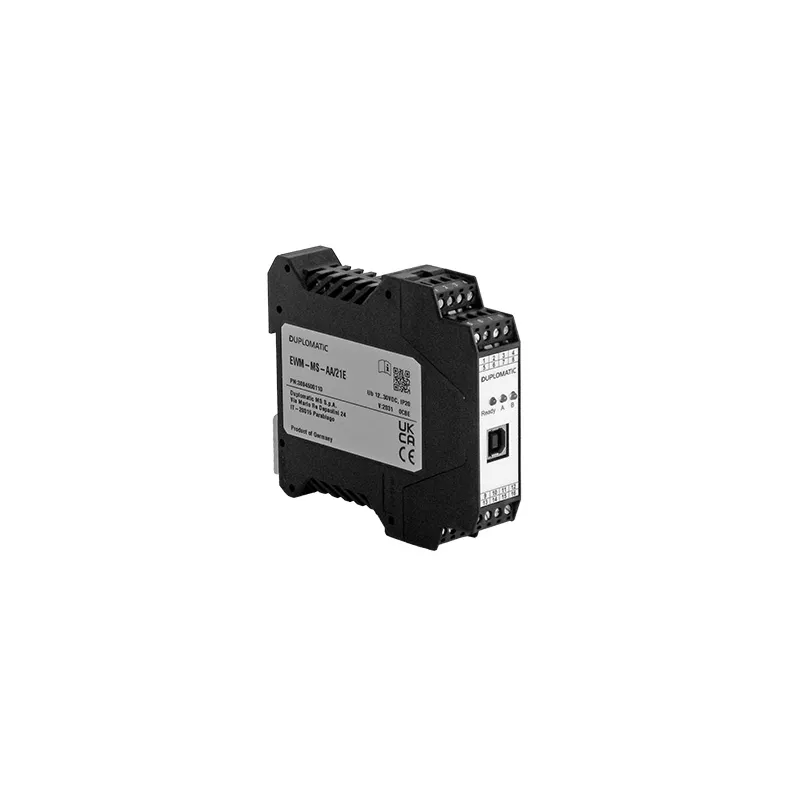

The EWM-MS-AA is a digital card for the control of the proportional valve that controls the position of hydraulic actuators in synchronized systems such as Master / Master (2 axes) or Master / Slave (up to 6 axes), equipped with an analog position sensor. This card manages just the axis, one card is required for each axis to be synchronized. It is available with integrated power amplifier or with output value, to be configured via software for voltage or for current. The axes speed can be limited by an external analogue speed input. To configure it you need the EWM20_SmartManager software, which can be downloaded from this page. Connection by USB port on the front panel. User Manuals are available upon registration in the reserved area.

Key Features

• Advanced axis synchronization for multi-axis systems • High resolution and fast response • Flexible analog input and output compatibility

Downloads

Datasheet_EWM-MS-AA.pdf

pdf
Download

Specifications

Power Supply
12–30 V DC (ripple included)
External Fuse
1A (3A for M2)
Current Consumption
<100 mA (E); 60 W (M2)
Command Value
0–10 V (RI = 25 kΩ), 4–20 mA (RI = 240 Ω)
Position Input Value Resolution
0.003%, 1 μm max
Speed Input
0–10 V (R = 90 kΩ), 4–20 mA (RI = 240 Ω)
Feedback Value
0–10 V (RI = 25 kΩ), 4–20 mA (RI = 240 Ω)
Output Value
±10 V (max load 10 mA), 4–20 mA (max load 390 Ω), 0.5–2.6 A stepless (M2)
Interface
USB-B 2.0
Housing material
Thermoplastic polyamide PA6.6, V0 (UL94)
Housing Dimensions
120 x 99 x 23 mm (M2: width 46 mm)
Connector
4x4 (E), 4x7 (M2) poles screw terminals
Operating Temperature
-20°C to +60°C
Protection degree
IP20
Mounting
DIN rail (EN 50022)
Functions
Master/slave and master/master synchronization, SDD/NC modes, PT1 filter, double-gain, error/cable break monitoring
