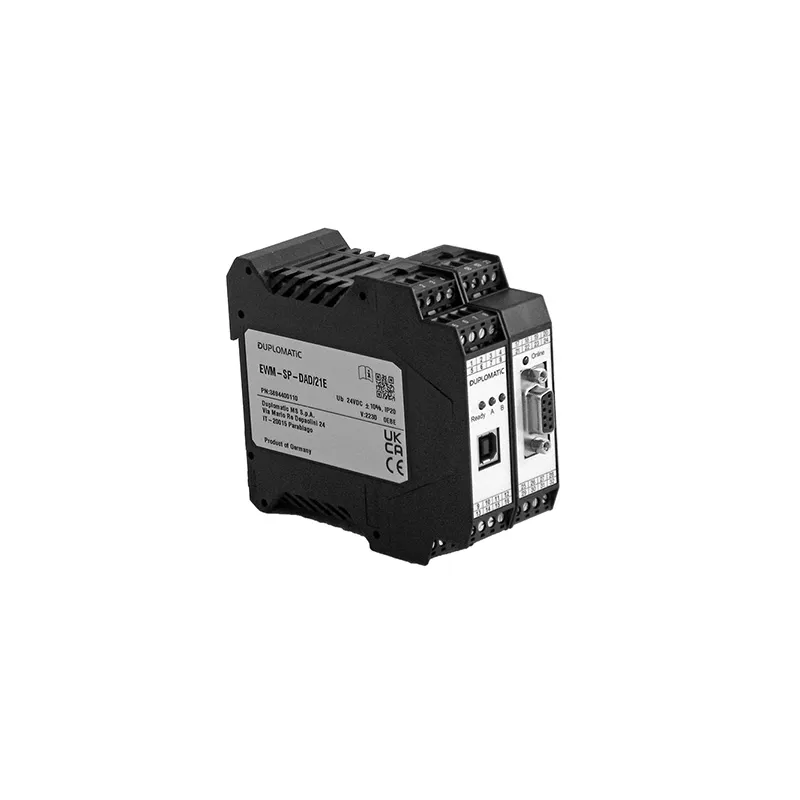

Duplomatic Axis Positioning Controller With Pressure Limitation In Closed Loop With Profibus Interface, Type EWM-SP-DAD

Brand :
Duplomatic

Axis positioning controller with pressure limitation in closed loop with Profibus interface

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The EWM-SP-DAD digital card manages the position control with pressure limitation of hydraulic actuators equipped with a digital position sensor and analog pressure sensors. This card is an axis controller with two types of position control: stroke dependent deceleration (SDD) or numerical control (NC). It communicates with the PLC via the integrated Profibus interface. The output value, voltage or current type, has to be configured via software. To configure it you need the EWMPC/20 software, which can be downloaded from this page. Connection by USB port on the front panel. Some parameters can also be configured via Profibus interface. User Manuals and descriptors files are available upon registration in the reserved area.

Key Features

• High-quality Duplomatic electronic control unit • Reliable, precise, and easy to integrate

Downloads

Datasheet_EWM-SP-DAD.pdf

pdf
Download

Specifications

Type
Axis controller card for positioning and pressure limitation (Profibus interface)
Series
21
Power Supply
24–30 V DC (ripple included)
Fuse, External
1A (medium time lag)
Current Consumption
<350 mA (plus sensor)
Command Position Input
Profibus DP
Profibus DP Rates
9.6–12000 kbit/s
Max Position Accuracy
1 µm
Position Feedback
SSI digital, 0–10 V (25 kΩ), 4–20 mA (240 Ω)
Pressure Feedback
0–10 V (25 kΩ), 4–20 mA (240 Ω)
Output Values
±10 V differential (max 10 mA), 4–20 mA (max 390 Ω)
Interface
USB-B 2.0 / Profibus
Protection degree
IP20
Operating Temperature
-20°C to +60°C
Functions
SDD/NC, PID ramps, error/cable break monitoring, status outputs
