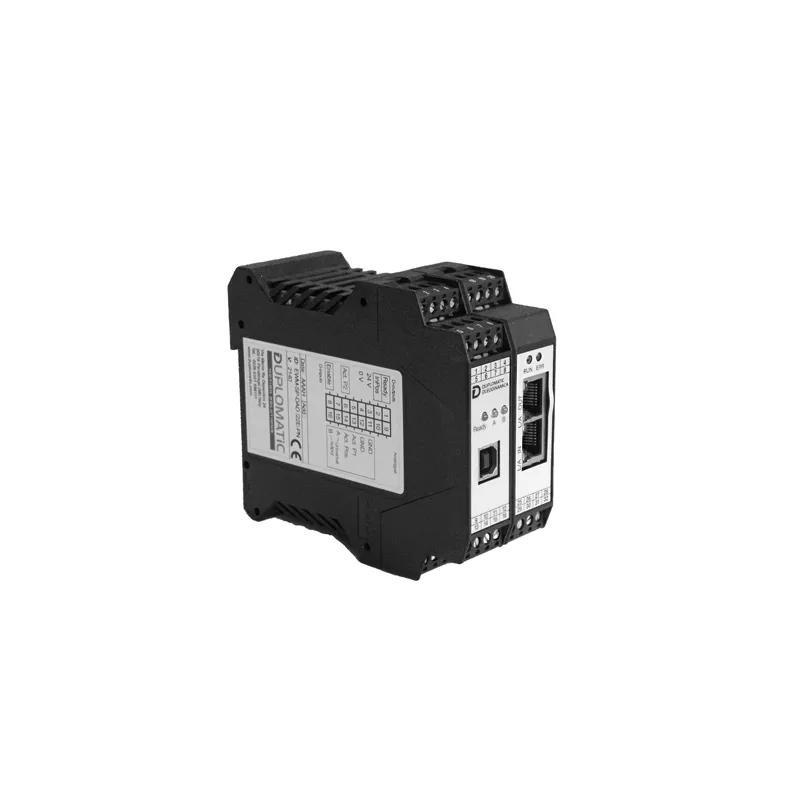

Duplomatic Axis Positioning Controller With Pressure Limitation In Closed Loop With Ethernet Interface for ProfiNET and EtherCAT fieldbus, Type EWM-SP-DAD

Brand :
Duplomatic

Axis positioning controller with pressure limitation in closed loop with Ethernet interface

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The EWM-SP-DAD digital card manages the position control with pressure limitation of hydraulic actuators equipped with a digital position sensor and analog pressure sensors. This card is an axis controller with two types of position control: stroke dependent deceleration (SDD) or numerical control (NC). It communicates with the PLC via the integrated Ethernet communication interface for ProfiNET and EtherCAT fieldbus. The output value, voltage or current type, has to be configured via software. To configure it, you need the EWM20_SmartManager software. Connection by USB port on the front panel. Some parameters can also be configured via fieldbus. Download and Documentation: Download the EWM20_SmartManager software to configure your card. Start-up manuals and descriptor files are available for download to users with provided credentials from the company. The descriptor files for previous versions are available exclusively in the reserved area. The descriptor file for previous versions in series 22 and 23 can be downloaded HERE.

Key Features

• High-quality Duplomatic electronic control unit • Reliable, precise, and easy to integrate

Downloads

Datasheet_EWM-SP-DAD PROFINET OR ETHERCAT.pdf

pdf
Download

Specifications

Type
Axis controller with pressure limitation (Profinet or EtherCAT)
Power Supply
24 V DC (±10%)
Fuse, External
1A (medium time lag)
Current Consumption
220 mA + sensors
Fieldbus
Profinet IO or EtherCAT
Controller Sampling Time
1 ms
Max Position Accuracy
1 µm
Position Feedback
SSI digital sensor, 0–10 V (min 25 kΩ), 4–20 mA (240 Ω)
Pressure Feedback
0–10 V (min 25 kΩ), 4–20 mA (240 Ω)
Output Values
±10 V differential (max 10 mA), 4–20 mA (max 390 Ω)
Interface
USB-B 2.0, 2x RJ45 Ethernet
Protection degree
IP20
Operating Temperature
-20°C to +60°C
Functions
SDD/NC, fieldbus, PID ramps, error monitoring, parameterization via fieldbus
