Duplomatic Axis Position Controller, Analogue Signals, Type EWM-S-AA

Brand :
Duplomatic

Axis position controller, analogue signals

View all
Quantity



Description
Specifications
Downloads
Related products

Description

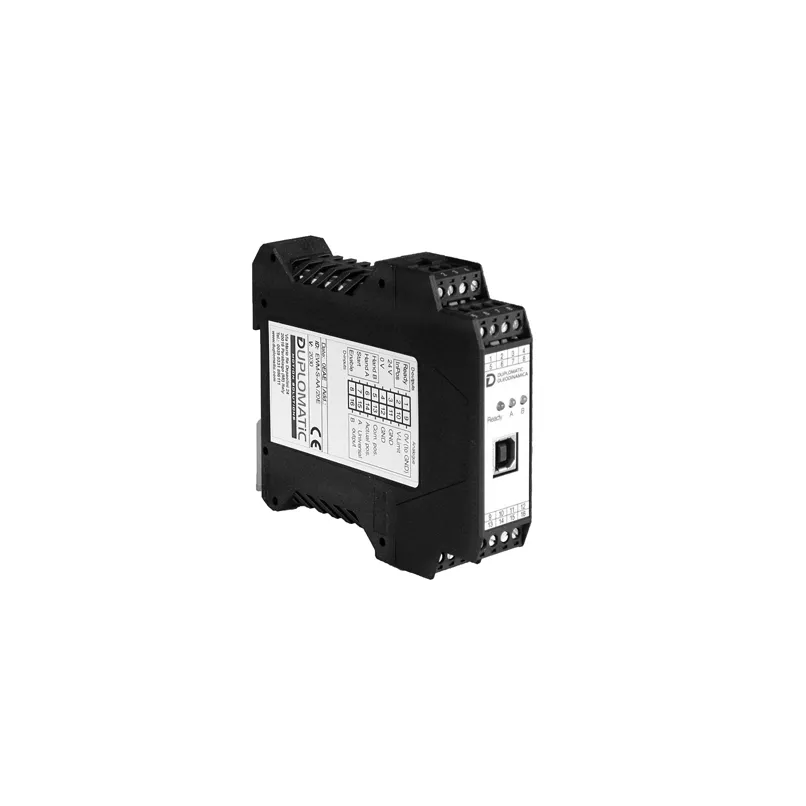

The EWM-S-AA card is designed for stroke positioning control of hydraulic actuators fitted with analog position sensors in closed loop systems. The output value, in voltage or in current, must be configured via software. An input is available for an external speed command. To configure it you need the EWMPC/20 software, which can be downloaded from this page. Connection with USB port on the front panel. User Manuals are available upon registration in the reserved area.

Key Features

• Analogue controller for axis synchronization • Simple wiring and setup • Accurate position control in closed loop

Downloads

Datasheet_EWM-S-AA.pdf

pdf

Specifications

Type
Synchronization controller with analogue signals
Series
21
Power Supply
12–30 V DC (external fuse 1 A, 3 A for M2)
Current Consumption
<100 mA (E versions); 60 W (M2 version)
Command Value
0–10 V (25 kΩ), 4–20 mA (240 Ω)
Position Input Resolution
0.003%, 1 μm max
Speed Input
0–10 V (90 kΩ), 4–20 mA (240 Ω)
Feedback Value
0–10 V (25 kΩ), 4–20 mA (240 Ω)
Output Value
±10 V (10 mA max), 4–20 mA (390 Ω), M2: 0.5–2.6 A stepless
Interface
USB-B 2.0
Dimensions
120 x 99 x 23 mm (M2: width 46 mm)
Protection degree
IP20
Operating Temperature
-20°C to +60°C
Mounting
DIN EN 50022 rail
Functions
Master-slave and master-master synchronization, SDD and NC modes, PT1 filter, in-position error monitoring, short-circuit & cable break protection
Outputs
Status & ready digital outputs (LEDs), analogue output scalable via software
