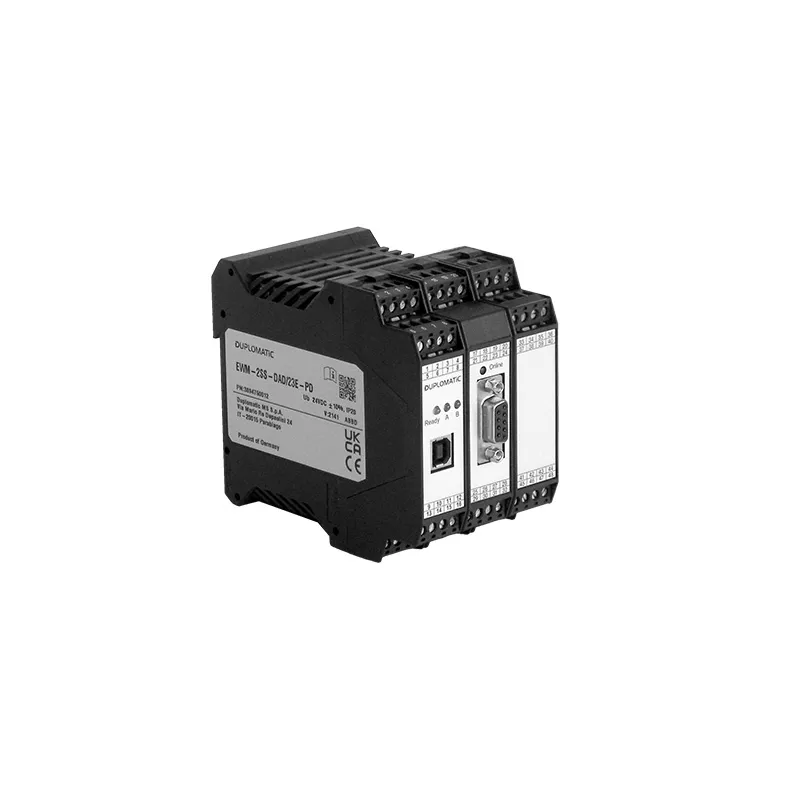

Duplomatic 2-Axes Synchronization Or Independent Positioning Controller With Fieldbus Interface, Type EWM-2SS-DAD

Brand :
Duplomatic

2-axes synchronization or independent positioning controller with Fieldbus interface

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The EWM-2SS-DAD Ethernet card is an advanced solution for the precise control of two proportional valves, ideal for industrial applications that require position control of hydraulic actuators. It supports both synchronous and independent position control and is compatible with both analog and digital position sensors. Main Features: Flexible proportional valve control: allows for the simultaneous and precise control of up to two valves. Fieldbus compatibility: available in three versions for EtherCAT, ProfiNET, and PROFIBUS DP fieldbuses, enabling easy integration into automated systems. Integrated Ethernet interface module: the card is equipped with an integrated PLC Ethernet interface, enabling fast and reliable communication. Software configuration: the output value (voltage or current) can be easily configured via the EWM20_SmartManager software, available for download on this page. USB connection: the card features a USB port for direct connection, making configuration and maintenance simple. Applications: The EWM-2SS-DAD card is ideal for applications that require precise control of hydraulic actuators, such as in the fields of industrial robotics, automation, and process control. Its compatibility with various communication protocols makes it particularly versatile for integration into existing systems. Download and Documentation: Download the EWM20_SmartManager software to configure your card. Start-up manuals and descriptor files are available for download to users with provided credentials from the company. The descriptor files for previous versions are available exclusively in the reserved area. The descriptor file for previous versions in series 22 and 23 can be downloaded HERE.

Key Features

• Dual-axis controller for precise position management • Supports multiple fieldbus protocols • Integrated diagnostic and safety features

Downloads

Datasheet_EWM-2SS-DAD.pdf

pdf
Download

Specifications

Type
2-axis position controller with fieldbus interface (closed-loop)
Power Supply
24 V DC (±10%)
Fuse, External
1 A (medium time lag)
Current Consumption
500 mA
Command Position Input
Fieldbus (ProfiNet, EtherCAT, Profibus DP)
Feedback Position Values
SSI digital sensor, 4–20 mA (240 Ω), 0–10 V (≥25 kΩ)
Output Values
±10 V differential (max load 10 mA), 4–20 mA (max load 390 Ω)
Sampling Time
1 ms
Max Position Accuracy
1 μm
Resolution Output
0.007%
Interface
USB-B 2.0, fast Ethernet, Profibus
Housing material
PA6.6, V0 (UL94)
Protection degree
IP20
Operating Temperature
-20°C to +60°C
Functions
Synchronized/independent positioning, 2 control methods (SDD & NC), advanced deadband compensation, emergency function, diagnostic LEDs
