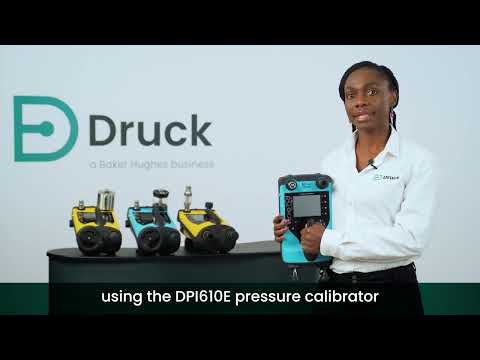

Druck DPI610E Series Handheld Pressure Calibrator

Brand :
Druck

The DPI610E handheld pressure calibrator is the latest and the sixth generation of the DPI600 family. Capable of measuring pneumatic pressures from 95% vacuum to 500psi (35bar) and hydraulic pressures up to 15,000psi 1,000bar).

Druck was initially part of GE Sensing under General Electric. Later, it became part of Baker Hughes and is now rebranded and operates under its original name "Druck".

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Druck DPI610E Pressure Calibrator is the latest addition to Druck’s proven DPI600 Series. It combines effortless pressure measurement and generation, signal measurement and loop power with significantly improved pump capabilities and a powerful touch and button user interface. The “iconic Druck” design of the DPI610E has been engineered for instrument technicians, using input from those working in the field. Using Druck’s in-house sensor technology, the DPI610E offers total 1 year uncertainty down to 0.025% FS over a wide temperature range. Available in commercial and intrinsically safe versions, the Druck DPI610E Series Handheld Pressure Calibrator is an ideal solution for your test and calibration applications.

Features

Druck DPI610E retains the iconic handle, the ease of use, and the robust, reliable design of the legacy DPI601/605/610/615 units but offers new functionality

• The complete pressure calibration tool provides expanded pressure ranges

• Vacuum to 35 bar/500 psi/3.5 MPa pneumatic pressures with inbuilt barometer for accurate pseudo pressure measurements

• Up to 1000 bar/15000 psi/100 MPa hydraulic pressures

• An internal barometer with barometer port for easy calibration

• A fast response touchscreen display with a high contrast, backlit display

• USB port for transferring data or performing firmware upgrades

• Enhanced battery life with over 60 hours continual use from a single, 2 hour charge

• Easy to use interface with touchscreen and/or button navigation

• Basic HART functionality included

• Free 4Sight2 Calibration Software included

Downloads

Druck DPI 610E.pdf

pdf
Download

Druck-DPI610E-pressure-calibrator-manual_2.pdf

pdf
Download

165M0437_DPI610E_QSS_Manual_Rev_D.pdf

pdf
Download

Druck DPI610E Software Release Note EUSRN_169M2231_CDG_000_00.pdf

pdf
Download

Specifications

Pressure Range (Pneumatic)
Vacuum to 35 bar (500 psi / 3.5 MPa)
Pressure Range (Hydraulic)
Up to 1000 bar (15000 psi / 100 MPa)
Accuracy
0.025% Full Scale (FS) over -10°C to +50°C
Display
112mm (4.4in) LCD, 320 x 240 pixels, backlit high-contrast
Operating Temperature
-10°C to +50°C (14°F to 122°F)
Storage Temperature
-20°C to +70°C (-4°F to 158°F)
Weight (Pneumatic)
3.6 kg (8 lbs) including battery
Weight (Hydraulic)
4.4 kg (10 lbs) including battery
Battery Life
Up to 90 hours (varies based on mode)
Ingress Protection
IP54 (protected against dust and splashing water)
Pressure Media
Gases compatible with aluminum, brass, stainless steel, nitrile, and polyurethane
Connectivity
USB client, Bluetooth (optional)

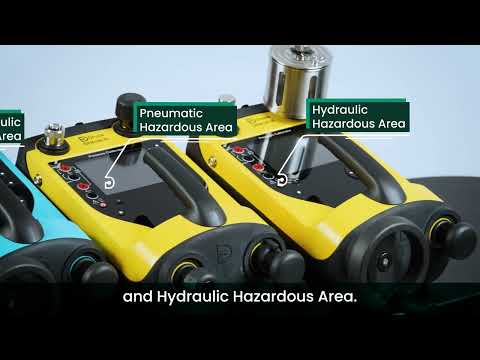

Hazardous Area Approval
ATEX, IECEx, UKEX to EN60079-11:2012
Calibration Certificates
Electrical and Pressure calibration certificates supplied
Pressure Units
mbar, bar, Pa, hPa, kPa, MPa, mmHg, cmHg, inHg, psi, kg/cm², mmH₂O, cmH₂O, mH₂O, torr, atm, lb/ft², custom units
Pressure Generation
Integrated pump with fine control, generating pneumatic pressures from -0.95 bar to 35 bar and hydraulic pressures up to 1000 bar.
Electrical Measurement
Voltage (+/-200 mV to +/-30 V), Current (+/-20 mA to +/-55 mA)
Data Logging
100,000+ data points, multiple-channel logging
Certifications
CE marked, UKCA marked
