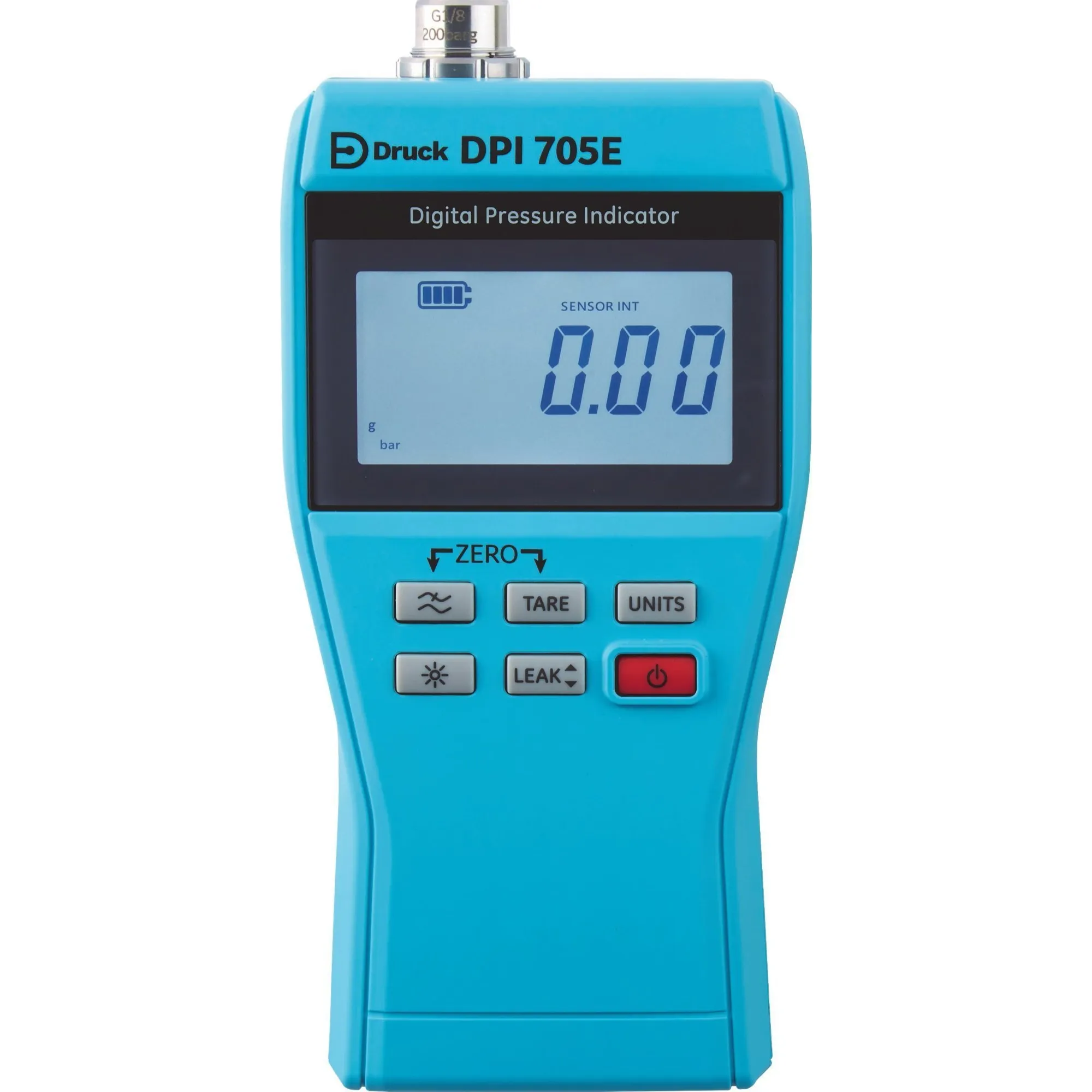

Druck DPI 705E Model Safe Area Handheld Pressure Indicator

Brand :
Druck

The Druck DPI705E Series of handheld pressure and optional temperature indicators combine tough and rugged design with accurate and reliable measurements. The DPI705E is an effective indicator that improves test efficiency. With a compact and robust design, the DPI705E Series is ideal for single handed operation in the field

Druck was initially part of GE Sensing under General Electric. Later, it became part of Baker Hughes and is now rebranded and operates under its original name "Druck".

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Druck DPI 705E Handheld Pressure Indicators combine tough and rugged design with accurate and reliable measurements, and are designed for single handed operation and provides many essential features required for routine maintenance and system troubleshooting. In addition to the internal pressure sensor available with pressure ranges from 25 mbar to 700 bar, a connection port is provided for external Plug and Play sensors. The 705E features 48 pressure ranges from ±1.69 psi to 20,000 psi (±25 mbar to 1,400 bar / 2.5 KPa to 140 MPa). The leak test is used to determine if there is a leak in the system by recording the pressure change over of time. The leak test can also be used with the RTD sensor to record a temperature change over time. It is user defined as 1, 3 or minute test.

Features

• 48 pressure ranges from ±25 mbar to 1,400 bar (±1.69 psi to 20,000 psi / 2.5 KPa to 140 MPa)

• Total 1 year uncertainty down to 0.05% full scale (FS) over temperature range of -10°C to +50°C

• Integral calibration record with calibration due count-down display

• Rugged, handheld design with backlit high-contrast display

• Leak test, tare, maximum/minimum and filter

• Hazardous Area (Intrinsically safe) version available

• Optional remote plug and play pressure and Resistance Temperature Detector (RTD) sensors

• Optional pneumatic and hydraulic hand pumps

Downloads

Druck DPI 705E-IS.pdf

pdf
Download

DPI705E_User_Manual_-_137M7122_en-US.pdf

pdf
Download

DPI705E_Quick_Start_and_Safety_Manual_135M6581_-_Multilingual.pdf

pdf
Download

Specifications

Model Type
Safe Area pressure indicator
Pressure Ranges
41 ranges from ±25 mbar to 1400 bar (±10 inH₂O to 20,000 psi)
Accuracy
Up to 0.025% FS over -10°C to +50°C
Pressure Units
20 units including mbar, bar, psi, Pa, and more
Display
16mm high-contrast LCD with backlight, ±99999 readout
Operating Temperature
-10°C to +50°C (14°F to 122°F)
Battery Life
8 hours/day for 6 days/week, up to 1 year with 4 x AA cells
Ingress Protection
IP54 (dust and splash resistant)
Certifications
ATEX, IECEx, UKEX, CSA, NEPSI, ECASEx, INMETRO
Applications
Routine maintenance, system troubleshooting, calibration
Special Features
Leak test, maximum/minimum capture, tare, alarms, calibration reminders, and plug-and-play remote sensors.
Media Compatibility
Sensors compatible with non-condensing gases, stainless steel, Inconel, and Hastelloy materials.
Connectivity
Supports remote pressure sensors via PM700E external sensors
Weight
563 g (1.24 lbs)
Resolution
5 digits
