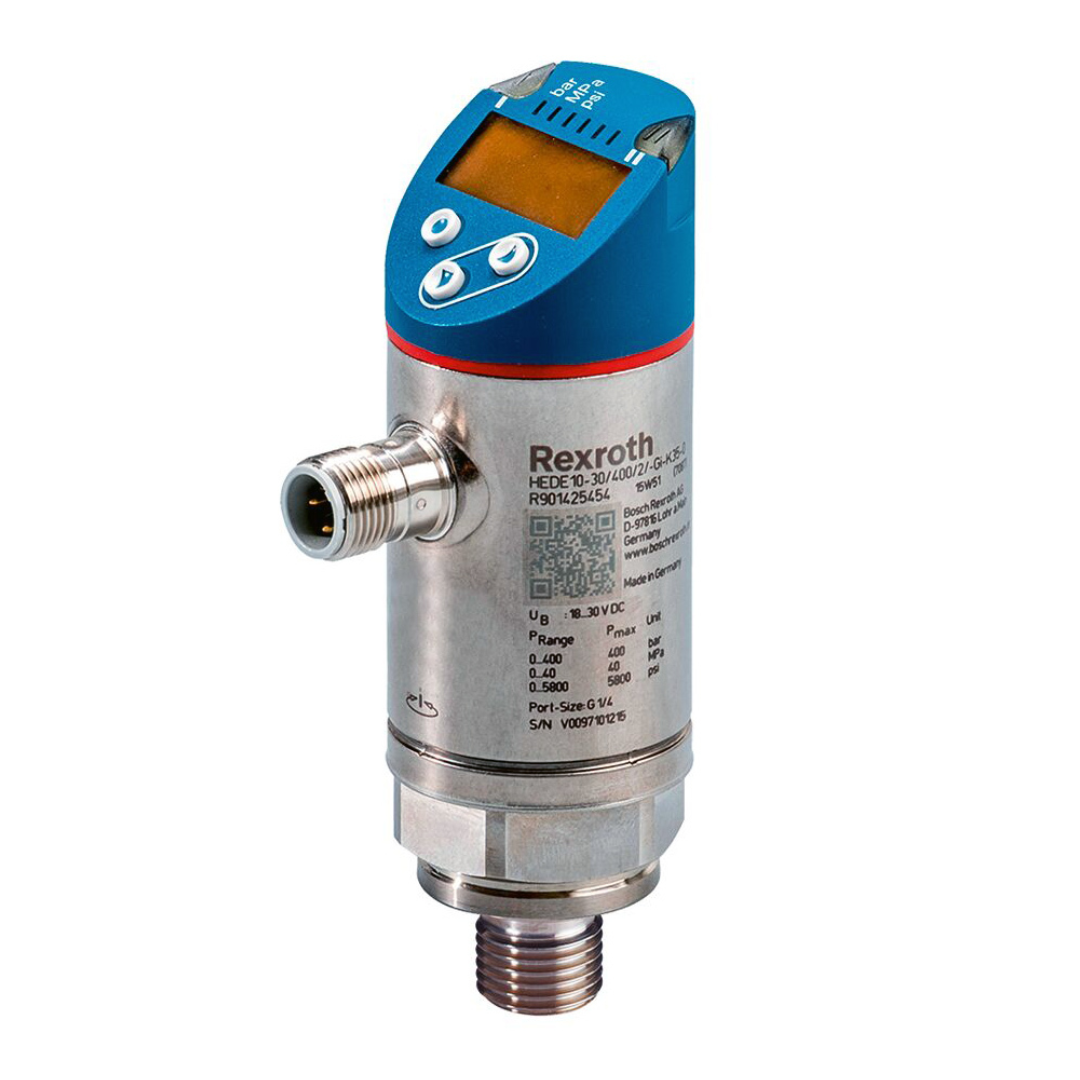

Bosch Rexroth Hydro-Electric Pressure Switch Type HEDE10, 3X Series, 0...400 Bar with 4-digit LED with 2-button Programming, 0...10 V /4...20 mA, 1 Switching and 1 Analog Output, G1/4 Male Thread, M12x1 A-coded 4-Pin Connnector, FKM Seal, IO-Link, HEDE10-3X/400/1/-GA-K35-V (R901433084)

Part Number : HEDE10-3X/400/1/-GA-K35-V (R901433084)

Brand :
Bosch Rexroth

Bosch Bosch Rexroth electronic pressure switch HEDE10-3X/400/1/-GA-K35-V(R901433084) with 400 Bar range, thin-film sensor, analog + switch output, IP67 housing, M12 4-pin, and G1/4 male connection.

This model is the updated replacement for the older discontinued model R900773025 (HEDE10A1–1X/400K41G24/V), offering the same connection and functionality with enhanced features.

View all

KWD 146.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Bosch Bosch Rexroth HEDE10-3X/400/1/-GA-K35-V R901433084 is a high-precision electronic pressure switch featuring a thin-film sensor element, designed for 0–400 Bar hydraulic applications. Equipped with one analog output (0–10 V or 4–20 mA) and one switching output (SPDT, max 250 mA), it ensures reliable pressure monitoring in industrial systems. The unit offers a G1/4 male process connection, 4-pin M12 A-coded electrical connector, and an integrated digital display with two-button configuration. Additional IO-Link v1.1 capability enables advanced diagnostics and remote setup. The sensor supports IP67-rated protection, stainless steel construction, and is compatible with standard hydraulic fluids.

Features

• Suitable for measuring pressures in hydraulic systems as well as for transforming the measured values into electronic signal values

• Sensor thin film measuring cell

• Connection cable with 4-pole M12 connector on the housing

• Accuracy class 1.0

• Male thread or internal thread G1/4''

• Components in contact with the media made of stainless steel and FKM

• Compact design

• One switching output and one analog output or two switching outputs

• IO link V1.1

Downloads

Datasheet Rexroth R901433084.pdf

pdf
Download

Manual R901433084.pdf

pdf
Download

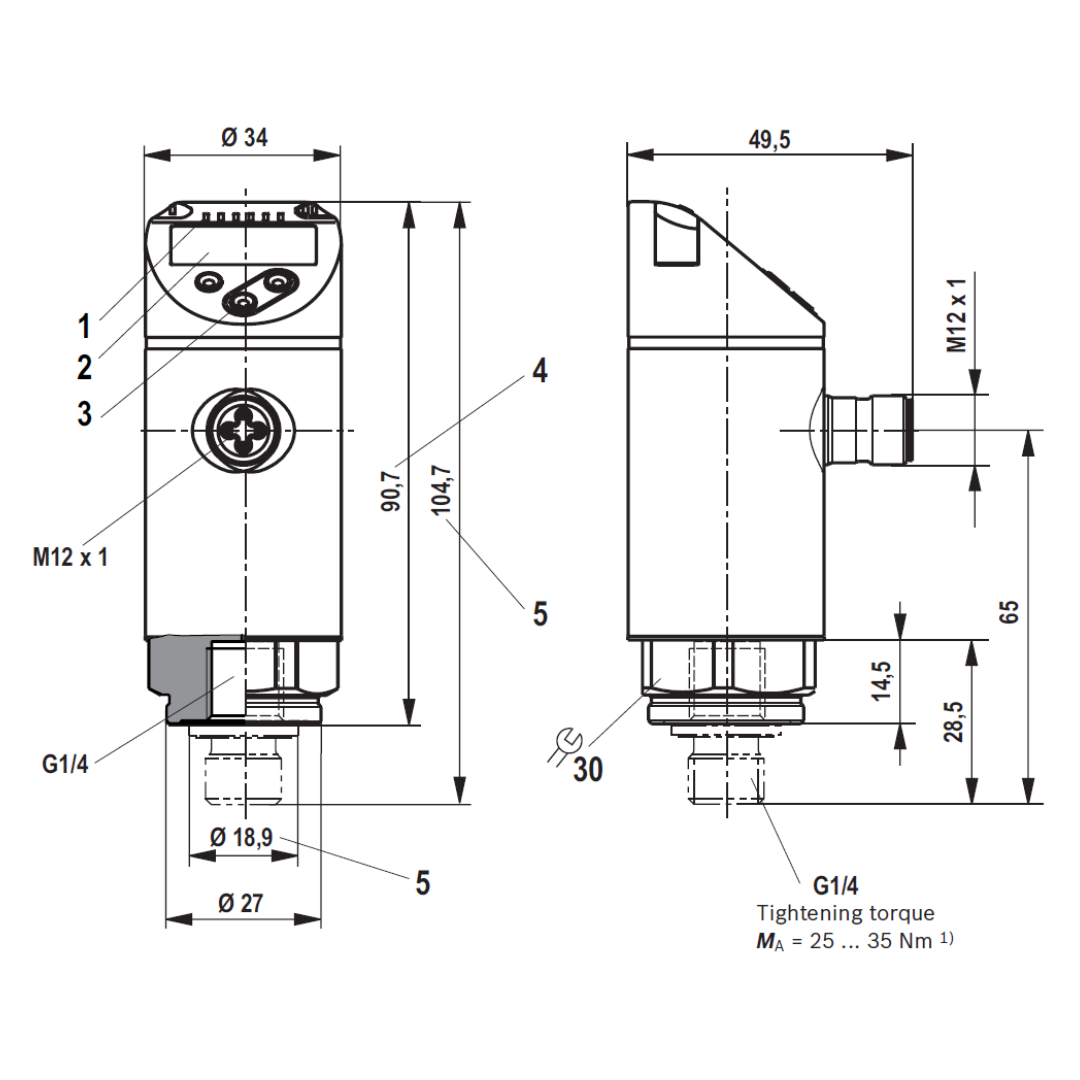

Specifications

Pressure Range
0–400 bar
Max Operating Pressure
600 bar
Burst Pressure
1000 bar
Sensor Type
Thin-film ceramic
Analog Output
0–10 V (≥2 kΩ) or 4–20 mA ((Ub–10)/50 Ω)
Switching Output
1 x SPDT relay, max 250 mA, ≤170 Hz
Supply Voltage
18–36 V DC

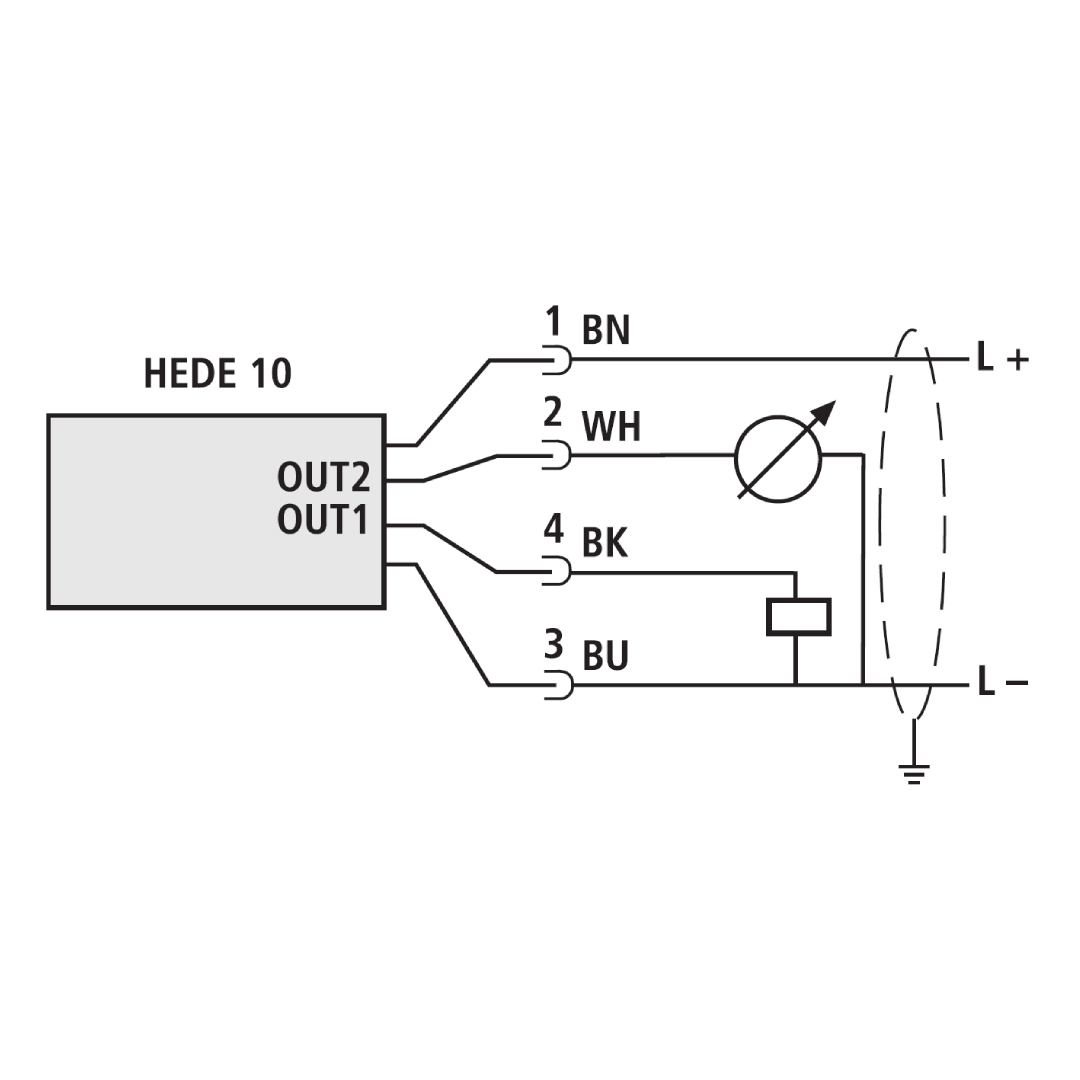

Electrical Connector
M12x1, 4-pin, A-coded
Process Connection
G1/4 male thread (GA)
Display
4-digit LED with 2-button programming
IO-Link
Supported, v1.1
Ingress Protection
IP67
Housing material
Stainless steel
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
FKM
Mounting position
Any
Medium Temperature
-25°C to +80°C
Ambient temperature
-20°C to +80°C
Storage Temperature
-40°C to +100°C
Response Time
<3 ms
Damping Range
0–4 s
Accuracy
±1% of full scale
Repeatability
≤0.1% FS
Hysteresis
Adjustable
Overvoltage Protection
Integrated
Short-circuit protection
Yes
Switching Frequency
≤170 Hz
Output configuration
1 analog + 1 switch
EMC Compliance
EN 61000-4-2/3/4/5/6
Fluid compatibility
HL, HLP, HFC, HETG, HEES, HFD
Weight
~0.26 kg
