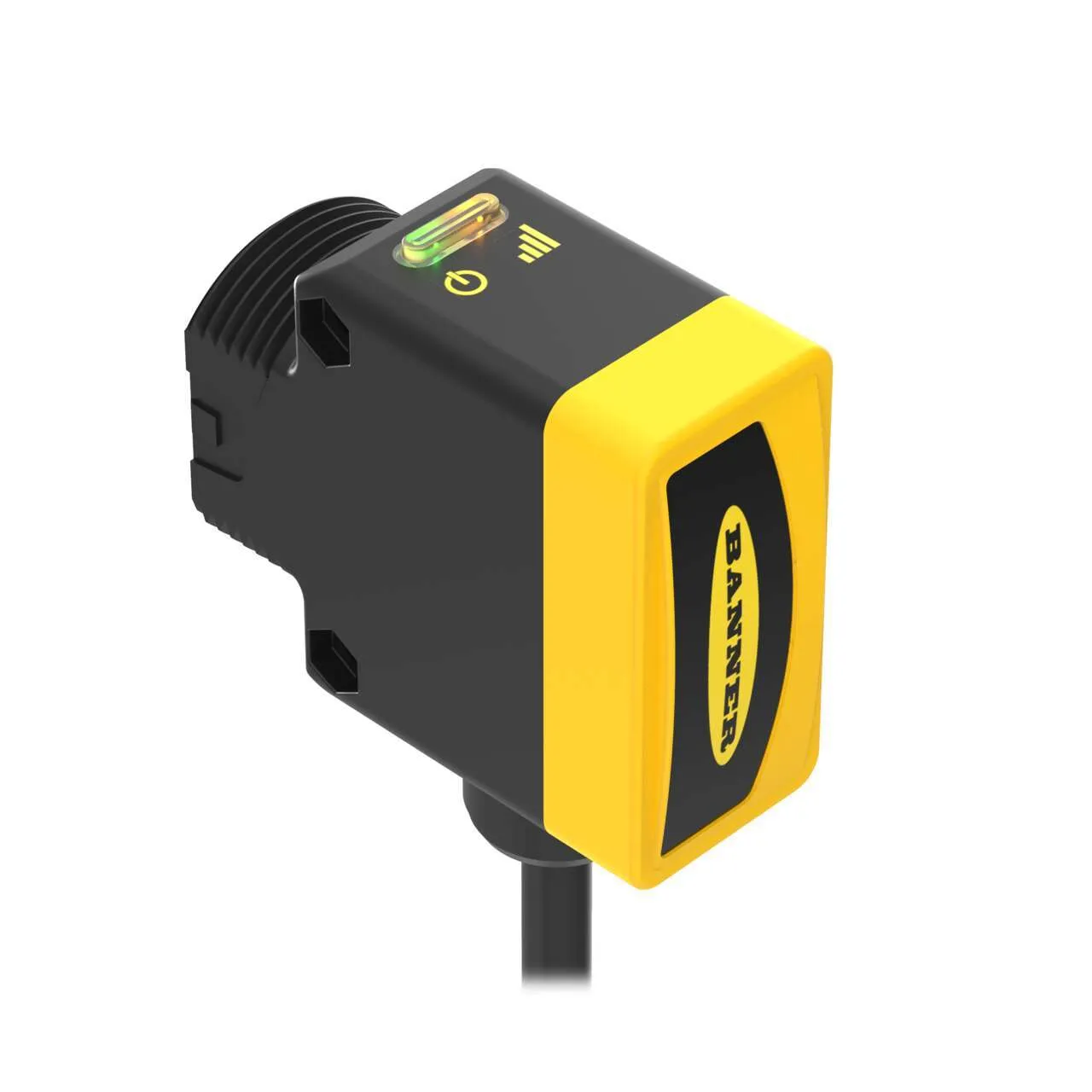

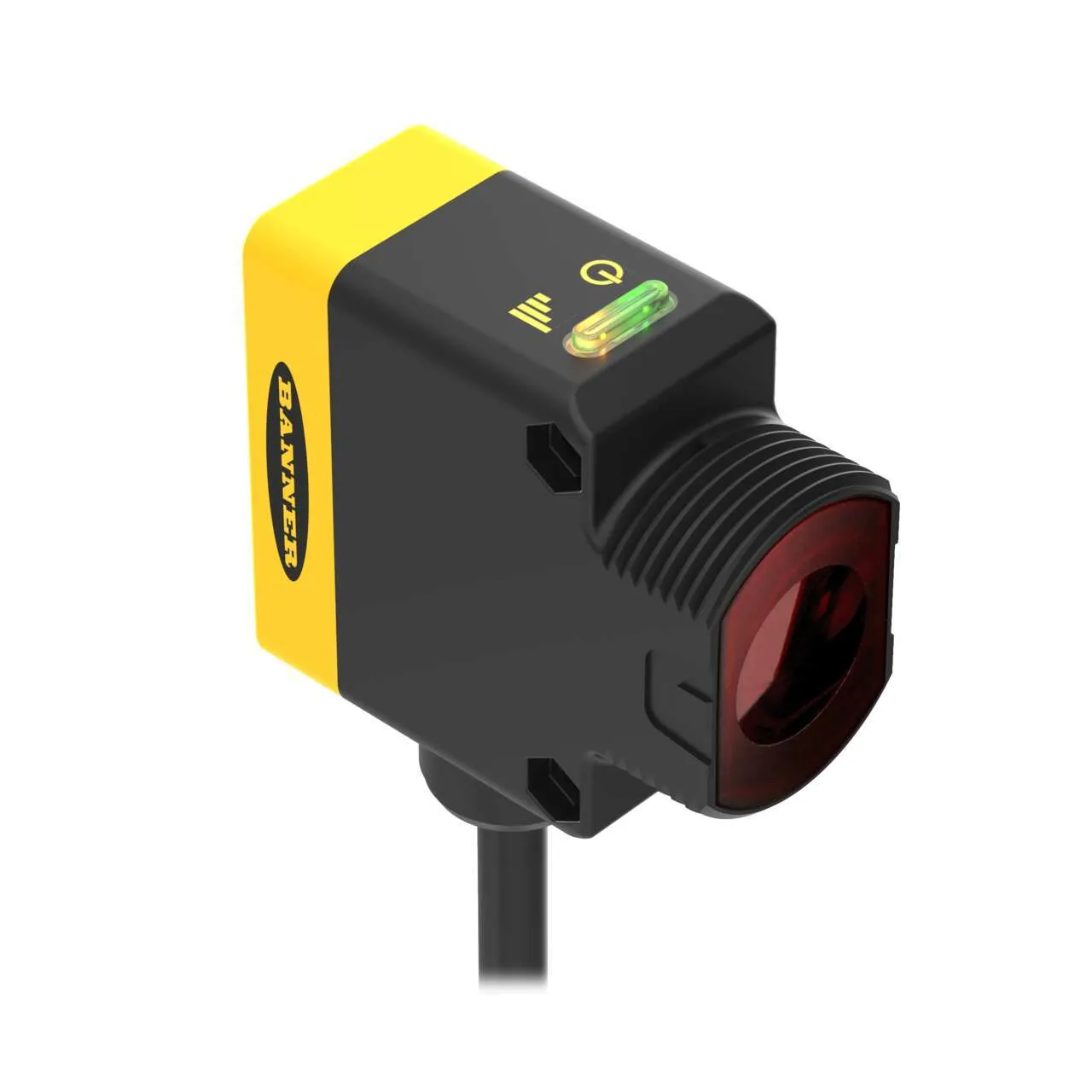

Banner QS30 Series High-Performance Long-Range Sensor, World-Beam, High-Powered Receiver water detection Range 8 m, Input 10-30V DC, Output LO (Light Operate) Bipolar 1 NPN, 1 PNP 150 mm (6 in) 5-pin M12 Pigtail QD PVC Connector, QS30ARXSH2OQ5

Part Number : QS30ARXSH2OQ5

Brand :
Banner

The Banner QS30ARXSH2OQ5 High-Performance Long-Range Sensor from the WORLD-BEAM QS30 Series is a high-powered receiver designed for precise water detection up to 8 meters. It features a robust IP67 rating and offers both NPN and PNP outputs with a 5-pin M12 Pigtail QD connector.

View all

KWD 79.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner QS30ARXSH2OQ5 High-Performance Long-Range Sensor is part of the advanced WORLD-BEAM QS30 Series, tailored for reliable water detection applications. With a high-powered receiver, this sensor boasts an impressive sensing range of up to 8 meters. It operates on a 10-30 V dc power supply and delivers flexible output options with both NPN and PNP configurations, ensuring compatibility with various industrial systems. The sensor features a Light Operate (LO) mode and is equipped with a 150 mm (6 in) 5-pin M12 Pigtail QD PVC connector for easy and secure installations. Engineered for durability, the QS30ARXSH2OQ5 is rated IP67, making it suitable for challenging environments where resistance to dust and water is essential. Its quick disconnect feature facilitates swift maintenance and replacement, minimizing downtime. This sensor is an ideal choice for applications requiring reliable water presence detection, supported by its robust construction and precise performance capabilities.

High-Performance Sensing

Discover the power of precision with the Banner QS30ARXSH2OQ5 High-Performance Long-Range Sensor from the WORLD-BEAM QS30 Series. Designed specifically for high-powered water detection, this High-Performance Long-Range Sensor offers an impressive sensing range of up to 8 meters. With its robust IP67 rating, this sensor is built to withstand harsh environments and maintain optimal performance. Its advanced Light Operate (LO) Bipolar output provides both NPN and PNP configurations, ensuring seamless integration into your system. Ideal for industrial applications requiring reliable and accurate water detection.

Durable Industrial Sensors

The Banner QS30ARXSH2OQ5 is engineered for durability and ease of use, featuring a 150 mm (6 in) 5-pin M12 Pigtail QD PVC Connector. This quick disconnect type ensures fast and secure connections, reducing downtime and maintenance efforts. Its operating voltage range of 10-30 V dc makes it compatible with a wide array of industrial power supplies. The sensor’s rugged construction and high-quality materials guarantee long-lasting performance, even in challenging conditions. Equip your facility with a sensor that promises both reliability and simplicity in setup and operation.

Enhanced Sensor Performance

Elevate your sensing capabilities with the Banner QS30ARXSH2OQ5 High-Performance Long-Range Sensor, designed for superior performance and efficiency. The sensor's innovative design includes an opposed mode emitter/receiver, providing precise and repeatable measurements that enhance operational efficiency. With an IP67 rating and washdown capability, this sensor is perfect for environments where cleanliness and reliability are paramount. Its fast output response time and repeatability ensure accurate water detection, making it an essential tool for industries where precision is key. Trust the Banner QS30ARXSH2OQ5 to deliver exceptional results for your most demanding applications.

Downloads

QS30 Universal Voltage Series Product Manual.pdf

pdf
Download

QS30ELVC Series Clear Object Retroreflective Sensor.pdf

pdf
Download

WORLD-BEAM QS30 Laser Retroreflective Series.pdf

pdf
Download

WORLD-BEAM QS30 Standard Series, DC Models Instruction Manual.pdf

pdf
Download

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Long Infrared (Water Detection)
Cable Length (m)
0.15
Power
DC
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Receiver
Housing Style
Rectangular w/M30 Mount
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
8000
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light Operate
Max Op. Temp. (°C)
60
Output response time (ms)
10
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
Yes
Delay at Power-up (ms)
100
Repeatability (µs)
5000
Number of Pins
5
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Barrel Diameter (mm)
30
Indicator
Bargraph
Opposed Mode Emitter/Receiver
Receiver
Feature: Washdown Rated
Yes
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
