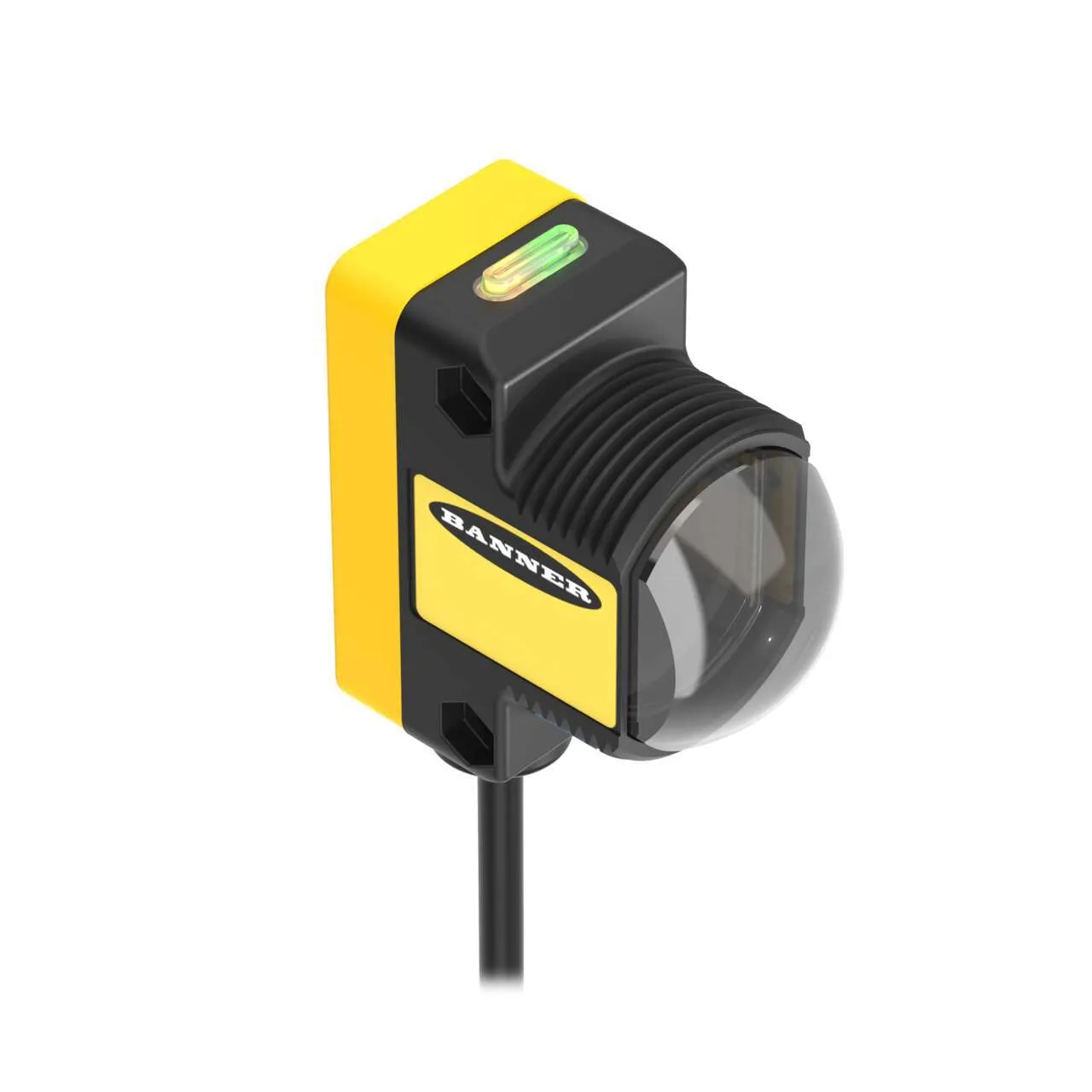

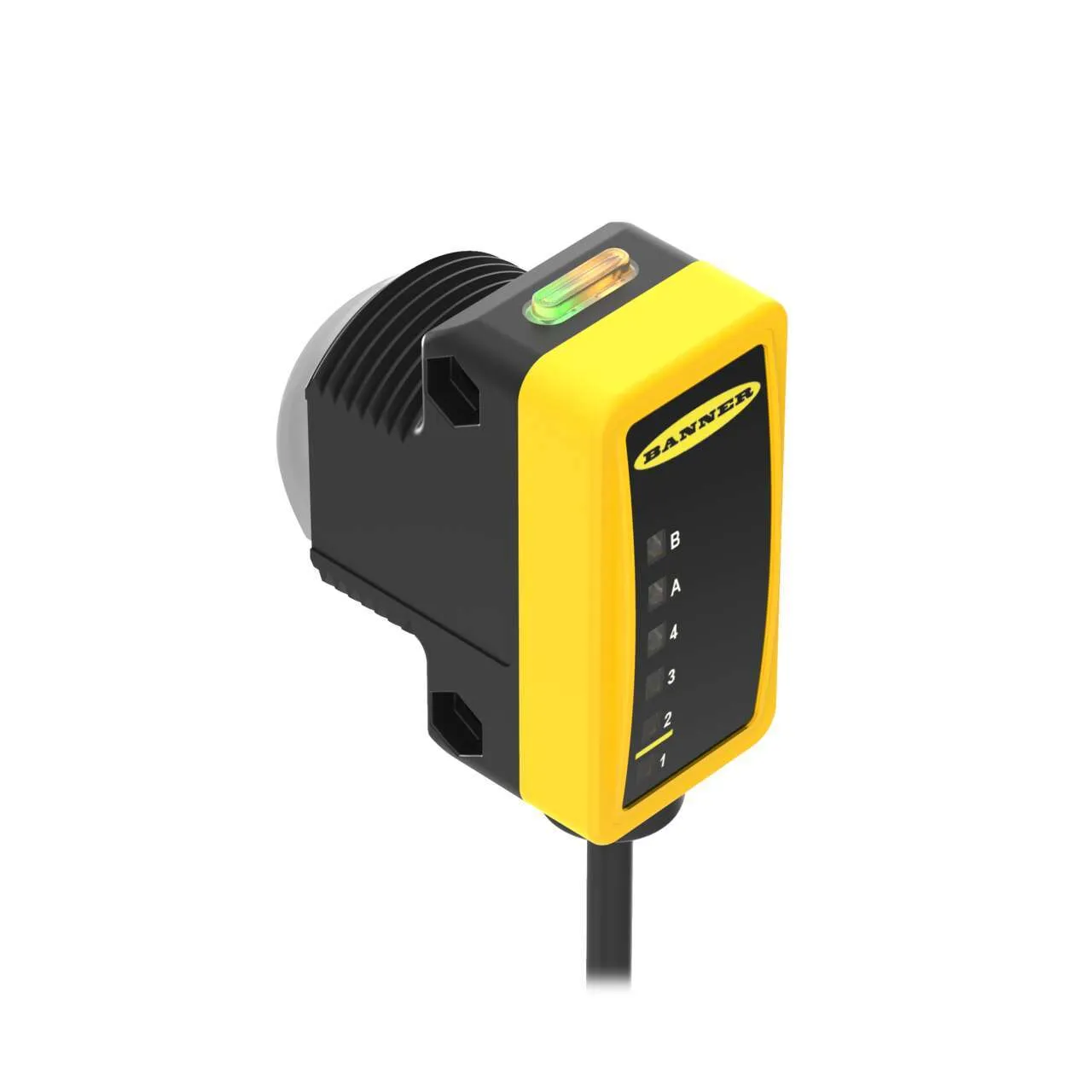

Banner QS30 Series High-Performance Long-Range Sensor, World-Beam, High-Powered Receiver Range 213 m, Input 10-30V DC, Output LO (Light Operate) Bipolar 1 NPN, 1 PNP 5-pin M12 Integral QD (Car Wash), QS30ARXQ
.webp)
.webp)
.webp)
Part Number : QS30ARXQ
Brand :
![Banner]()
The Banner QS30ARXQ High-Performance Long-Range Sensor is a high-powered receiver from the WORLD-BEAM QS30 Series, designed for robust performance in harsh environments. With a sensing range of up to 213 meters, this sensor operates in a light-operate mode and features a bipolar output with both NPN and PNP configurations. Perfect for demanding applications like car washes, it offers an IP69K rating for superior protection against water and dust.
View all
KWD 54.000
Quantity
Description
Specifications
Downloads
Related
products
Description
The Banner QS30ARXQ High-Performance Long-Range Sensor from the WORLD-BEAM QS30 Series is engineered for high-performance sensing in rigorous environments. With a powerful receiver capable of detecting objects up to 213 meters away, this sensor excels in applications that require reliable long-range detection. Its 10-30 V dc power input and light-operate (LO) mode ensure efficient and precise operation. The sensor features bipolar outputs, providing both NPN and PNP options, and is equipped with a 5-pin M12 Integral QD for secure and versatile connectivity. Tailored for industrial applications such as car washes, the QS30ARXQ boasts an IP69K rating, offering exceptional protection against high-pressure water jets and dust ingress. Its durable construction and washdown-rated design make it ideal for use in environments where exposure to moisture and contaminants is frequent. The sensor's robust housing and encapsulated design further enhance its durability, ensuring long-term performance in challenging conditions. Additionally, the QS30ARXQ supports quick disconnect functionality, facilitating easy installation and maintenance. With a response time of just a few milliseconds, it provides fast and accurate detection, making it a reliable choice for automation systems. Whether for detecting vehicles in a car wash or monitoring objects in industrial settings, the Banner QS30ARXQ High-Performance Long-Range Sensor delivers unmatched reliability and efficiency.
High-Performance Sensing
The Banner QS30ARXQ High-Performance Long-Range Sensor from the WORLD-BEAM QS30 Series is engineered to withstand the harshest environments with its superior IP69K rating. This high-powered receiver is specifically designed for demanding applications, such as car washes, where water and dust protection are paramount. The sensor's robust construction ensures reliable performance even in high-pressure washdowns, making it an ideal choice for industries requiring durable and resilient sensors. With this High-Performance Long-Range Sensor, you can trust in its longevity and dependability, knowing it meets the rigorous standards of both NEMA and UL Type ratings. --Durable Industrial Sensors
Equipped with cutting-edge sensing technology, the Banner QS30ARXQ High-Performance Long-Range Sensor offers a broad sensing range of up to 213 meters, providing precise detection capabilities for various applications. The sensor operates with a light operate (LO) mode and features both NPN and PNP outputs, ensuring versatility and compatibility with different control systems. Its innovative design includes a 5-pin M12 integral quick disconnect (QD), facilitating easy installation and maintenance. Additionally, the sensor’s advanced sensing beam and wavelength technology ensure accurate and repeatable performance, making it a reliable choice for high-precision tasks. --Enhanced Sensor Performance
The Banner QS30ARXQ High-Performance Long-Range Sensor delivers exceptional performance in extreme conditions, thanks to its wide operating temperature range and robust design. With a power input of 10-30 V dc, the sensor is versatile enough to integrate into various systems. It features a fast output response time and high repeatability, ensuring quick and reliable detection. The sensor's encapsulated housing and washdown-rated features provide added protection and durability, making it suitable for applications where environmental conditions are challenging. Whether you need it for industrial automation or environmental sensing, this High-Performance Long-Range Sensor is built to deliver consistent and dependable results. --Specifications
IP Rating
IP69K
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Infrared LED
Power
DC
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Receiver
Housing Style
Rectangular w/M30 Mount
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
213000
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light Operate
Max Op. Temp. (°C)
70
Output response time (ms)
5
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
875
Delay at Power-up (ms)
100
Repeatability (µs)
5000
Number of Pins
5
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Zeonex
Barrel Diameter (mm)
30
Indicator
Bargraph
Opposed Mode Emitter/Receiver
Receiver
Feature: Washdown Rated
Yes
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
