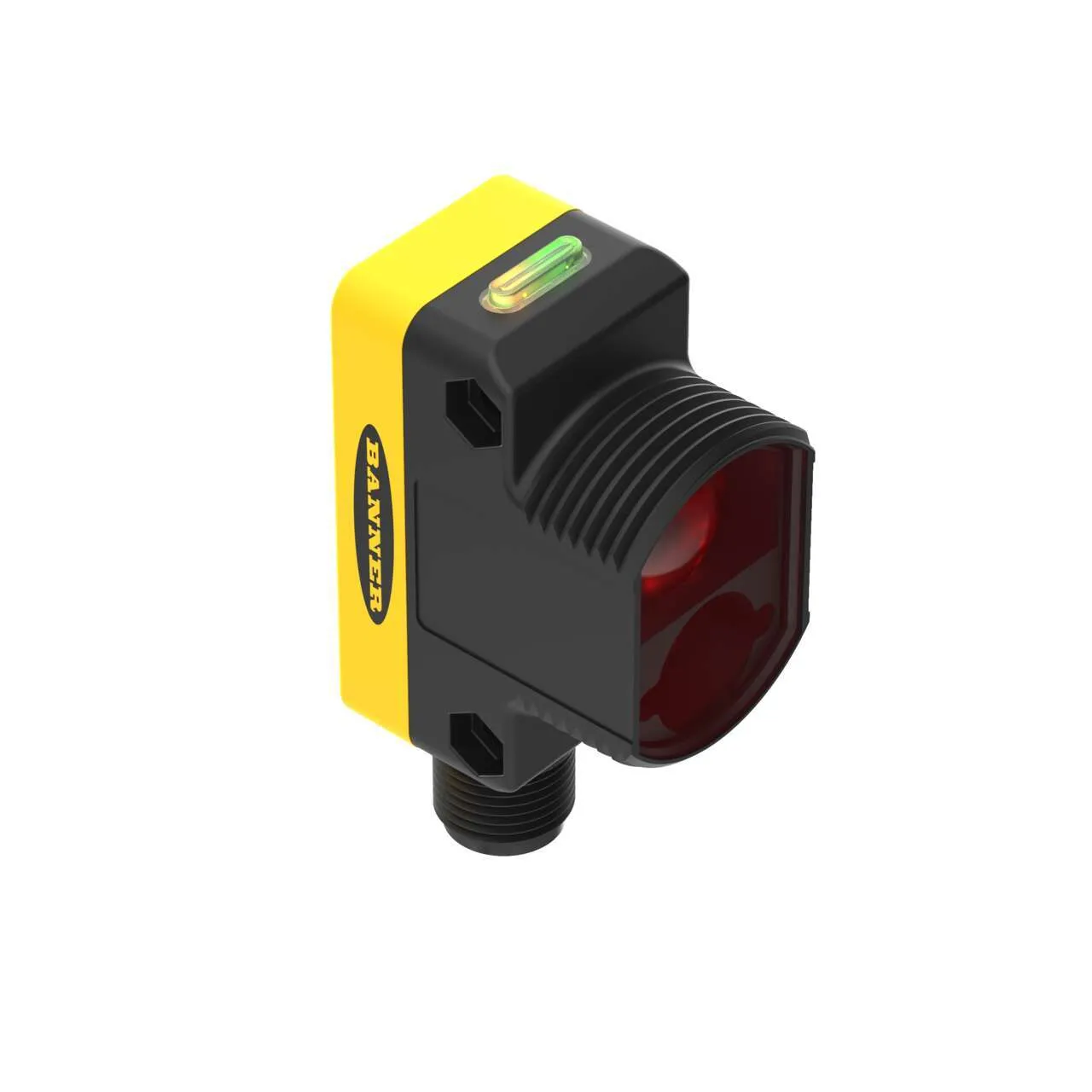

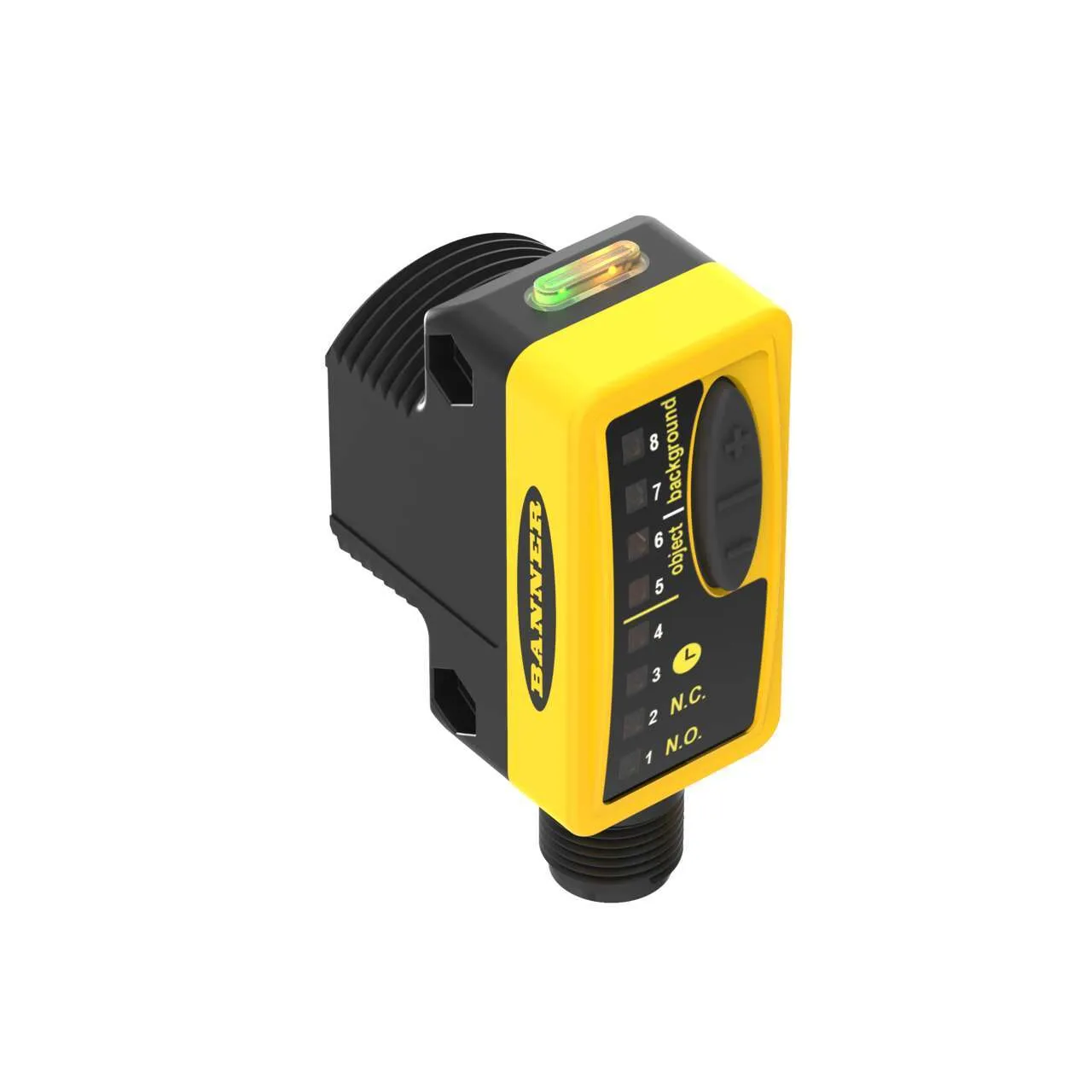

Banner QS30 Series High-Performance Long-Range Sensor, World-Beam, Adjustable-Field Range 50 to 300 mm, Input 10-30V DC, Output Bipolar 1 NPN, 1 PNP 5-pin M12 Integral QD, QS30AFQ
.webp)
.webp)
.webp)
Part Number : QS30AFQ
Brand :
![Banner]()
The Banner QS30AFQ High-Performance Long-Range Sensor from the WORLD-BEAM QS30 Series offers precise adjustable-field sensing within a range of 50 to 300 mm. It operates with a 10-30 V dc input and features dual bipolar outputs (1 NPN and 1 PNP), providing robust performance in diverse industrial environments with its IP67-rated protection.
View all
KWD 61.000
Quantity
Description
Specifications
Downloads
Related
products
Description
The Banner QS30AFQ High-Performance Long-Range Sensor, part of the renowned WORLD-BEAM QS30 Series, is engineered for accurate and reliable performance in demanding industrial applications. Featuring an adjustable-field range of 50 to 300 mm, this sensor is well-suited for tasks requiring precise distance measurement and object detection. It operates on a 10-30 V dc power supply, offering flexibility and compatibility with various systems. This model comes equipped with bipolar outputs, including one NPN and one PNP, allowing seamless integration into different control systems. The sensor's 5-pin M12 integral quick disconnect ensures easy and secure connectivity, enhancing installation efficiency. Its IP67-rated housing provides excellent protection against dust and water ingress, ensuring durability and longevity even in harsh operating conditions. Designed with a focus on reliability, the QS30AFQ features a rugged housing style and is built from high-quality materials, making it suitable for challenging environments. The sensor operates effectively within a wide temperature range and maintains high repeatability, ensuring consistent performance. The integrated LED indicators provide clear visual feedback, simplifying setup and monitoring. Overall, the Banner QS30AFQ High-Performance Long-Range Sensor is a versatile and dependable solution for industrial sensing applications, delivering precise measurements and robust connectivity options to meet the needs of modern automation systems.
High-Performance Sensing
Discover the precision and reliability of the Banner QS30AFQ High-Performance Long-Range Sensor from the WORLD-BEAM QS30 Series. This advanced sensor offers an adjustable-field range of 50 to 300 mm, making it ideal for a variety of industrial applications. The sensor's adjustable range ensures that you can customize your sensing capabilities to fit specific operational needs, enhancing efficiency and accuracy. With its robust IP67 rating, the QS30AFQ is built to withstand harsh environments, providing durable performance in challenging conditions. Whether you're automating a production line or need precise detection in a complex system, the QS30AFQ is engineered to deliver superior results. --Durable Industrial Sensors
The Banner QS30AFQ High-Performance Long-Range Sensor is designed with versatility and durability in mind. Featuring a bipolar output with 1 NPN and 1 PNP, this sensor is compatible with various industrial systems, ensuring seamless integration. Its 5-pin M12 integral QD connection facilitates easy installation and maintenance, reducing downtime and enhancing productivity. The sensor operates efficiently with a power supply range of 10-30 V dc, making it suitable for a wide range of applications. With a maximum sensing distance of up to 300 mm and an IP67 rating, this sensor is perfect for industries requiring reliable performance in rugged settings, from manufacturing to packaging. --Enhanced Sensor Performance
Experience the cutting-edge features of the Banner QS30AFQ High-Performance Long-Range Sensor that set it apart in the world of industrial automation. This sensor boasts an impressive output response time, ensuring timely and accurate data collection for critical operations. Its rugged housing style and primary housing material are designed to optimize durability and longevity, even in high-demand environments. The QS30AFQ is equipped with a quick disconnect feature, enhancing flexibility and ease of use. Additionally, its remote teach capability allows for convenient configuration and adjustments, ensuring that you can tailor the sensor's performance to meet specific application requirements efficiently. --Specifications
IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background Suppression (Adjustable)
Housing Style
Rectangular w/M30 Mount
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
300
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-10
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
55
Output response time (ms)
1
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
Yes
Special Feature: Water Detection
No
Sensing Beam Wavelength
660
Delay at Power-up (ms)
250
Repeatability (µs)
170
Number of Pins
5
Max Op. Relative Humidity [%]
90% @ 55°C
Lens Material
Acrylic
Adjustments
Teach Button
Barrel Diameter (mm)
30
Indicator
Bargraph
Feature: Timing (Hold/Delay)
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
