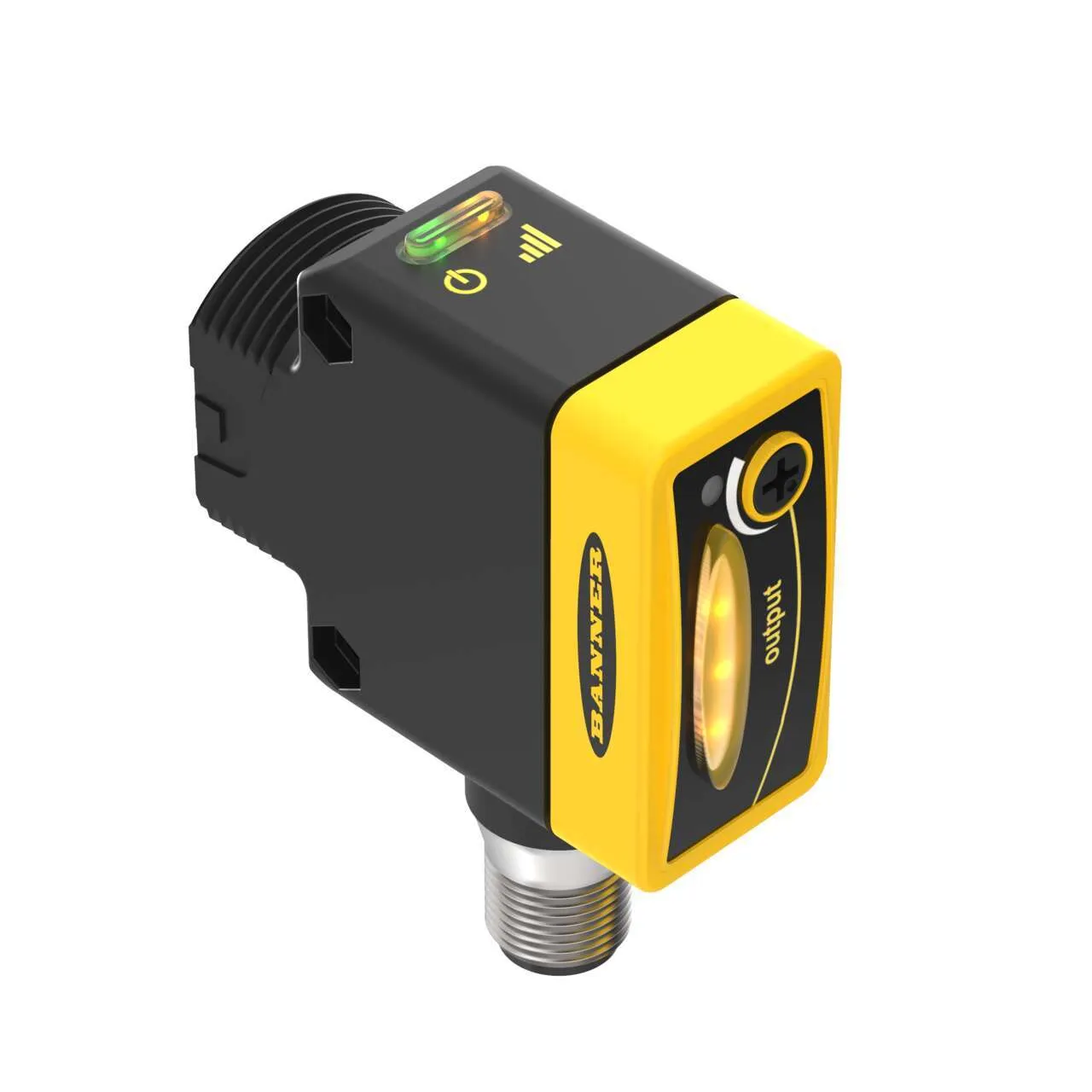

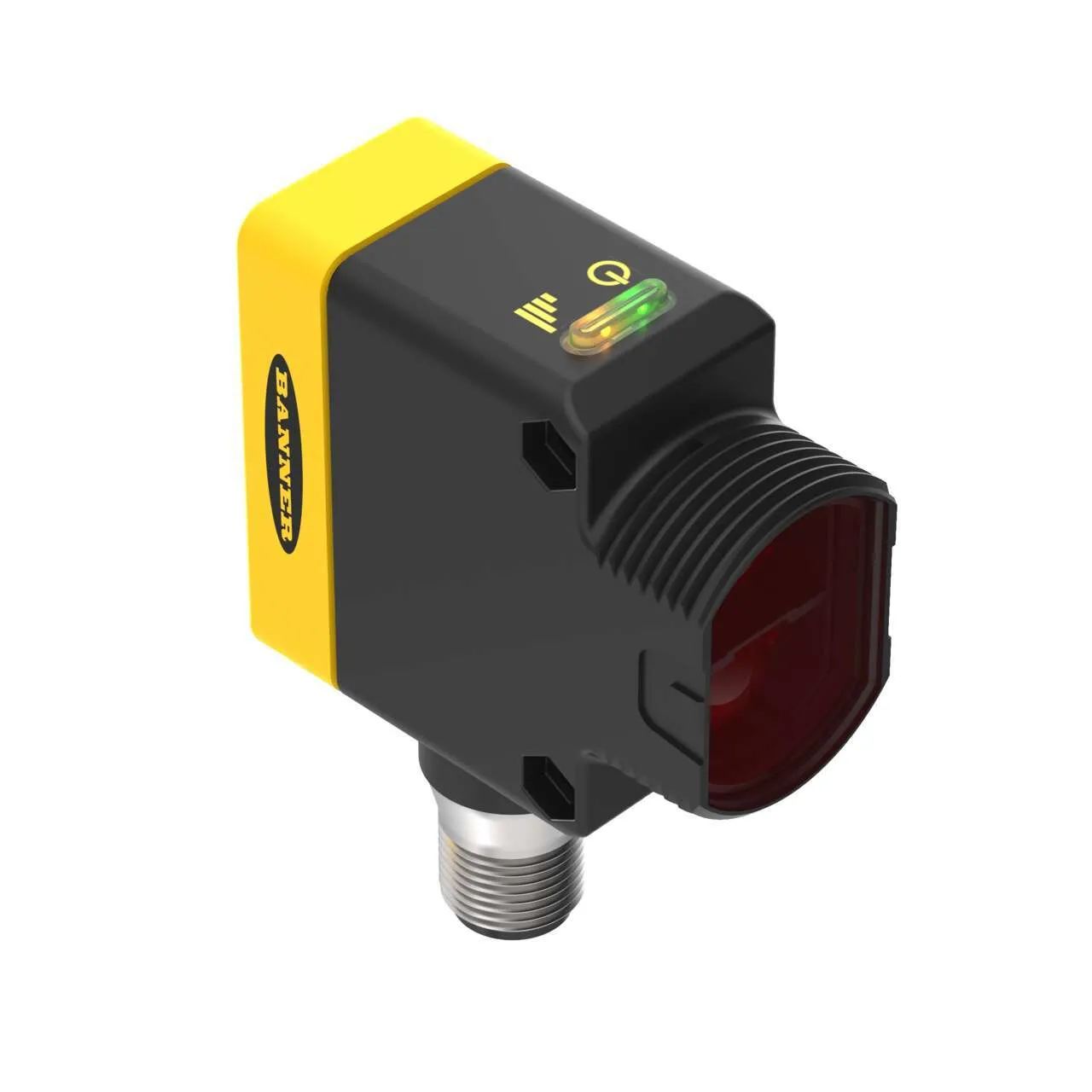

Banner QS30 Series High-Performance Long-Range Sensor, World-Beam, Adjustable-Field Range 50 - 600 mm, Input 10-30V DC, Output Bipolar 1 NPN, 1 PNP 5-pin M12 Integral QD, QS30AF600Q

Part Number : QS30AF600Q

Brand :
Banner

The Banner QS30AF600Q High-Performance Long-Range Sensor is a versatile and reliable sensor from the WORLD-BEAM QS30 Series, featuring an adjustable-field range of 50 to 600 mm, with a 10-30 V DC input and bipolar output. It is equipped with a 5-pin M12 integral QD and offers robust protection with an IP67 rating.

View all

KWD 70.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner QS30AF600Q High-Performance Long-Range Sensor from the WORLD-BEAM QS30 Series is designed for precision and adaptability in various industrial applications. It boasts an adjustable-field range from 50 to 600 mm, making it ideal for detecting objects at varying distances with high accuracy. The sensor operates on a 10-30 V DC power supply and features a bipolar output configuration, providing one NPN and one PNP output for flexible integration into different control systems. Its robust construction is highlighted by an IP67 rating, ensuring it is well-protected against dust and water ingress, making it suitable for challenging environments. The QS30AF600Q comes equipped with a 5-pin M12 integral quick disconnect, facilitating easy installation and maintenance. The sensor's compact housing is made for durability and reliability, ensuring long-term performance. Additional features include a precise response time and repeatability, enhancing its capability in fast-paced settings. This sensor is an excellent choice for applications requiring dependable object detection and measurement in industrial automation.

High-Performance Sensing

The Banner QS30AF600Q High-Performance Long-Range Sensor, part of the renowned WORLD-BEAM QS30 Series, offers exceptional sensing capabilities with an adjustable-field range of 50 to 600 mm. This precision-engineered sensor utilizes a sophisticated sensing beam with a defined wavelength, ensuring accurate detection across diverse applications. Whether you need to detect small objects or require precise distance measurement, the QS30AF600Q's adjustable sensing mode provides unparalleled versatility. Its robust design, featuring a durable housing and advanced optics, ensures reliable performance even in challenging industrial environments.

Durable Industrial Sensors

Built to withstand harsh conditions, the Banner QS30AF600Q High-Performance Long-Range Sensor boasts an impressive IP67 rating, making it dust-tight and water-resistant. This robust design ensures reliable operation in demanding settings, from manufacturing floors to outdoor installations. The sensor's housing is constructed from high-quality materials, providing exceptional durability while maintaining a compact profile. With its 5-pin M12 Integral QD connection and bipolar output (1 NPN and 1 PNP), this sensor seamlessly integrates into existing systems, offering both flexibility and reliability for various industrial applications.

Enhanced Sensor Performance

Designed with energy efficiency in mind, the Banner QS30AF600Q High-Performance Long-Range Sensor operates on a power supply of 10-30 V dc, ensuring low power consumption without compromising performance. The sensor's quick disconnect type simplifies installation and maintenance, while its remote teach capability allows for easy configuration and adjustment. With a rapid output response time and high repeatability, this sensor delivers consistent results, optimizing productivity and reducing downtime. Whether you're upgrading an existing system or deploying a new one, the QS30AF600Q offers a user-friendly solution for all your sensing needs.

Downloads

QS30 Universal Voltage Series Product Manual.pdf

pdf
Download

QS30ELVC Series Clear Object Retroreflective Sensor.pdf

pdf
Download

WORLD-BEAM QS30 Laser Retroreflective Series.pdf

pdf
Download

WORLD-BEAM QS30 Standard Series, DC Models Instruction Manual.pdf

pdf
Download

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background Suppression (Adjustable)
Housing Style
Rectangular w/M30 Mount
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
600
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
60
Output response time (ms)
5
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
660
Delay at Power-up (ms)
200
Repeatability (µs)
750
Number of Pins
5
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Mechanical Screw
Barrel Diameter (mm)
30
Indicator
LEDs
Feature: Timing (Hold/Delay)
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
