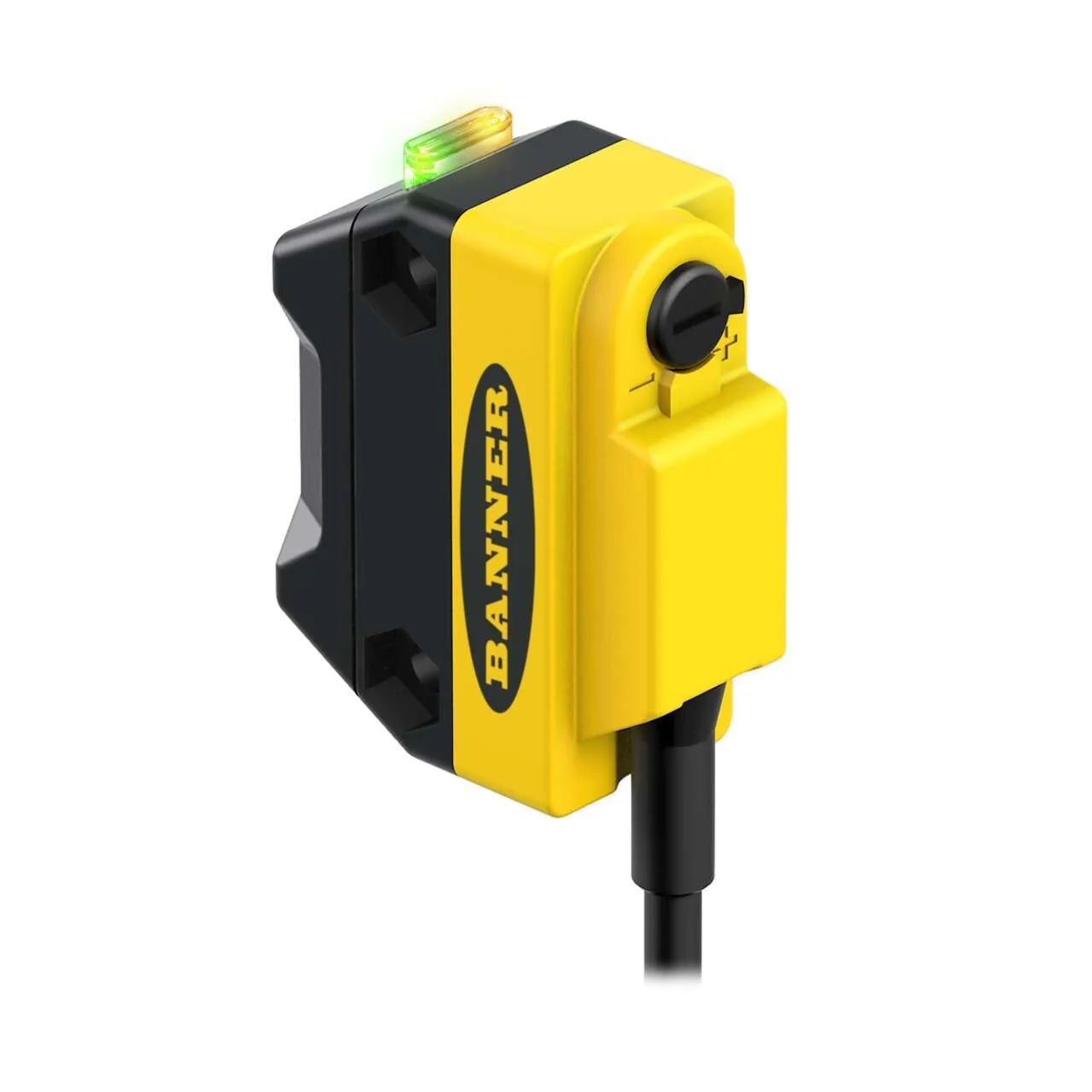

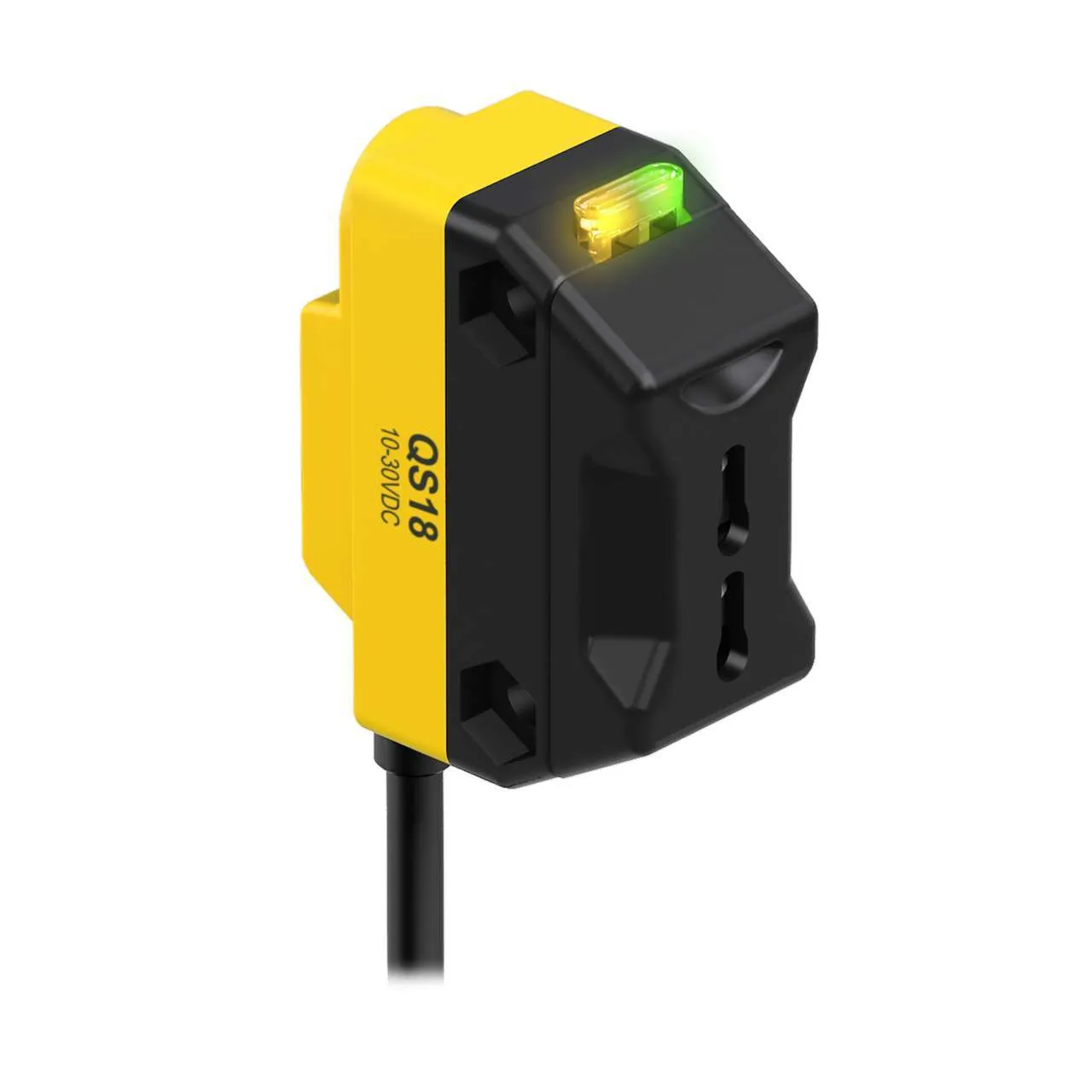

Banner QS18 Series All Purpose Photoelectric Sensor, World-Beam, Plastic Fiber Optic Range depends on the fiber, Input 10-30 V DC, Output NPN 2 m (6.5 ft) Cable, QS18VN6FP
.webp)
 1.webp)
.webp)
Part Number : QS18VN6FP
Brand :
![Banner]()
The Banner QS18VN6FP All Purpose Photoelectric Sensor is a durable plastic fiber optic sensor featuring NPN output, designed for versatile applications with a 10-30 V DC input and a robust IP67 rating.
View all
Quantity
Description
Specifications
Downloads
Related
products
Description
The Banner QS18VN6FP All Purpose Photoelectric Sensor is part of the World-Beam series, engineered for precision and reliability in diverse sensing applications. This sensor is designed to accommodate various fiber optic ranges, depending on the fibers used, ensuring flexibility and adaptability in different environments. The unit operates on a 10-30 V DC power supply and outputs via an NPN configuration, connected through a 2-meter (6.5-foot) cable. With an IP67 rating, this sensor is highly resistant to dust and water, making it suitable for challenging industrial conditions. Built with durable plastic housing, the QS18VN6FP offers reliable performance with a maximum sensing distance dependent on fiber choice and a repeatability measured in microseconds, ensuring precise detection. The sensor's operational temperature ranges from a minimum to maximum that caters to a wide array of applications. Additional features include a quick response time, a minimal delay at power-up, and a clear indicator for operational status. The device does not feature an audible indicator, focusing instead on visual feedback for ease of use. This sensor is an excellent choice for industries requiring high-performance sensing solutions with robust environmental resistance.
Advanced Technology
Discover the cutting-edge performance of the Banner QS18VN6FP All Purpose Photoelectric Sensor, designed for accuracy and reliability. This World-Beam plastic fiber optic sensor adapts to various fiber needs, offering a versatile solution for different applications. With an input range of 10-30 V DC and an NPN 2 m (6.5 ft) cable output, it ensures seamless integration into your system. Experience the robust IP67 rating, guaranteeing protection against dust and water, making it ideal for harsh industrial environments. Whether you need precision for automation or manufacturing, the Banner QS18VN6FP is engineered to deliver superior results every time.High-Quality Construction
The Banner QS18VN6FP All Purpose Photoelectric Sensor stands out with its durable construction and versatile capabilities. The sensor's primary housing material is engineered to withstand challenging conditions while maintaining peak performance. Its adjustable sensing beam and dependency on the fiber allow for customized solutions across diverse applications. The IP67 rating ensures that this sensor is protected against environmental factors, making it a reliable choice for long-term use. Whether you're working in automotive, electronics, or packaging industries, the Banner QS18VN6FP is designed to meet your precise sensing needs with unparalleled adaptability.Object Detection
Integrate the Banner QS18VN6FP effortlessly into your systems for enhanced efficiency and performance. The sensor's compact housing style and 2 m cable length ensure easy installation and connectivity, while its NPN output facilitates quick data transmission. With a responsive power supply voltage of 10-30 V DC and an output response time measured in milliseconds, this sensor ensures rapid and accurate detection. Furthermore, the Banner QS18VN6FP is equipped with user-friendly indicators and adjustments, allowing for easy monitoring and configuration. Choose this All Purpose Photoelectric Sensor for a harmonious blend of reliability, efficiency, and advanced technology in your industrial applications.Specifications
IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Cable Length (m)
2
Power
DC
Housing Style
Rectangular
Primary Housing Material
ABS
Input Output
Discrete
Max Sensing Distance (mm)
3500
Outputs
NPN
Power Supply/Supply Voltage
10-30 V dc
Connection
Cable
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
0.6
Delay at Power-up (ms)
100
Repeatability (µs)
150
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Barrel Diameter (mm)
18
Indicator
LEDs
Feature: Audible
No
