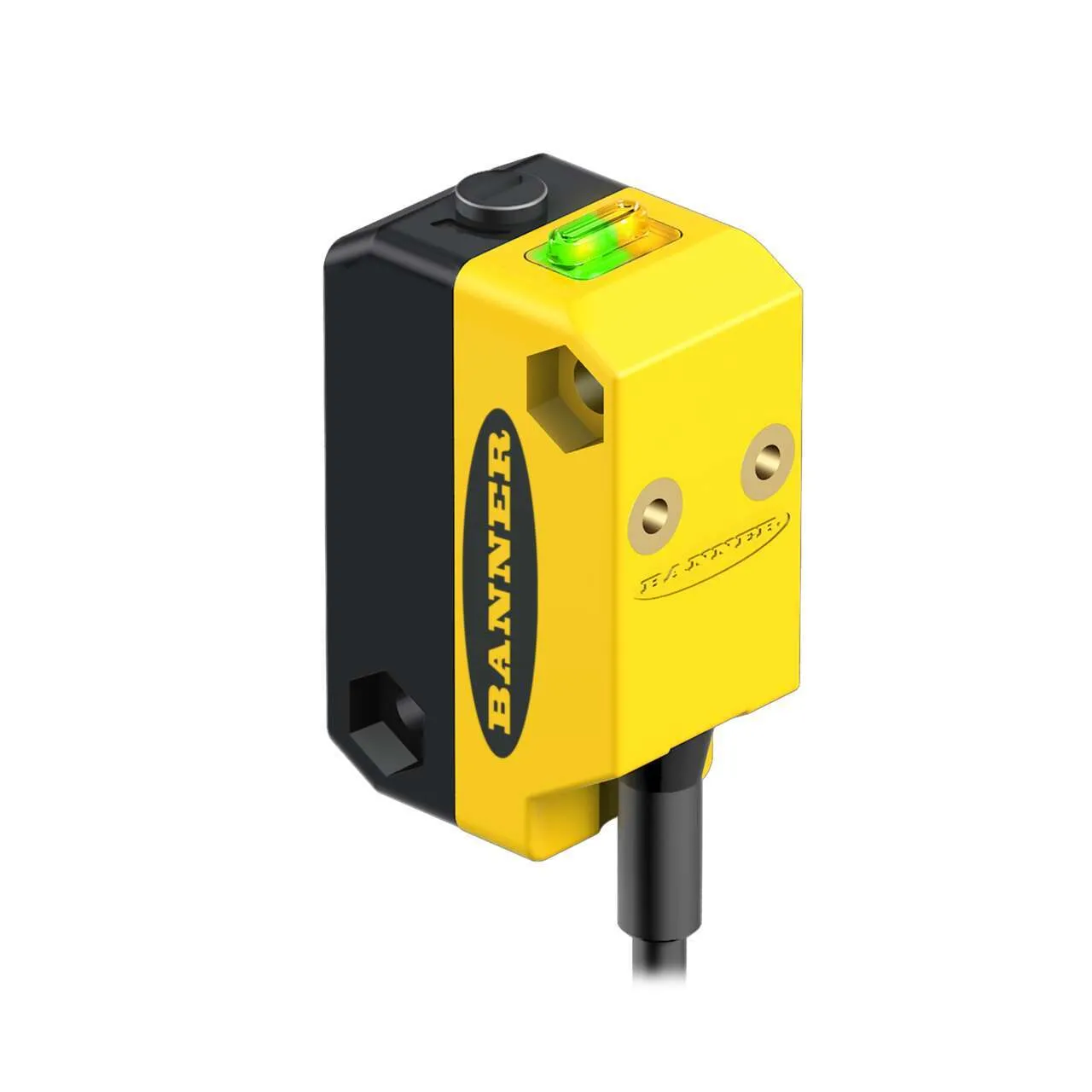

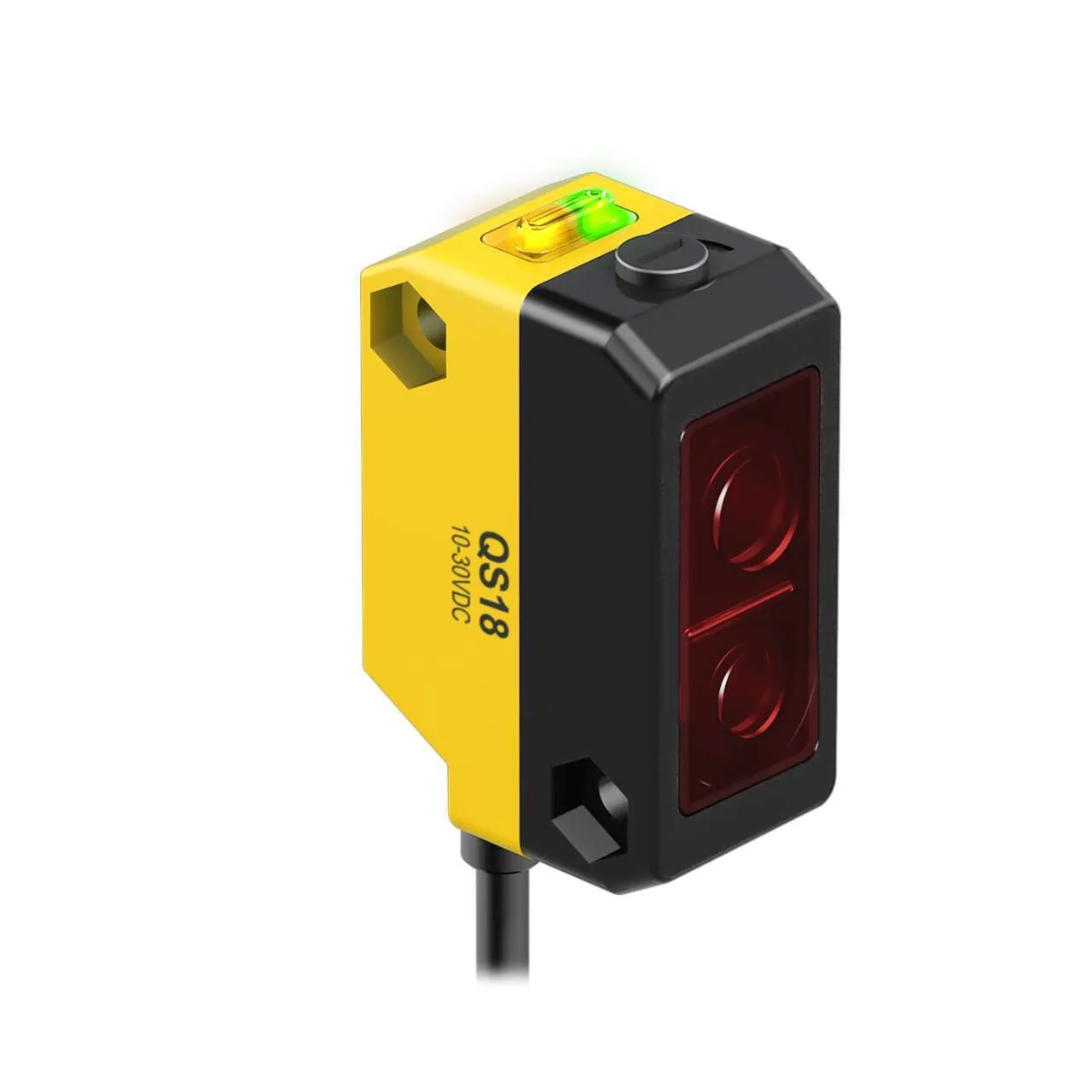

Banner QS18 Series All Purpose Photoelectric Sensor, World-Beam, Adjustable Field Background Suppression Cutoff Adjustment Range 30 to 350 mm, Input 10-30 V DC, Outputs Bipolar NPN and PNP Light Operate 150 mm (6 in) M12 Pigtail QD, QS18AB6AF350Q5
.webp)
 1.webp)
.webp)
Part Number : QS18AB6AF350Q5
Brand :
![Banner]()
The Banner QS18AB6AF350Q5 is a versatile All Purpose Photoelectric Sensor with adjustable background suppression, designed for reliable object detection within a range of 30 to 350 mm. It operates on a 10-30 V DC power supply and supports both NPN and PNP outputs, featuring a robust M12 pigtail QD connection with an IP67 rating.
View all
KWD 42.000
Quantity
Description
Specifications
Downloads
Related
products
Description
The Banner QS18AB6AF350Q5 All Purpose Photoelectric Sensor is engineered for precision in industrial applications, providing adjustable background suppression with a cutoff adjustment range from 30 to 350 mm. This sensor operates efficiently with a 10-30 V DC input, delivering versatile output options with bipolar NPN and PNP light operate functions. Its durable M12 pigtail quick disconnect design ensures secure and flexible installation, compliant with IP67 standards for protection against dust and water ingress. Notable features include a compact housing style that facilitates easy integration into existing systems, while the primary housing material ensures longevity and resistance to harsh environments. The sensor's operational temperature range and relative humidity tolerance make it suitable for various conditions, ensuring reliable performance in diverse industrial settings. With a quick response time and high repeatability, the QS18AB6AF350Q5 is ideal for applications demanding accuracy and speed. Additional specifications include a sensing beam wavelength that ensures precise detection, and the sensor's quick disconnect capability enhances maintenance efficiency. The device features clear indicators for operational status and adjustments, enhancing usability and diagnostics. Whether for manufacturing, packaging, or automation tasks, the Banner QS18AB6AF350Q5 delivers exceptional performance and adaptability.
Advanced Technology
Discover the cutting-edge technology of the Banner QS18AB6AF350Q5 All Purpose Photoelectric Sensor, designed for precision and reliability in diverse industrial applications. This sensor features an adjustable field background suppression cutoff adjustment range from 30 to 350 mm, ensuring accurate detection of objects within its sensing range. With an input voltage range of 10-30 V DC, the sensor provides flexibility and efficiency in power consumption. The bipolar NPN and PNP outputs allow for seamless integration into various automation systems, making it an ideal choice for enhancing productivity and operational efficiency.High-Quality Construction
Built to withstand challenging conditions, the Banner QS18AB6AF350Q5 All Purpose Photoelectric Sensor boasts an IP67 rating, offering exceptional protection against dust and water ingress. This robust sensor is crafted with a durable housing style and primary housing material, ensuring long-lasting performance in demanding environments. The M12 pigtail QD connection with quick disconnect capability simplifies installation and maintenance, providing convenience and reliability in fast-paced industrial settings. Whether you're working in manufacturing, logistics, or assembly lines, this sensor is engineered to deliver consistent and dependable results.Object Detection
The Banner QS18AB6AF350Q5 All Purpose Photoelectric Sensor is equipped with advanced sensing capabilities, including a sensing beam wavelength tailored for precise object detection. Its maximum sensing distance of 350 mm and output response time of just a few milliseconds make it highly responsive to dynamic processes. The sensor's repeatability ensures consistent performance, while the adjustable sensing mode allows for customization based on specific application needs. With features like audible indicators and clear status indicators, this sensor provides real-time feedback to operators, enhancing overall system control and efficiency.Specifications
IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Cable Length (m)
0.15
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background Suppression (Adjustable)
Housing Style
Rectangular
Primary Housing Material
ABS
Input Output
Discrete
Max Sensing Distance (mm)
350
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light Operate
Max Op. Temp. (°C)
55
Output response time (ms)
2.5
Sensing Beam Wavelength
640
Delay at Power-up (ms)
200
Repeatability (µs)
250
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Mechanical Screw
Indicator
LEDs
Feature: Audible
No
Feature: Quick Disconnect
Yes
