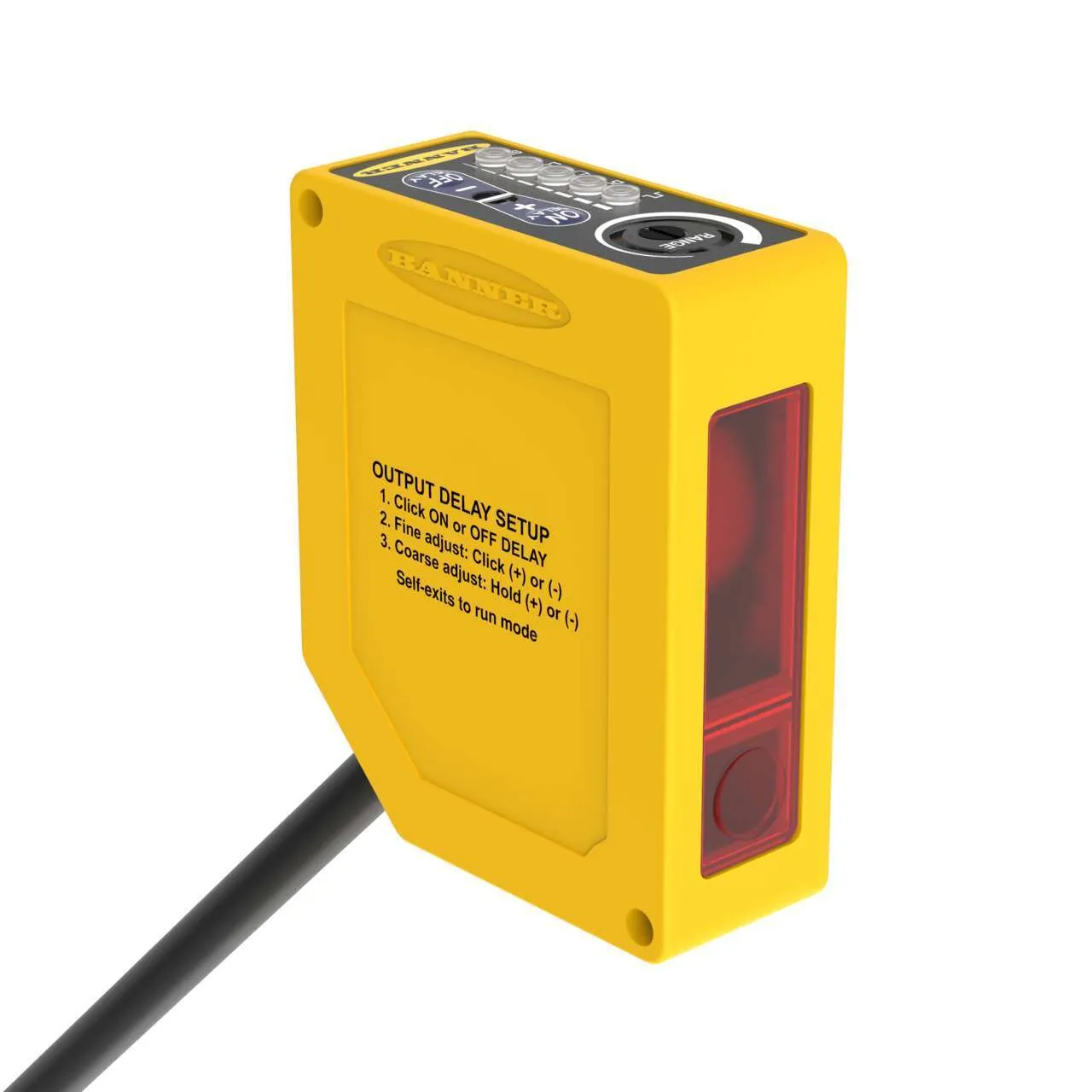

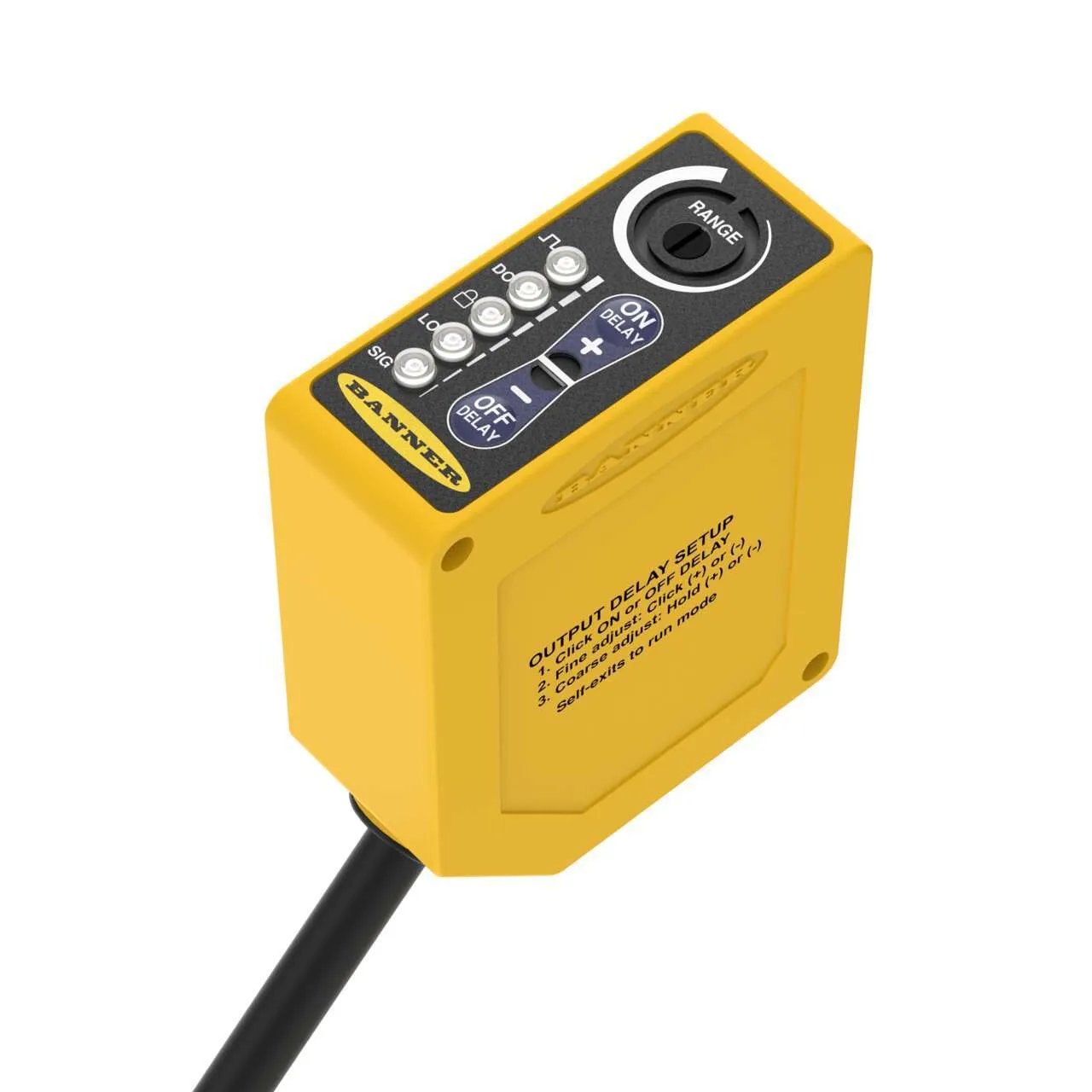

Banner Q60 Series Background Suppression, 2M Range Adjustable-Field Sensor, Adjust-Field Visible Red UniverVolt Range 200-1000 mm, Input 12-250V DC, or 24-250V AC Output Electromechanical Relay (SPDT) 2 m (6.5 ft) Cable, IP67, AC/DC, Universal, Acrylic, Q60VR3AFV1000
.webp)
.webp)
.webp)
Part Number : Q60VR3AFV1000
Brand :
![Banner]()
The Banner Q60VR3AFV1000 is a versatile 2M Range Adjustable-Field Sensor from the Q60 Series, designed for reliable distance detection with a visible red beam and a universal voltage range. It features a robust electromechanical relay output and a durable 2-meter cable, suitable for a variety of industrial applications.
View all
KWD 81.000
Quantity
Description
Specifications
Downloads
Related
products
Description
The Banner Q60VR3AFV1000 2M Range Adjustable-Field Sensor is a high-performance sensing solution engineered for precision in industrial environments. Part of the Q60 Series, this sensor offers an adjustable field with a visible red laser beam that ensures accurate detection over a distance range of 200 to 1000 mm. Designed to accommodate various power configurations, it operates effectively within an input range of 12-250 V DC or 24-250 V AC. The sensor's electromechanical relay (SPDT) output provides robust and reliable signal switching, making it ideal for complex automation systems. Protected by an IP67 rating, the Q60VR3AFV1000 is built to withstand harsh conditions, ensuring durability and long-term performance. The 2-meter cable enhances flexibility in installation, while its compact housing is crafted from high-quality materials, offering resilience against environmental challenges. The sensor's universal voltage compatibility and extensive sensing capabilities make it a versatile choice for applications requiring precise distance measurement and control.
Adjustable Field Precision
Discover the unparalleled performance of the Banner Q60VR3AFV1000 2M Range Adjustable-Field Sensor, part of the renowned Q60 Series. This sensor boasts an impressive adjustable field visible red sensing beam with a wavelength optimized for precise detection. Designed for versatility, it operates efficiently within a universal voltage range of 12-250 V DC or 24-250 V AC. With a maximum sensing distance of 1000 mm, this 2M Range Adjustable-Field Sensor is perfect for a wide range of industrial applications. Its robust IP67 rating ensures reliable performance even in the harshest environments, making it an essential component for any automation system. --Enhanced Durability
The Banner Q60VR3AFV1000 2M Range Adjustable-Field Sensor is engineered for durability with its IP67 rating, providing superior protection against dust and water ingress. This makes it ideal for use in challenging industrial settings where reliability is paramount. The sensor's electromechanical relay (SPDT) output, coupled with a 2-meter cable, offers flexible connectivity options for seamless integration into your existing systems. Whether you require precise water detection or need to withstand high relative humidity, the Q60VR3AFV1000 is equipped to meet your needs with consistent and repeatable performance. --Streamlined Integration
Experience precision and control like never before with the Banner Q60VR3AFV1000 2M Range Adjustable-Field Sensor. This device features user-friendly adjustments and indicators for easy setup and monitoring. Its housing style is designed for optimal performance, and its primary housing material ensures longevity and resistance to wear and tear. The sensor's ability to deliver reliable outputs and its special features, such as remote teach capability, make it a versatile choice for automation professionals seeking accuracy and efficiency. Trust the Q60 Series to enhance your operational capabilities with its innovative sensing technology. --Specifications
IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Cable Length (m)
2
Power
AC/DC Universal
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background Suppression (Adjustable)
Housing Style
Rectangular
Primary Housing Material
Thermoplastic
Input Output
E/M Relay
Max Sensing Distance (mm)
1000
Outputs
SPDT e/m Relay
Power Supply/Supply Voltage
12-250 V dc or 24-250 V ac
Connection
Cable
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
55
Output response time (ms)
15
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
665
Delay at Power-up (ms)
150
Repeatability (µs)
500
Number of Pins
4
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Acrylic
Adjustments
Screw Adjustment
Indicator
LEDs
Feature: Timing (Hold/Delay)
Yes
Feature: Audible
No
