Banner Q5Z Series Laser Sensor, Laser Adjustable Field Range 95-1800 mm, Input 10-30V DC, Output 1 PNP/NPN with IO-Link, 1 LO PNP 4-pin M12 Rotatable Connector, Visible Red Laser, Sensing Beam, Q5ZKLAF1800-Q8

Part Number : Q5ZKLAF1800-Q8

Brand :
Banner

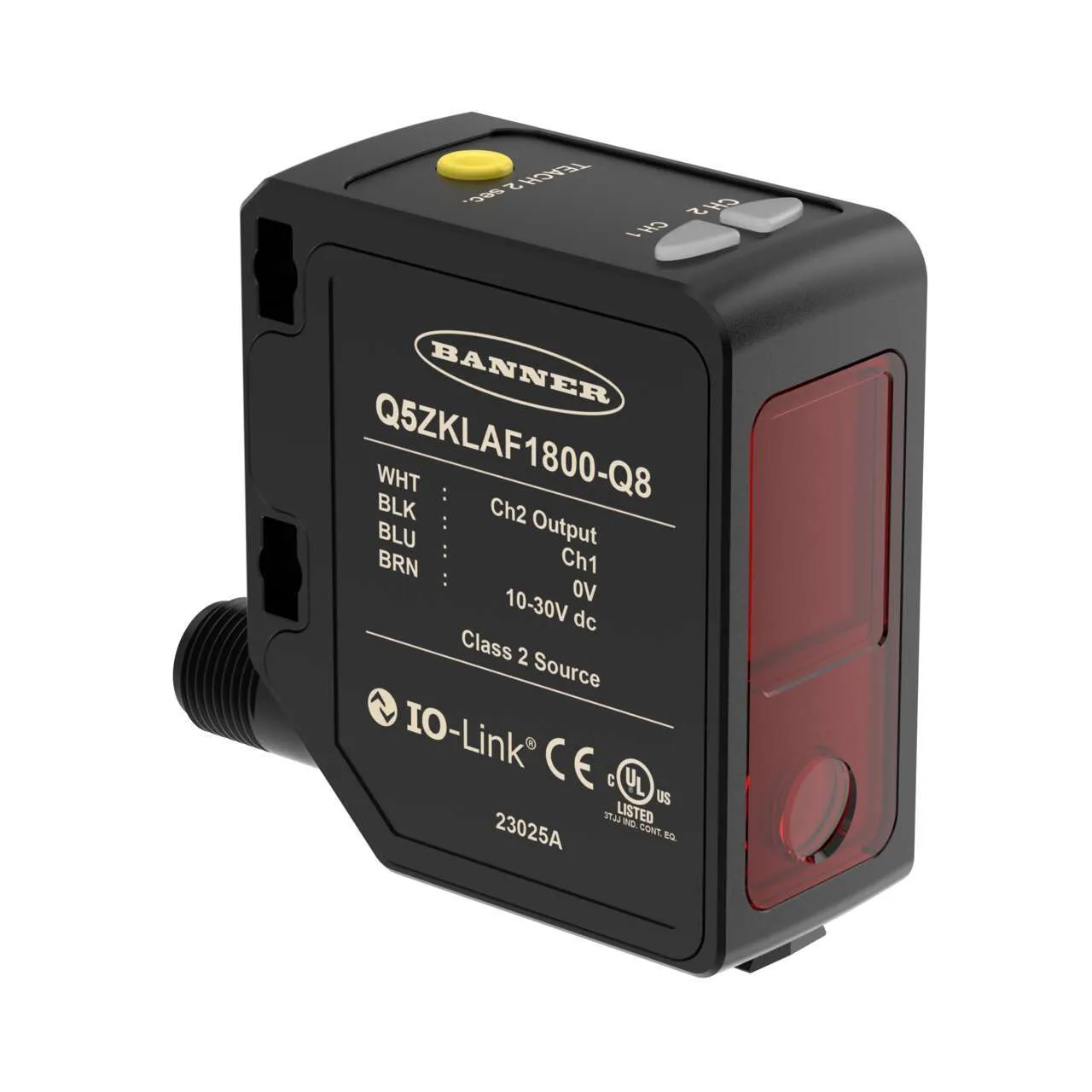

The Banner Q5ZKLAF1800-Q8 Laser Sensor from the Q5Z series is a high-precision device with an adjustable field range of 95-1800 mm. It features a visible red laser sensing beam, 4-pin M12 rotatable connector, and is powered by a 10-30 V dc input. It also supports 1 PNP/NPN with IO-Link and 1 LO PNP output.

View all

KWD 122.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner Q5ZKLAF1800-Q8 Laser Sensor is a part of the cutting-edge Q5Z series. It's engineered for superior performance with an impressive adjustable field range of 95-1800 mm, ensuring accurate and reliable detection over a broad range of distances. This sensor utilizes a visible red laser sensing beam for precise targeting and detection. The sensor operates on a power input of 10-30 V dc, making it compatible with most power supply systems. Its output is comprised of 1 PNP/NPN with IO-Link and 1 LO PNP, providing versatility in connectivity options. It features a 4-pin M12 rotatable connector, offering flexible and convenient installation. The Q5ZKLAF1800-Q8 Laser Sensor also comes with a myriad of specifications to cater to a wide array of applications. These include various sensing modes, housing styles, and device types. It also provides information about its IP rating, primary housing material, laser classification, maximum and minimum sensing distance, power supply, adjustments, and number of pins. The sensor is also equipped with discrete (switched) outputs, operating temperature range, response time, and ambient light resistance. Furthermore, it offers features such as clear object detection, timing (hold/delay), pump-in/pump-out, quick disconnect, and IO Link. With these robust features, the Banner Q5ZKLAF1800-Q8 Laser Sensor is a comprehensive solution for versatile and efficient sensing applications.

Product Overview

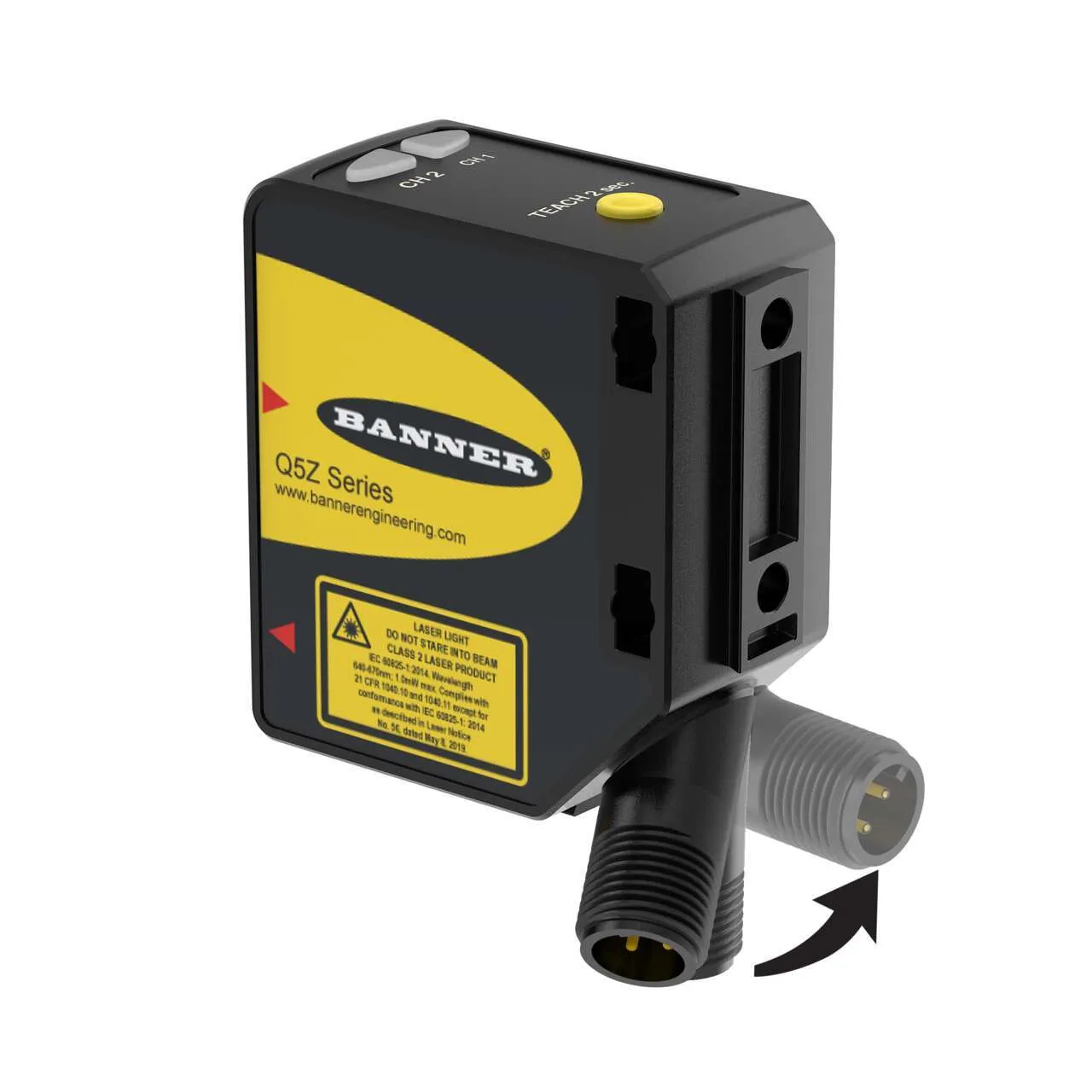

The Banner Q5ZKLAF1800-Q8 is a laser sensor from the Q5Z series. It features an adjustable field range of 95-1800 mm and is powered by an input of 10-30 V dc. The output consists of 1 PNP/NPN with IO-Link and 1 LO PNP. The sensor is equipped with a 4-pin M12 rotatable connector and utilizes a visible red laser as its sensing beam.

Key Specifications

The Banner Q5ZKLAF1800-Q8 laser sensor boasts a variety of specifications to meet various needs. The sensing beam is a visible red laser, providing high accuracy and precision. The power requirement is a 10-30 V dc input, and the device is IP rated for protection against dust and water. The sensing mode can be general or detailed, providing flexibility in operation. The housing style is robust and durable, and the primary housing material ensures longevity. The laser classification ensures safe operation, and the input output features a PNP/NPN with IO-Link. The device can be connected via a 4-pin M12 rotatable connector, and the maximum sensing distance is 1800 mm.

Advanced Features

The Banner Q5ZKLAF1800-Q8 laser sensor is equipped with several advanced features. These include clear object detection, timing hold/delay, pump-in/pump-out, and quick disconnect. The device also features an IO-Link, offering machine connectivity and smart data management. The sensor has a minimum response time, ensuring prompt operations, and can function optimally even in high ambient light conditions. The device's operating temperature range is also quite broad, enabling its use in various environmental conditions.

Downloads

Laser Sensor Solutions Brochure.pdf

pdf
Download

Q5Z Global Laser Measurement Sensor with IO-Link Instruction Manual.pdf

pdf
Download

Q5Z Global Laser Measurement Sensor with IO-Link Quick Start Guide.pdf

pdf
Download

Sensor Selection Guide.pdf

pdf
Download

Specifications

Sensing Beam
Visible Red Laser
Power
DC
IP Rating
IP67
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background/Foreground Suppression
Housing Style
Rectangular
Device Type
Sensor
Primary Housing Material
ABS
Laser Classification
Class 2
Input Output
Discrete
Connection
Integral QD
Quick Disconnect Type
M12
Max Sensing Distance (mm)
1800
Minimum Sensing Distance (mm)
95
Power Supply
10-30 V dc
Adjustments
Push Button; Remote Teach
Number of Pins
4
Discrete (Switched) Outputs
1 NPN/PNP Configurable; 1 PNP
Max Operating Temperature (°C)
50
Min Operating Temperature (°C)
-10
Minimum Response Time (ms)
3
Max Ambient Light (Lux)
up to 5000 lux at 1000 mm and up to 2000 lux at 2000 mm
Feature: Clear Object Detection
Yes
Feature: Timing (Hold/Delay)
Yes
Feature: Pump-in/ Pump-out
Yes
Feature: Quick Disconnect
Yes
IO Link
Yes
