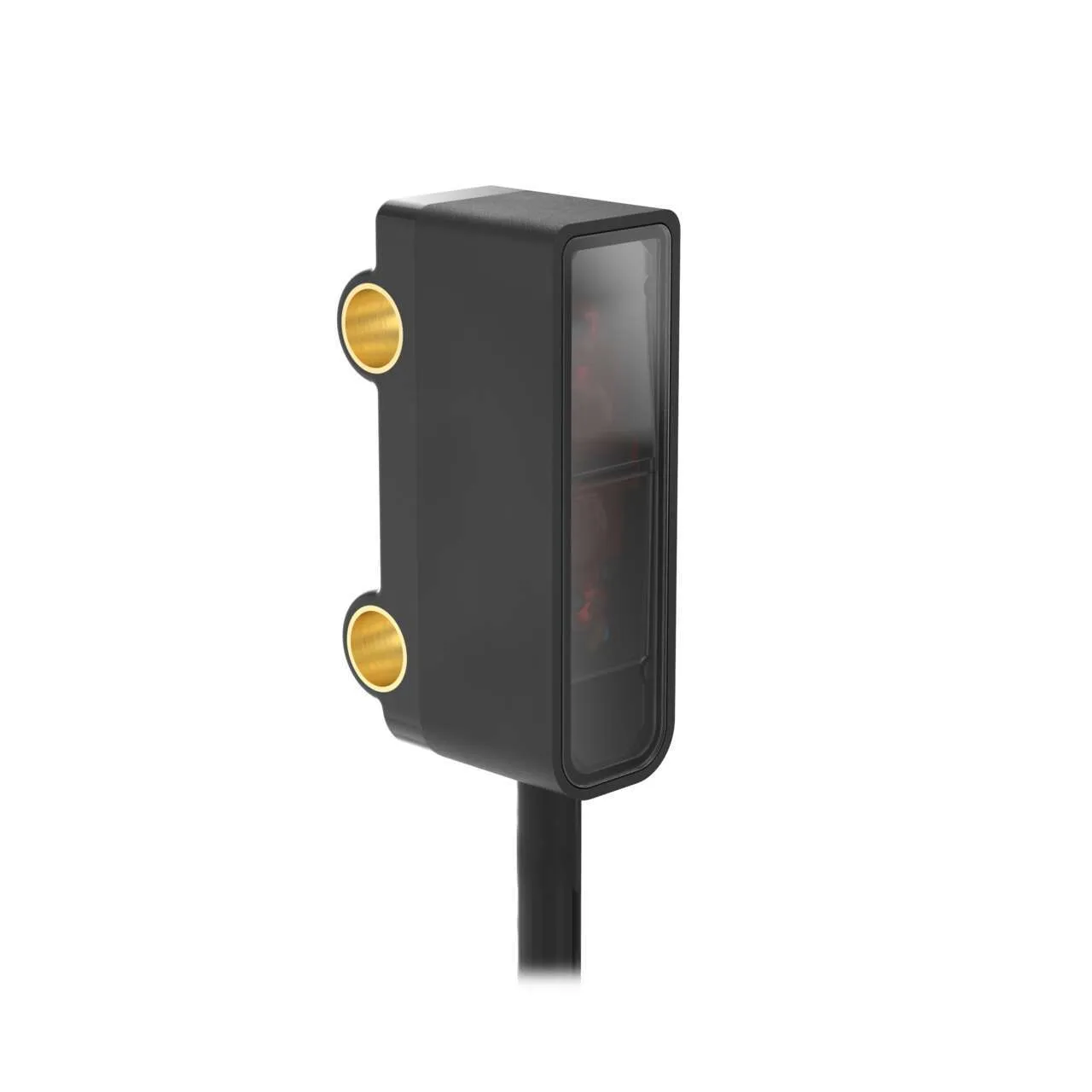

Banner Q2X Series Miniature Laser Sensor,Polarized Retroreflective Range 3300 mm, Input 10-30 V DC, Output LO (Light Operate), 1 PNP 3-pin M8 Integral QD, IP67, Q2XAPLPF-Q3

Part Number : Q2XAPLPF-Q3

Brand :
Banner

The Banner Q2XAPLPF-Q3 Miniature Laser Sensor is a high-performance, polarized retroreflective sensor with a 3300 mm range, featuring a robust IP67-rated housing, 10-30 V DC input, and a 1 PNP output with an integral M8 quick disconnect.

View all

KWD 33.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner Q2XAPLPF-Q3 Miniature Laser Sensor is engineered for superior performance in industrial environments, offering a polarized retroreflective sensing mode with a maximum range of 3300 mm. It operates efficiently on a 10-30 V DC power supply and provides a light operate (LO) output mode with a single PNP output, ensuring reliable detection and response. The sensor's rugged housing is rated IP67, making it suitable for challenging conditions with protection against dust and immersion. Equipped with a small visible spot and a quick 1 ms output response time, it guarantees precise and rapid detection. The sensor features a 3-pin M8 integral quick disconnect, enhancing ease of installation and maintenance. It is built to withstand temperatures ranging from -25°C to 55°C and supports up to 90% relative humidity, ensuring versatility and durability. The Miniature Laser Sensor's construction includes high-quality lens material for optimal performance, and its design incorporates clear indicators for operational status, making it user-friendly and efficient for a variety of applications.

Advanced Miniature Laser Technology

The Banner Q2XAPLPF-Q3 Miniature Laser Sensor is engineered for precision and reliability, offering a polarized retroreflective sensing capability with an impressive range of up to 3300 mm. Designed for diverse industrial applications, this sensor operates optimally with an input voltage of 10-30 V DC. Its Light Operate mode (LO) and PNP output ensure seamless integration into your automation systems. The sensor's IP67 rating guarantees durability, making it suitable for harsh environments, while its integral 3-pin M8 quick-disconnect ensures easy installation and maintenance. Experience accurate and efficient sensing solutions with the Q2X series.

Advanced Features for Industrial Use

The Q2XAPLPF-Q3 Miniature Laser Sensor stands out with its robust housing style crafted from high-quality materials, ensuring long-lasting performance even in challenging conditions. Its compact design features a small visible spot for precise targeting, and the sensor is equipped to handle a wide range of temperatures, from the minimum operating temperature to a maximum of 50°C. The sensor's quick-disconnect feature facilitates rapid setup and replacement, enhancing operational efficiency. Whether you're dealing with complex automation needs or straightforward sensing tasks, the Q2XAPLPF-Q3 meets the demands of modern industrial environments with ease.

Efficient and Seamless Sensor Integration

Connectivity and performance are at the forefront of the Banner Q2XAPLPF-Q3 Miniature Laser Sensor's design. The sensor includes a reliable 1 PNP output with a 3-pin configuration, perfect for streamlined communication with other devices. It features a rapid output response time, ensuring quick and accurate data processing. Ideal for applications requiring high repeatability, the Q2XAPLPF-Q3 boasts a repeatability rate of just a few microseconds. The sensor's advanced features, including the quick-disconnect type and water detection capability, offer unparalleled flexibility and safety in various industrial settings. Optimize your automation processes with the Q2XAPLPF-Q3's cutting-edge technology and user-friendly design.

Downloads

Q2XABFF Fixed Field Sensor with Background Suppression.pdf

pdf
Download

Q2XKLAF Laser Measurement Sensor.pdf

pdf
Download

Q2XKLAFAIR IO-Link Data Reference Guide.pdf

pdf
Download

Q2XLP Polarized Retroreflective and Q2XER Opposed Mode Sensors with Visible Red LED.pdf

pdf
Download

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Power
DC
Sensing Beam
Visible Red LED
Cable Length (m)
0.15
Sensing Mode (General)
Retroreflective
Sensing Mode (Detailed)
Polarized Retro
Housing Style
Rectangular
Primary Housing Material
ABS/Polycarbonate
Small Visible Spot
LED
Input Output
Discrete
Max Sensing Distance (mm)
3300
Outputs
PNP
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M8
Operation
The operating principle of the solenoid valve.
Light Operate
Min Op. Temp. (°C)
-25
Max Op. Temp. (°C)
50
Output response time (ms)
.6
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
645
Delay at Power-up (ms)
120
Repeatability (µs)
144
Number of Pins
3
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Indicator
LEDs
Feature: Quick Disconnect
Yes
