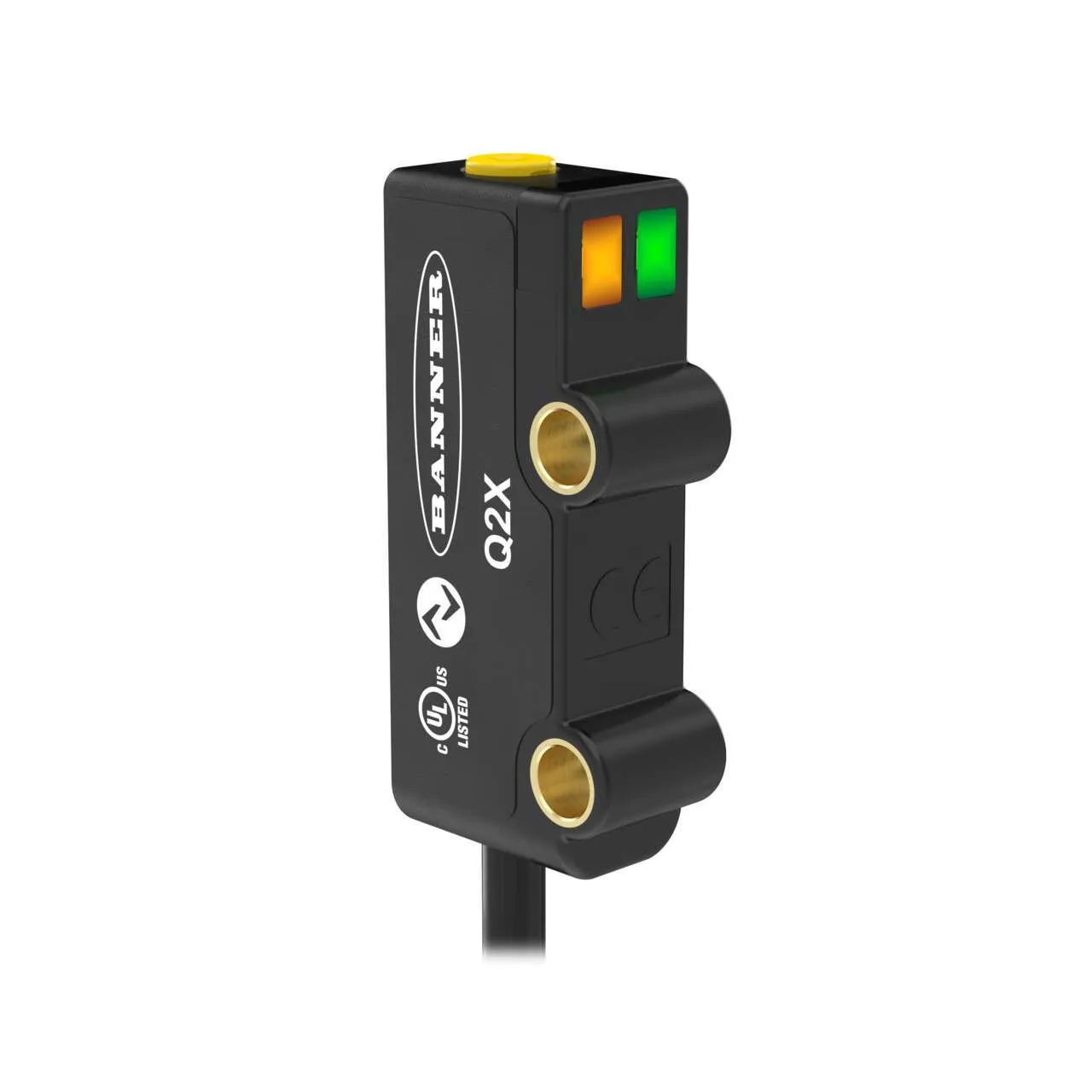

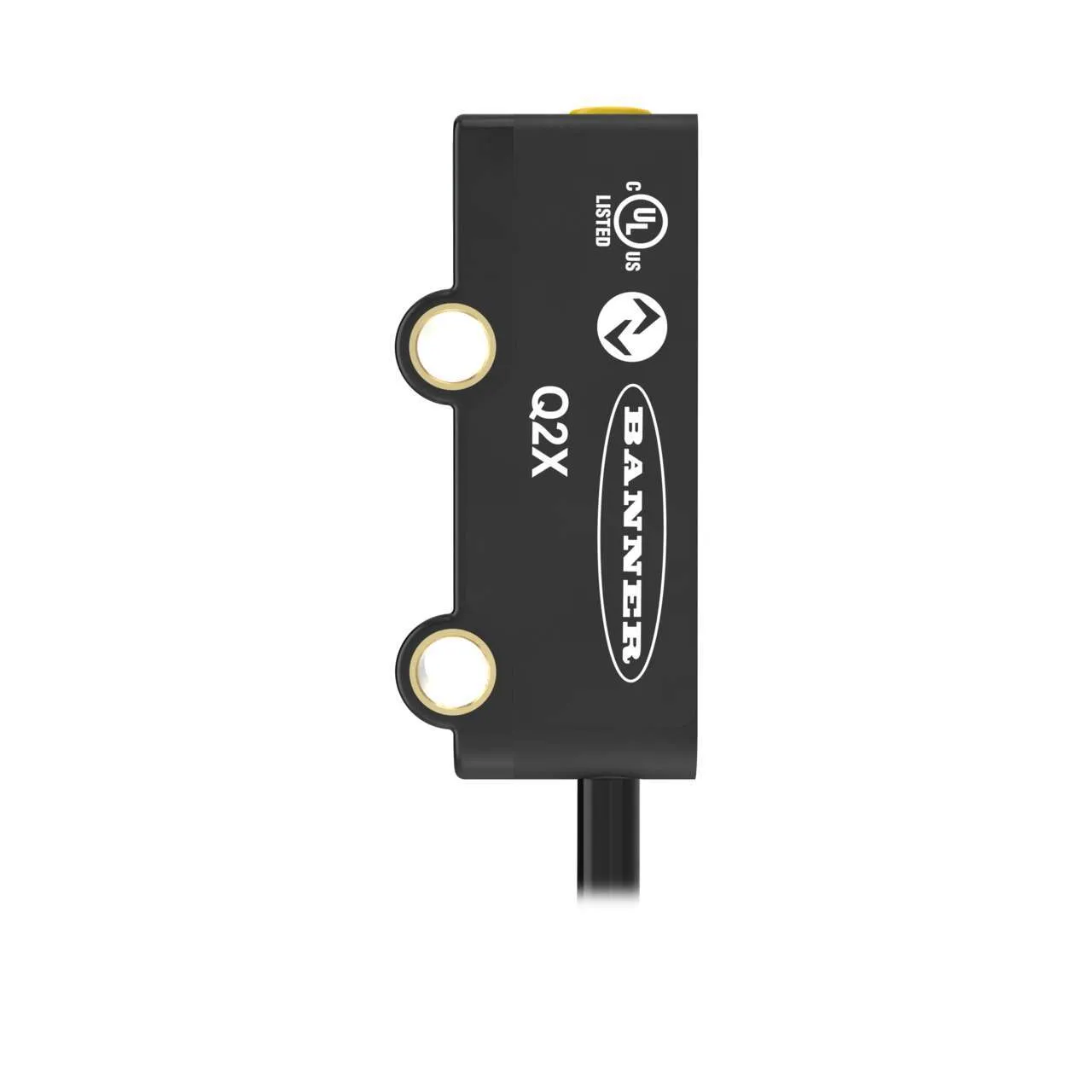

Banner Q2X Series Miniature Laser Sensor, Adjustable Field Sensor Range 18-150 mm, Input 10-30 V DC Output LO (Light Operate) Bipolar 1 NPN, 1 PNP 150 mm (6 in) 4-pin M8 Pigtail QD, IP67, Q2XABAF150-Q

Part Number : Q2XABAF150-Q

Brand :
Banner

The Banner Q2XABAF150-Q Miniature Laser Sensor from the Q2X Series provides precise detection with an adjustable field range of 18-150 mm. It features a 10-30 V DC input, LO bipolar output with 1 NPN and 1 PNP, and a 4-pin M8 Pigtail QD connection. Rated IP67 for robust protection.

View all

KWD 45.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner Q2XABAF150-Q Miniature Laser Sensor is a high-performance solution from the Q2X Series, designed for accurate and reliable detection in industrial applications. With an adjustable field sensing range from 18 to 150 mm, this sensor is versatile enough to accommodate various detection needs. It operates on a 10-30 V DC power supply and offers a light operate (LO) bipolar output, providing both NPN and PNP configurations for flexible integration into existing systems. The sensor is equipped with a 4-pin M8 Pigtail Quick Disconnect (QD) for straightforward installation and maintenance. Its IP67 rating ensures durability and protection against dust and water immersion, making it suitable for harsh environments. The compact housing is crafted for easy mounting and features a small visible spot for precise targeting. Whether used in manufacturing, packaging, or automation, the Banner Q2XABAF150-Q delivers dependable performance with an output response time that meets the demands of fast-paced operations. Its robust design, combined with advanced sensing technology, makes it an ideal choice for enhancing process efficiency and accuracy.

Advanced Miniature Laser Technology

Discover the unparalleled precision of the Banner Q2XABAF150-Q Miniature Laser Sensor from the renowned Q2X Series. Designed for superior performance, this adjustable field sensor boasts a sensing range of 18-150 mm, making it ideal for various industrial applications. Powered by a 10-30 V DC input, the sensor features a Light Operate (LO) bipolar output with both NPN and PNP configurations. Its robust design includes a 4-pin M8 pigtail QD connection, ensuring seamless integration and reliable operation. With an IP67 rating, this sensor is built to withstand harsh environments, offering reliable performance and longevity.

Advanced Features for Industrial Use

Engineered for durability, the Banner Q2XABAF150-Q Miniature Laser Sensor is equipped with a rugged housing style, expertly crafted from high-quality materials to ensure resilience in demanding conditions. The sensor's IP67 rating guarantees protection against dust and water ingress, making it suitable for a wide range of industrial environments. Its compact and versatile design includes a small visible spot, enhancing its precision and accuracy. With a maximum sensing distance of 150 mm and an adjustable field sensor range, this Miniature Laser Sensor is perfect for applications requiring detailed object detection and precise measurements.

Efficient and Seamless Sensor Integration

The Banner Q2XABAF150-Q Miniature Laser Sensor offers seamless connectivity and efficient performance to meet the demands of modern industrial settings. Featuring a 4-pin M8 pigtail quick disconnect, this sensor ensures easy installation and maintenance, minimizing downtime and enhancing productivity. Its intrinsic safety and remote teach capabilities provide added convenience and flexibility. Additionally, with a quick response time and high repeatability, this sensor guarantees accurate and consistent results. Whether you're looking for reliable object detection or intricate measurement tasks, the Banner Q2XABAF150-Q Miniature Laser Sensor delivers exceptional performance and adaptability.

Downloads

Q2XABFF Fixed Field Sensor with Background Suppression.pdf

pdf
Download

Q2XKLAF Laser Measurement Sensor.pdf

pdf
Download

Q2XKLAFAIR IO-Link Data Reference Guide.pdf

pdf
Download

Q2XLP Polarized Retroreflective and Q2XER Opposed Mode Sensors with Visible Red LED.pdf

pdf
Download

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Cable Length (m)
0.15
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background Suppression (Adjustable)
Housing Style
Rectangular
Primary Housing Material
ABS/Polycarbonate
Small Visible Spot
LED
Input Output
Discrete
Max Sensing Distance (mm)
150
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M8
Min Op. Temp. (°C)
-25
Operation
The operating principle of the solenoid valve.
Light Operate
Max Op. Temp. (°C)
50
Output response time (ms)
0.85
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
645
Delay at Power-up (ms)
120
Repeatability (µs)
125
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Mechanical Screw
Indicator
LEDs
Feature: Audible
No
Feature: Quick Disconnect
Yes
