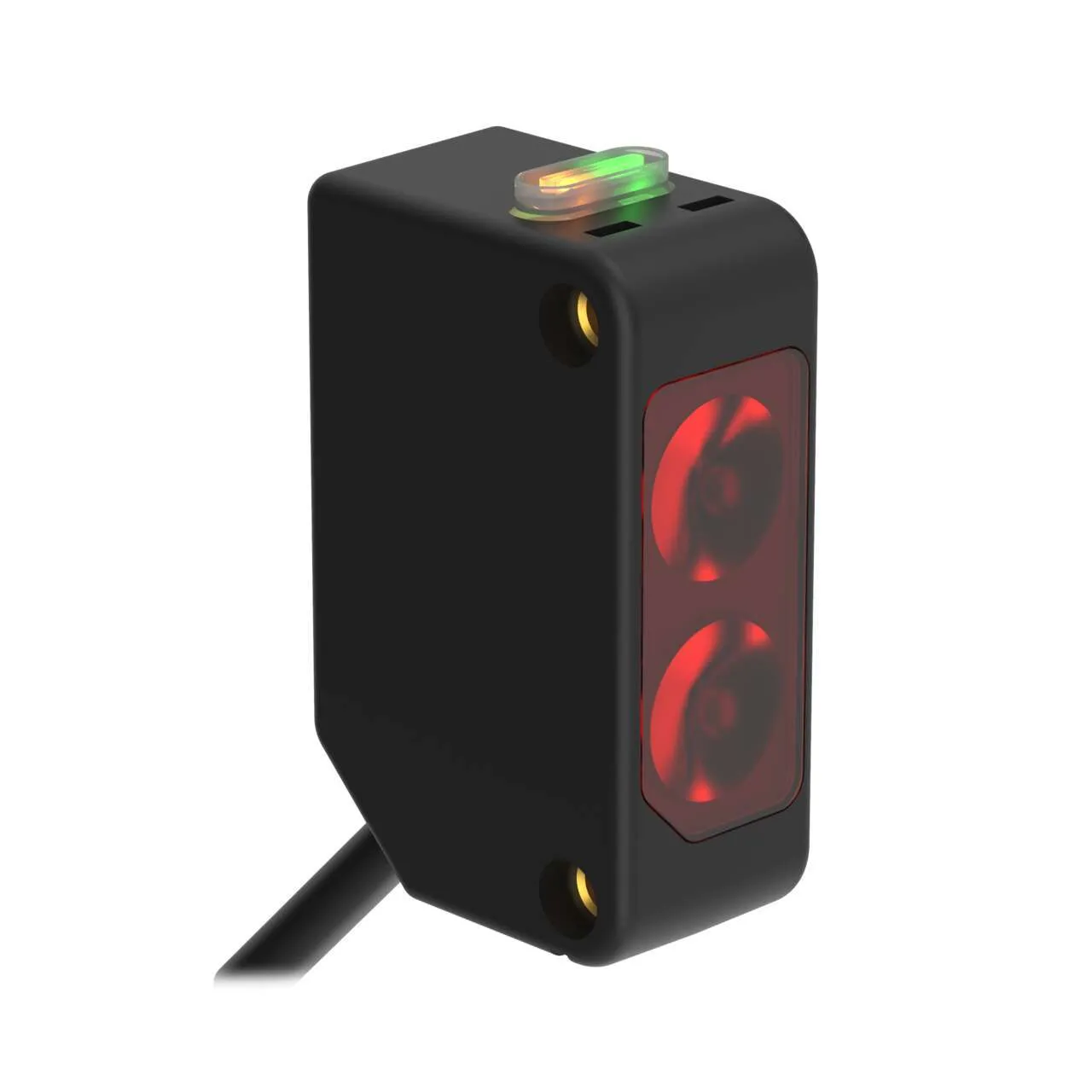

Banner Q20 Series Industry Standard Global Housing Sensor, World-Beam, Long Range Diffuse (Red) Range 800 mm, Input 10-30 V DC, Output PNP Light Operate 6 in Pigtail 3-pin M8 QD, IP67, Q20APDLQ3

Part Number : Q20APDLQ3

Brand :
Banner

The Banner Q20APDLQ3 is a high-performance Industry Standard Global Housing Sensor from the World-Beam Q20 Series, featuring long-range diffuse sensing up to 800 mm with PNP light operation. It is designed with an IP67 rating for reliable use in demanding environments.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Banner Q20APDLQ3 Industry Standard Global Housing Sensor is a versatile and robust sensing solution from the renowned World-Beam Q20 Series. This sensor is engineered for long-range diffuse applications, utilizing a red sensing beam capable of detecting objects up to 800 mm away. Powered by a 10-30 V DC input, it delivers optimal performance with a PNP light operation output. The sensor is housed in a durable casing with an IP67 rating, ensuring its resilience against dust and water ingress, making it suitable for various industrial environments. The sensor features a 6-inch pigtail with a 3-pin M8 Quick Disconnect for easy installation and maintenance. It operates efficiently across a wide temperature range, making it adaptable to diverse operating conditions. With a focus on reliability and precision, the Q20APDLQ3 offers quick response times and high repeatability, ensuring accurate and consistent performance. Whether used in manufacturing, processing, or automation, this sensor provides a high degree of versatility and reliability, supported by Banner's commitment to quality and innovation.

High-Performance Sensors for Automation

The Banner Q20APDLQ3 Industry Standard Global Housing Sensor from the WORLD-BEAM Q20 Series is engineered to deliver exceptional performance in a wide range of industrial applications. Utilizing a long-range diffuse red sensing beam with a wavelength that ensures precision, this sensor excels in detecting objects up to 800 mm away. The robust design, combined with a PNP light operate output, enables seamless integration into existing systems, ensuring reliable operation under diverse conditions. Whether you are managing automated systems or complex machinery, the Q20APDLQ3 provides the dependable sensing capabilities you need to enhance productivity and efficiency.

Durable Sensors for Demanding Applications

Built to withstand harsh environments, the Banner Q20APDLQ3 Industry Standard Global Housing Sensor features an IP67 rating, ensuring protection against dust and water ingress. The sensor's primary housing material is crafted for durability, making it ideal for demanding industrial settings. Its compact housing style allows for easy installation in tight spaces, while the 6-inch pigtail with a 3-pin M8 quick disconnect facilitates convenient connectivity. With a temperature range of operation from minimum to maximum - designed for optimal performance - this sensor is perfect for a variety of applications, from assembly lines to logistics operations.

Smart Connectivity and Efficient Data Control

Powering the Banner Q20APDLQ3 Industry Standard Global Housing Sensor is simplified with its 10-30 V DC input, offering flexibility for integration into various systems. The sensor's power supply and supply voltage compatibility ensure consistent performance across different platforms. With an output response time optimized for fast-paced environments, this Industry Standard Global Housing Sensor is designed to keep up with the most dynamic operational requirements. The quick disconnect feature enhances ease of use, allowing for rapid installation and maintenance, reducing downtime, and ensuring your systems remain operational with minimal disruption.

Downloads

IO-Link Data Reference Guide Q20 EAF.pdf

pdf
Download

Q20 Series Sensor.pdf

pdf
Download

Q20AF Sensor with Background Suppression and IO-Link.pdf

pdf
Download

Q20AF400 Sensor with Background Suppression and IO-Link.pdf

pdf
Download

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Diffuse
Housing Style
Rectangular
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
800
Outputs
PNP
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M8
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
60
Output response time (ms)
0.8
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
655
Delay at Power-up (ms)
100
Repeatability (µs)
155
Number of Pins
3
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Indicator
LEDs
Feature: Audible
No
Feature: Quick Disconnect
Yes
