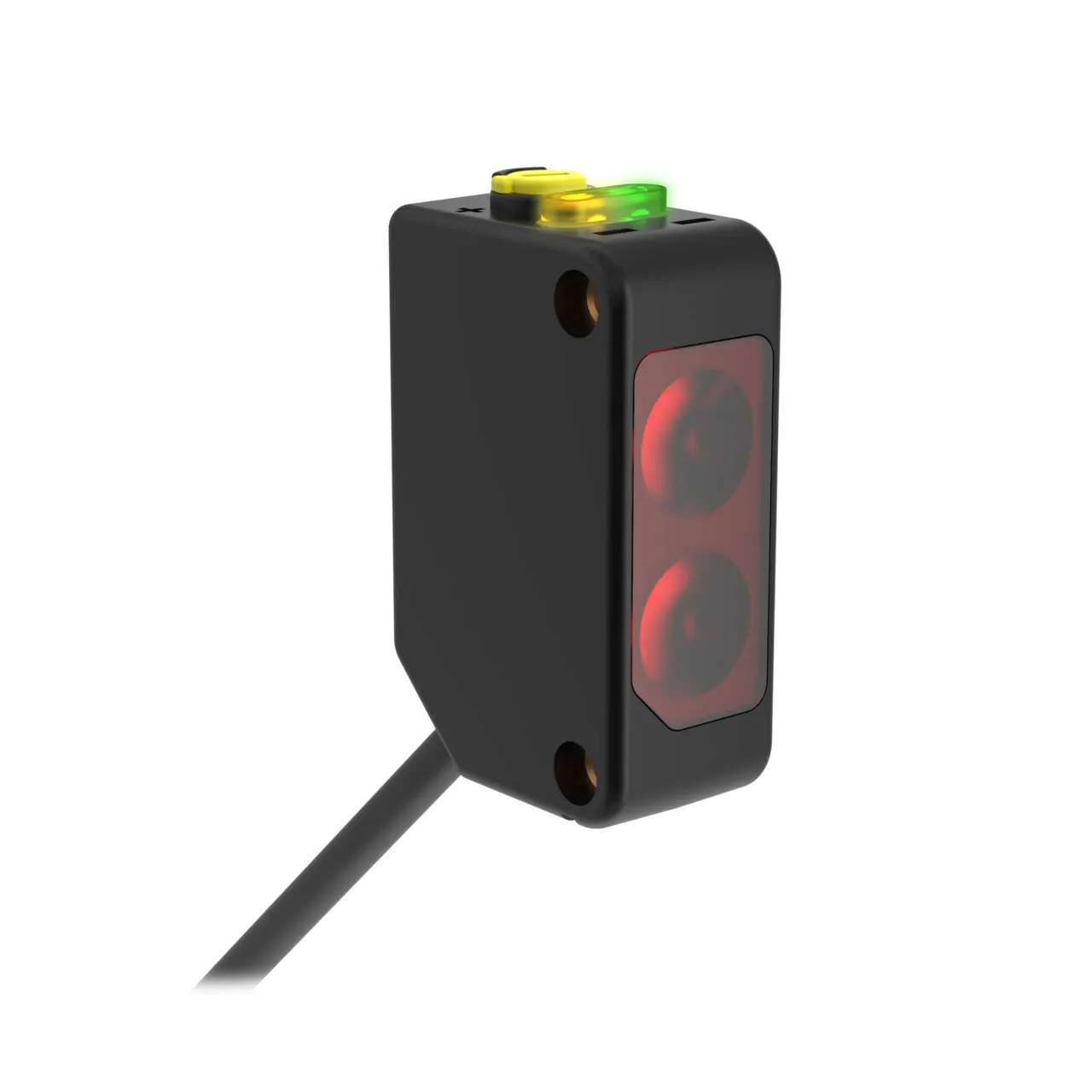

Banner Q20 Series Industry Standard Global Housing Sensor, World-Beam, Diffuse (Red) Range 250 mm, Input 10-30 V DC, Output PNP Light Operate 6 in Pigtail 3-pin M8 QD, IP67, Q20APDQ3

Part Number : Q20APDQ3

Brand :
Banner

The Banner Q20APDQ3 Industry Standard Global Housing Sensor from the World-Beam Q20 Series offers reliable diffuse sensing with a range of up to 250 mm. It operates on 10-30 V DC and includes a PNP light operate output, making it ideal for various industrial applications. Its rugged IP67-rated housing ensures durability in challenging environments.

View all

KWD 34.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner Q20APDQ3 Industry Standard Global Housing Sensor is part of the renowned World-Beam Q20 Series, designed for precise and dependable performance. This diffuse sensor uses a red light beam to detect objects within a 250 mm range, providing versatility for diverse applications. It operates on a 10-30 V DC power supply and features a PNP light operate output, facilitating integration into existing systems. The sensor's compact design includes a 6-inch pigtail with a 3-pin M8 quick disconnect, ensuring easy installation and maintenance. With an IP67 rating, the sensor is protected against dust and water, making it suitable for harsh industrial environments. Additionally, it boasts a fast response time, enhancing operational efficiency. The Q20APDQ3 is engineered for long-lasting performance, offering reliable sensing capabilities in a streamlined package.

High-Performance Sensors for Automation

Discover the cutting-edge technology behind the Banner Q20APDQ3 Industry Standard Global Housing Sensor from the WORLD-BEAM Q20 Series. This state-of-the-art sensor features a diffuse sensing mode with a red light beam, offering a maximum sensing distance of 250 mm. With a sensing beam wavelength designed for precision and accuracy, this sensor ensures reliable detection in a variety of industrial applications. The sensor's quick response time and high repeatability make it an ideal choice for environments where speed and accuracy are critical.

Durable Sensors for Demanding Applications

The Banner Q20APDQ3 Industry Standard Global Housing Sensor is engineered for durability and reliability in challenging conditions. With an IP67 rating, this sensor is protected against dust and water ingress, ensuring optimal performance in demanding industrial settings. Its housing is crafted from high-quality materials, providing robust protection and longevity. The sensor's wide operating temperature range and high relative humidity tolerance further enhance its suitability for diverse environments, making it a trusted choice for any application requiring reliable sensor technology.

Smart Connectivity and Efficient Data Control

Integrate the Banner Q20APDQ3 Industry Standard Global Housing Sensor seamlessly into your existing systems with its versatile connectivity options. The sensor features a 6-inch pigtail with a 3-pin M8 Quick Disconnect, allowing for quick and easy installation and replacement. Its PNP light operate output and adjustable settings ensure compatibility with various control systems. The sensor's intuitive design and comprehensive indicator features make monitoring and maintenance straightforward, maximizing efficiency and minimizing downtime in your operations.

Downloads

IO-Link Data Reference Guide Q20 EAF.pdf

pdf
Download

Q20 Series Sensor.pdf

pdf
Download

Q20AF Sensor with Background Suppression and IO-Link.pdf

pdf
Download

Q20AF400 Sensor with Background Suppression and IO-Link.pdf

pdf
Download

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Diffuse
Housing Style
Rectangular
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
250
Outputs
PNP
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M8
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
60
Output response time (ms)
0.8
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
655
Delay at Power-up (ms)
100
Repeatability (µs)
155
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Indicator
LEDs
Feature: Audible
No
Feature: Quick Disconnect
Yes
