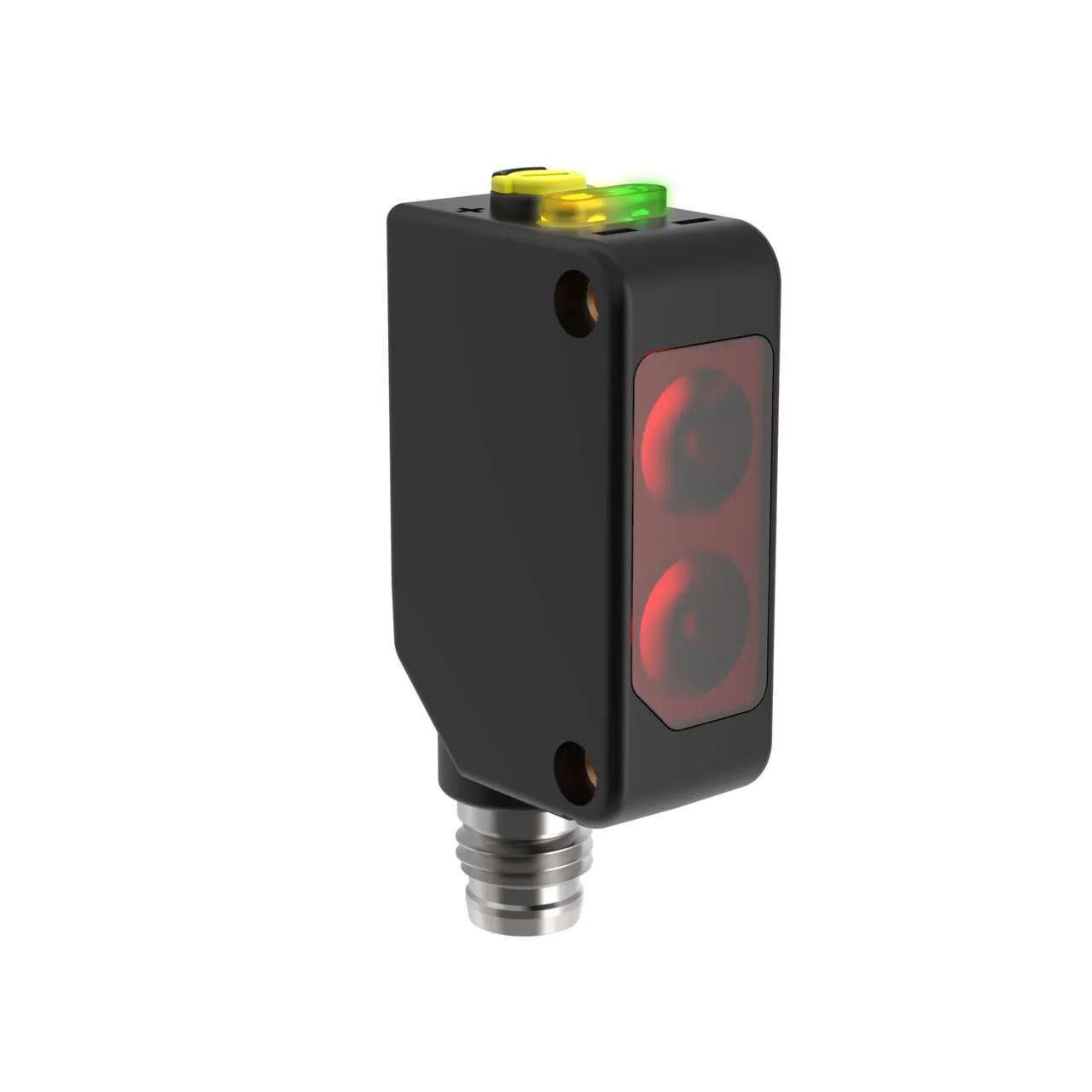

Banner Q20 Series Industry Standard Global Housing Sensor, World-Beam, Diffuse (Red) Range 250 mm, Input 10-30 V DC, Output Complementary Solid-State NPN M8 Integral QD, IP67, Q20NDQ7

Part Number : Q20NDQ7

Brand :
Banner

The Banner Q20NDQ7 Industry Standard Global Housing Sensor from the World-Beam Q20 Series is a reliable diffuse sensor with a range of 250 mm, designed for precise detection tasks. It features a complementary solid-state NPN output and operates with an input voltage of 10-30 V DC. The sensor is equipped with an M8 integral quick disconnect and an IP67 rating, ensuring robust performance in challenging environments.

View all

KWD 31.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner Q20NDQ7 Industry Standard Global Housing Sensor, part of the renowned World-Beam Q20 Series, is engineered for high-precision sensing applications. Utilizing a diffuse (red) sensing mode, this sensor can accurately detect objects up to 250 mm away. It is powered by a 10-30 V DC supply and delivers a complementary solid-state NPN output, making it suitable for various industrial automation tasks. The sensor's housing is designed to withstand harsh conditions, with an IP67 rating providing protection against dust and water ingress. Its compact design includes an M8 integral quick disconnect for easy installation and maintenance, enhancing its operational efficiency. With a solid-state output and a robust build, the Q20NDQ7 ensures reliable performance in environments with high humidity and temperature variations. Incorporating advanced technology, this sensor offers quick response times and high repeatability, minimizing errors and maximizing productivity. Whether used in manufacturing, packaging, or assembly lines, the Banner Q20NDQ7 Industry Standard Global Housing Sensor is an ideal choice for applications requiring precise and dependable object detection.

High-Performance Sensors for Automation

Discover the superior performance of the Banner Q20NDQ7 Industry Standard Global Housing Sensor, part of the world-renowned WORLD-BEAM Q20 Series. Designed with a diffuse sensing mode, this Industry Standard Global Housing Sensor offers a robust sensing range of up to 250 mm, making it ideal for a variety of industrial applications. Powered by an input voltage of 10-30 V dc and featuring complementary solid-state NPN outputs, this sensor ensures reliable and efficient operation. With its IP67 rating, the Q20NDQ7 is built to withstand harsh environments, providing excellent durability and longevity.

Durable Sensors for Demanding Applications

The Banner Q20NDQ7 Industry Standard Global Housing Sensor is engineered with versatility in mind, featuring a sturdy housing style that ensures optimal performance in demanding conditions. Its primary housing material is designed to withstand extreme temperatures, ranging from a minimum operating temperature of -20°C to a maximum of 70°C. The sensor's quick disconnect type, an integral M8 QD, facilitates easy installation and maintenance. Additionally, the Banner Q20NDQ7 offers a rapid output response time, enhancing its effectiveness in fast-paced industrial settings.

Smart Connectivity and Efficient Data Control

Safety and functionality are at the forefront of the Banner Q20NDQ7 Industry Standard Global Housing Sensor's design. Equipped with special features such as remote teach capabilities and water detection, this sensor adapts seamlessly to diverse operational needs. The sensing beam, with a wavelength tailored for precision, ensures high accuracy in detection tasks. The sensor's intrinsically safe design makes it suitable for hazardous locations, providing peace of mind in sensitive environments. Its repeatability ensures consistent performance, while the user-friendly adjustments and indicators facilitate ease of use and monitoring.

Downloads

IO-Link Data Reference Guide Q20 EAF.pdf

pdf
Download

Q20 Series Sensor.pdf

pdf
Download

Q20AF Sensor with Background Suppression and IO-Link.pdf

pdf
Download

Q20AF400 Sensor with Background Suppression and IO-Link.pdf

pdf
Download

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Diffuse
Housing Style
Rectangular
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
250
Outputs
NPN
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M8
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
60
Output response time (ms)
0.8
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
655
Delay at Power-up (ms)
100
Repeatability (µs)
155
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Indicator
LEDs
Feature: Audible
No
Feature: Quick Disconnect
Yes
