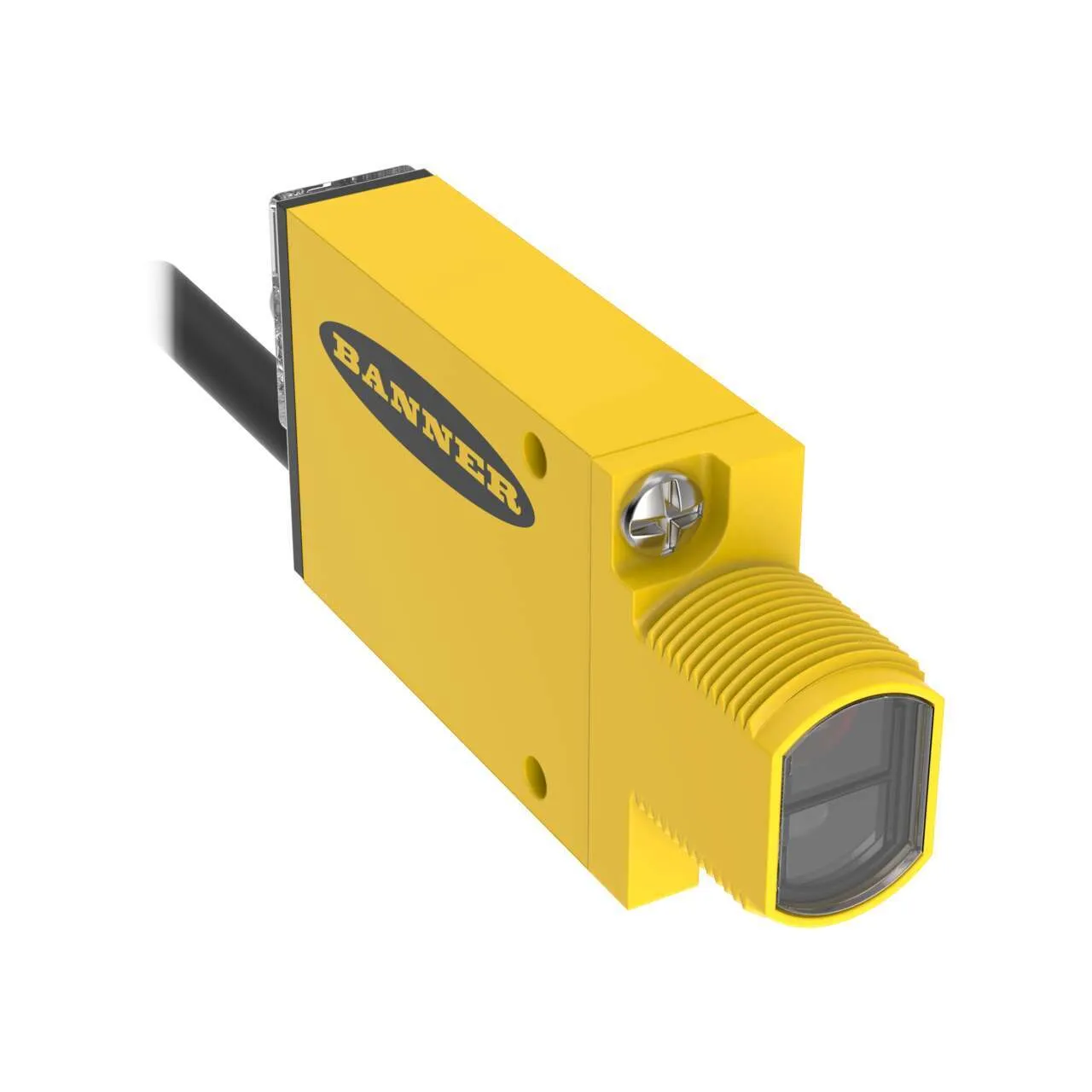

Banner MINI-BEAM Series Industry Standard Sensor, SMU315WQDP, Compact Design, Reliable Performance, Versatile Application

Part Number : SMU315WQDP

Brand :
Banner

The Banner MINI-BEAM Series, SMU315WQDP, is a compact, reliable industry-standard sensor designed for versatile applications. With features like a high IP rating, durable construction, and efficient performance, it ensures optimal sensing capabilities across various environments.

View all

KWD 74.000

Quantity
Description
Specifications
Related products

Description

The Banner MINI-BEAM Series, SMU315WQDP, represents the pinnacle of sensor technology, offering a compact design that doesn't compromise on performance. Engineered to meet industry standards, this sensor is equipped with an impressive IP rating, ensuring robust protection against dust and water ingress, making it ideal for challenging environments. Its NEMA/UL Type rating further guarantees its suitability for industrial applications. With a versatile cable length, the MINI-BEAM Series adapts to different installation needs, providing flexibility without sacrificing performance. The precision-engineered sensing beam, supported by a detailed sensing mode, ensures accurate detection and measurement, catering to both general and specific requirements. The sensor's efficient power consumption and innovative design enhance its reliability, while its housing style and primary material offer durability and resilience. The SMU315WQDP model features a quick disconnect type for ease of installation and maintenance, and its output response time is optimized for rapid processing, ensuring timely operations. Operating efficiently across a wide temperature range, the sensor maintains consistent performance even in extreme conditions, withstanding high humidity levels. Its encapsulated design provides additional protection and longevity, while the user-friendly adjustments and indicators make it easy to operate and monitor. Whether for simple or complex applications, the Banner MINI-BEAM Series, SMU315WQDP, delivers exceptional performance with reliable and versatile sensing solutions.

Product Overview

The Banner MINI-BEAM Series, model SMU315WQDP, is an industry-standard sensor known for its compact design and reliable performance. This versatile sensor is suitable for a wide range of applications, providing efficient and accurate sensing capabilities. Designed to meet the rigorous demands of industrial environments, the MINI-BEAM Series is engineered for durability and adaptability, ensuring consistent performance in various settings.

Technical Specifications

The Banner MINI-BEAM Series sensor is equipped with a comprehensive set of specifications designed to meet diverse sensing needs. Key specifications include:

Features and Benefits

The Banner MINI-BEAM Series sensor is packed with features aimed at enhancing user experience and operational efficiency. Its encapsulated design provides protection against harsh conditions, ensuring longevity and reliability. The sensor also includes audible alerts, offering quick feedback and enhancing safety. The quick disconnect feature simplifies installation and maintenance, reducing downtime and improving productivity. These features collectively provide users with a robust and efficient sensing solution tailored for industrial applications.

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Cable Length (m)
0.15
Sensing Beam
Infrared LED
Power
AC/DC Universal
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Divergent
Housing Style
Rectangular
Primary Housing Material
Thermoplastic
Input Output
E/M Relay
Max Sensing Distance (mm)
130
Outputs
SPDT e/m Relay
Power Supply/Supply Voltage
24-240 V ac/dc
Connection
Pigtail QD
Quick Disconnect Type
1/2 in. (Micro)
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
55
Output response time (ms)
20
Number of Pins
5
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Indicator
LEDs
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
