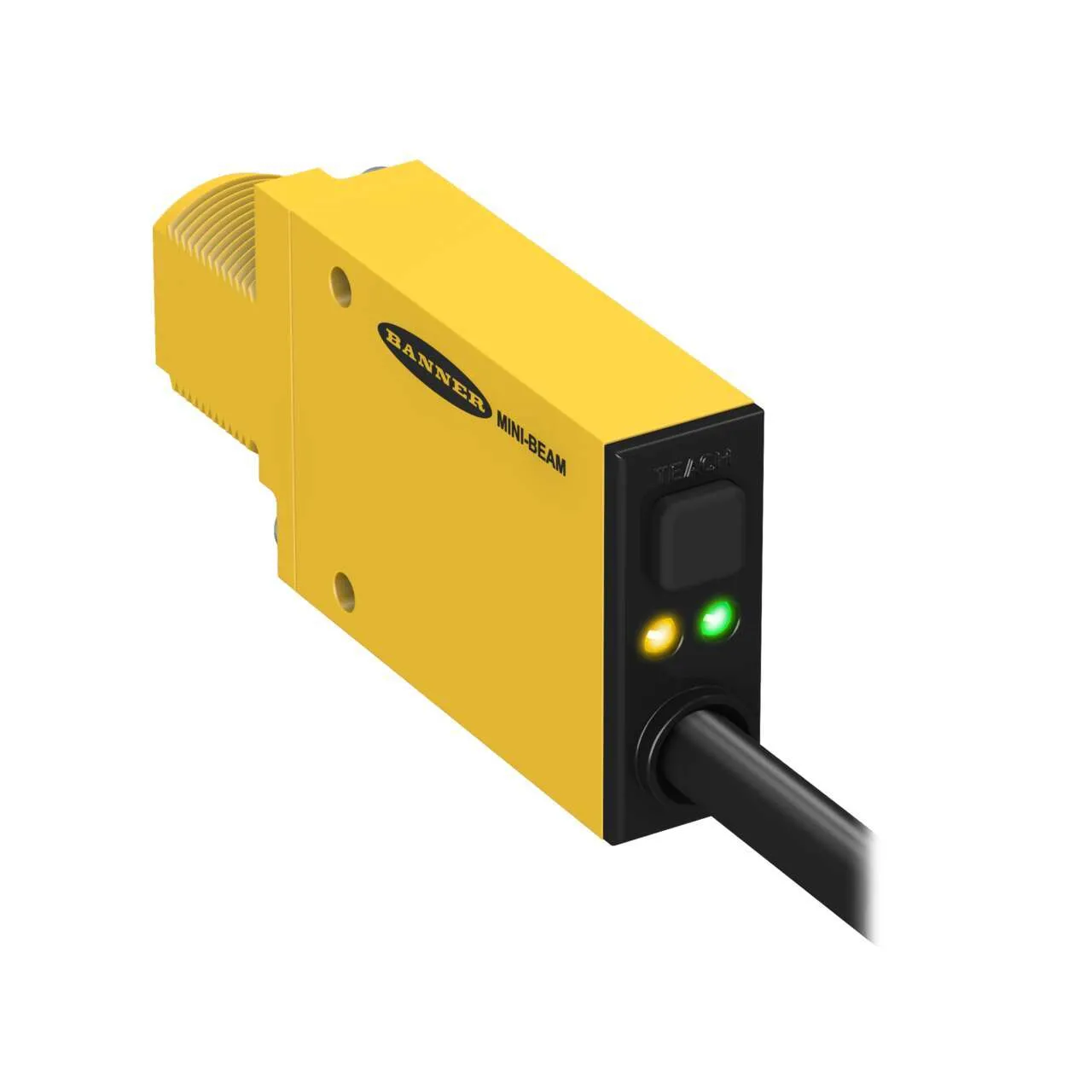

Banner MINI-BEAM Series Industry Standard Sensor, SME312WQDP

Part Number : SME312WQDP

Brand :
Banner

The Banner MINI-BEAM Series SME312WQDP is an industry-standard sensor known for its robust design and reliable performance. It features a versatile sensing mode and a compact housing, making it ideal for various industrial applications.

View all

KWD 55.000

Quantity
Description
Specifications
Related products

Description

The Banner MINI-BEAM Series SME312WQDP sensor is a high-performance sensing solution designed for demanding industrial environments. It boasts an impressive IP rating and NEMA/UL type rating, ensuring durability and resistance to harsh conditions. With a compact design and a cable length tailored for easy installation, this sensor employs a specific sensing beam for accurate detection. It operates on a reliable power supply and features both general and detailed sensing modes, allowing for flexibility in application. The housing style is designed for durability, utilizing a primary housing material that withstands industrial wear and tear. The sensor's input-output configuration supports seamless integration into existing systems. It offers a maximum sensing distance in millimeters for precise operation, coupled with dependable outputs for consistent performance. Power supply voltage is optimized for efficiency, and connection options, including a quick disconnect type, ensure ease of maintenance and adaptability. The sensor functions effectively across a wide operating temperature range, with a remote teach feature for convenient setup. It also features encapsulated components for enhanced protection, and an audible indicator for immediate feedback. Quick disconnect capabilities further enhance its user-friendliness, making the Banner MINI-BEAM Series SME312WQDP a reliable and versatile choice for industrial sensing applications.

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Cable Length (m)
0.15
Sensing Beam
Infrared LED
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Divergent
Housing Style
Rectangular
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
130
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
0.5
Special Feature: Remote Teach
Yes
Delay at Power-up (ms)
1000
Repeatability (µs)
100
Number of Pins
5
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Acrylic
Adjustments
Teach Button
Indicator
LEDs
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
