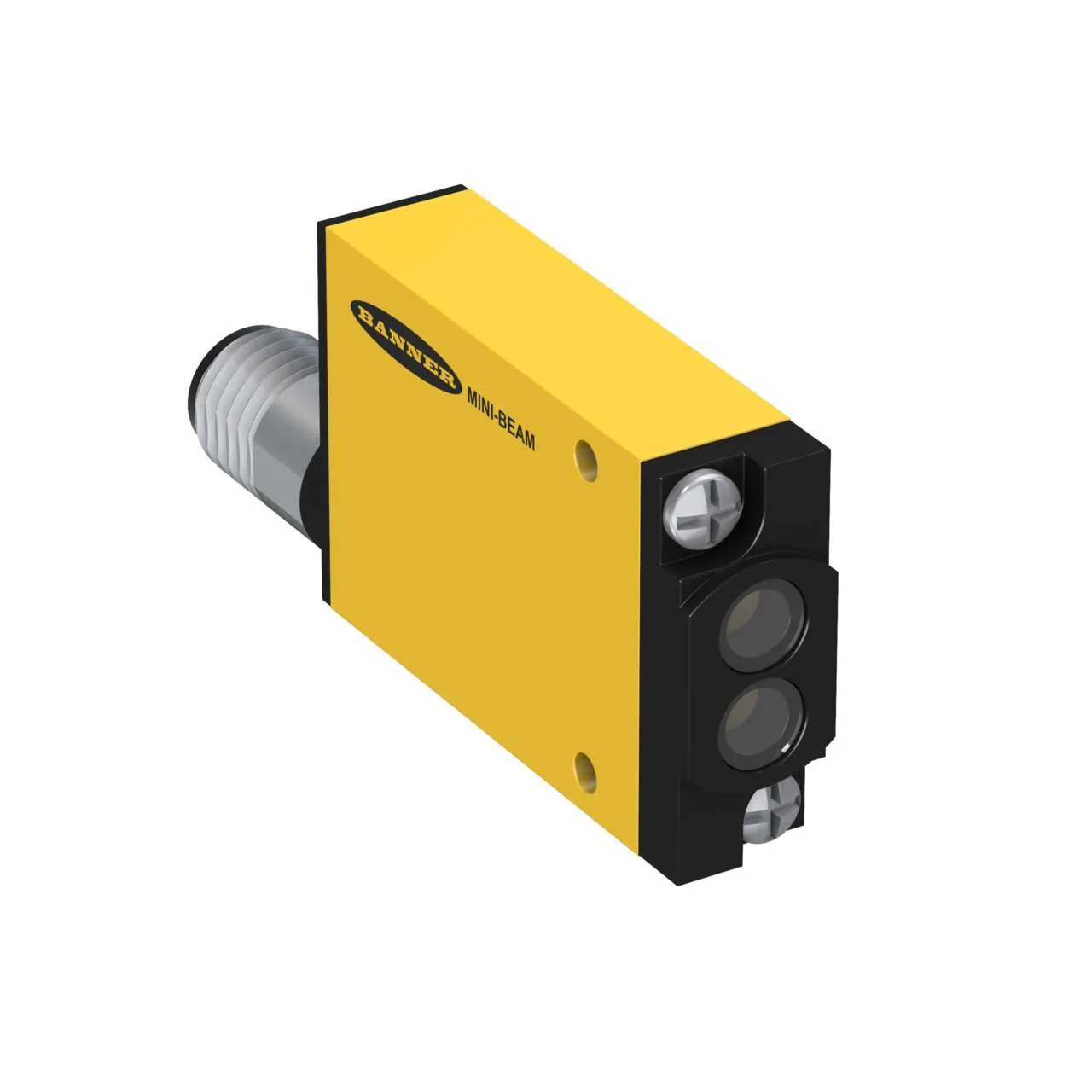

Banner MINI-BEAM Series Industry Standard Sensor, SME312WQD, Compact Size, High Sensitivity, Easy Installation

Part Number : SME312WQD

Brand :
Banner

The Banner MINI-BEAM Series SME312WQD is a compact and high-sensitivity industry standard sensor designed for easy installation. It features a robust design, versatile sensing capabilities, and reliable performance in various industrial environments.

View all
Quantity
Description
Specifications
Related products

Description

The Banner MINI-BEAM Series SME312WQD is an industry-standard sensor that offers exceptional performance in a compact form factor. Engineered with high sensitivity, this sensor is ideal for applications requiring precise and reliable detection. It comes with an IP rating and NEMA/UL type rating, ensuring durability and protection against harsh environments. The sensor utilizes a specialized sensing beam, powered efficiently, and provides a versatile sensing mode to cater to different operational needs. Its compact housing is crafted from high-quality materials to ensure longevity and stability. The SME312WQD supports convenient input-output configurations and a maximum sensing distance in millimeters, making it suitable for a wide range of applications. It operates on a stable power supply with specific supply voltage requirements and includes a quick disconnect feature for seamless installation and maintenance. The sensor is designed to function optimally within a defined temperature range and offers a rapid output response time, enhancing its suitability for dynamic industrial processes. Additionally, the sensor features remote teach capabilities, ensuring easy setup and adjustment. It includes indicators for operational status, and its encapsulated design adds an extra layer of protection. With a quick disconnect type and adjustable settings, the SME312WQD is both user-friendly and efficient. This reliable sensor is also EPLAN certified, with its original data sent on a specified date, ensuring it meets the highest industry standards.

Product Overview

The Banner MINI-BEAM Series, model SME312WQD, is an industry-standard sensor known for its compact size, high sensitivity, and ease of installation. Designed to meet the rigorous demands of various industrial applications, this sensor offers exceptional performance and reliability. Its compact design allows for seamless integration into tight spaces, making it an ideal choice for environments where space is at a premium. The high sensitivity of the sensor ensures accurate and precise detection, providing consistent results across a wide range of applications.

Key Specifications

The SME312WQD sensor is engineered with a comprehensive set of specifications to meet diverse operational requirements:

Advanced Features and Compliance

The Banner MINI-BEAM SME312WQD sensor is equipped with advanced features designed to enhance functionality and user convenience:

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Infrared LED
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Divergent
Housing Style
Rectangular
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
130
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
0.5
Special Feature: Remote Teach
Yes
Delay at Power-up (ms)
1000
Repeatability (µs)
100
Number of Pins
5
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Acrylic
Adjustments
Teach Button
Indicator
LEDs
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
EPLAN Status
Published
EPLAN Original Sent Date
02/15/2024
