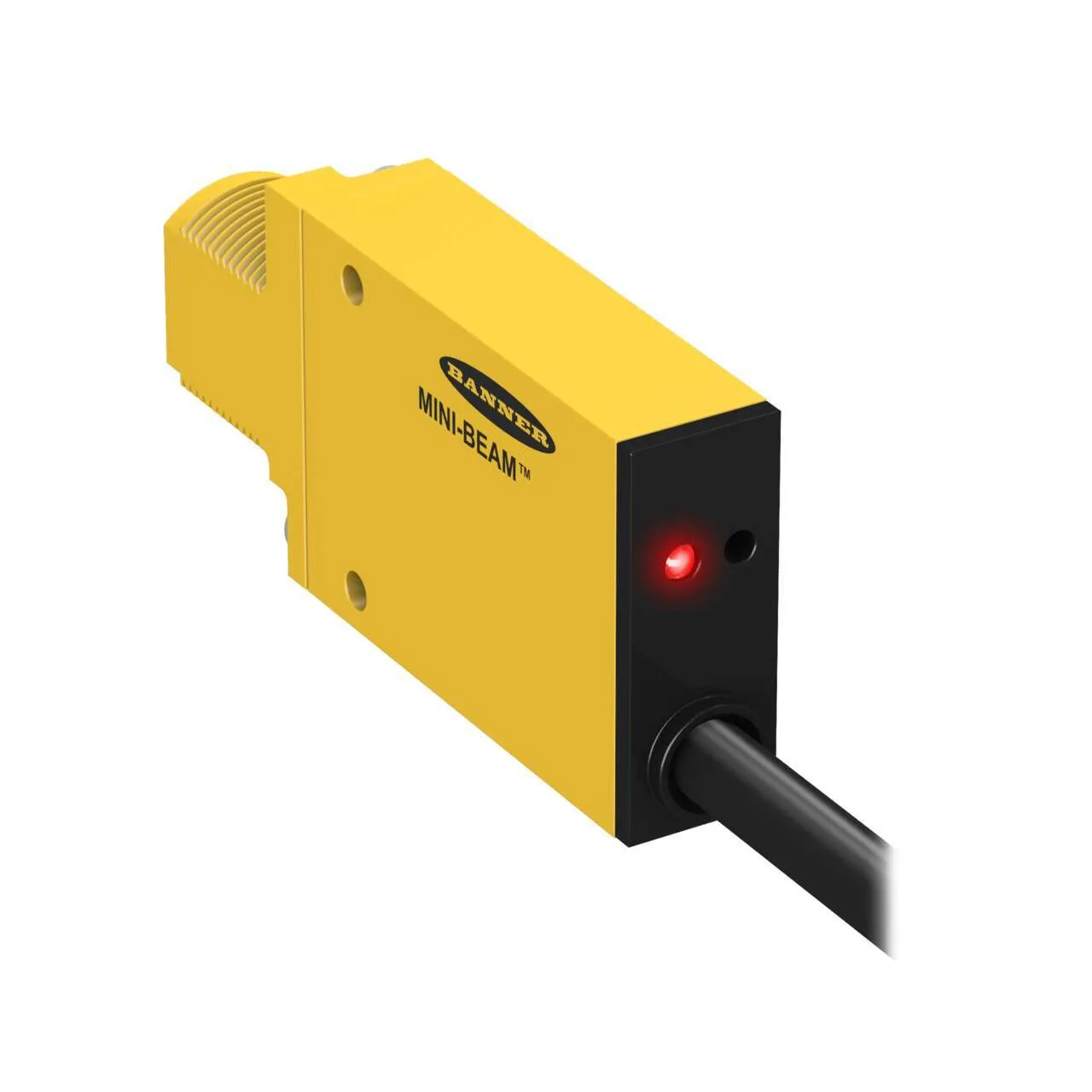

Banner MINI-BEAM Series Industry Standard Sensor, SMA31ELQDP, Compact Design, Versatile Mounting, Reliable Detection.

Part Number : SMA31ELQDP

Brand :
Banner

The Banner MINI-BEAM Series sensor, model SMA31ELQDP, is a compact, reliable, and versatile industrial sensor. Designed for industry-standard applications, it offers a robust detection system with flexible mounting options, making it suitable for various environments.

View all

KWD 38.000

Quantity
Description
Specifications
Related products

Description

The Banner MINI-BEAM Series sensor, specifically the SMA31ELQDP model, is engineered to meet the demands of modern industrial applications with its compact design and versatile mounting capabilities. Featuring an industry-standard configuration, this sensor ensures reliable detection performance across diverse environments. It boasts a high IP Rating, ensuring protection against dust and water ingress, and complies with NEMA / UL Type Rating standards, signifying its robust construction and suitability for harsh industrial settings. The sensor is equipped with a sensing beam capable of detecting objects accurately over a maximum sensing distance of several millimeters. The device operates efficiently with its specified power supply voltage and offers various sensing modes tailored to specific application needs. Its primary housing material provides durability, while the lens material enhances optical performance. The device's connectivity features include options for quick disconnect, facilitating easy installation and maintenance. For temperature resilience, the MINI-BEAM sensor operates effectively within a wide temperature range, ensuring consistent performance in fluctuating conditions. Its encapsulated design further adds to its reliability by protecting internal components from environmental hazards. Additionally, the sensor's repeatability in microseconds ensures precision in repeated operations, and its indicator feature provides users with immediate visual feedback on operational status. Overall, the Banner MINI-BEAM Series sensor combines advanced features with a user-friendly design, making it an ideal choice for industries requiring dependable and efficient sensor technology.

Product Overview

The Banner MINI-BEAM Series SMA31ELQDP is an industry-standard sensor known for its compact design, versatile mounting options, and reliable detection capabilities. It is engineered to meet the demands of various industrial applications, providing consistent performance and durability. This sensor is ideal for environments requiring precise sensing solutions, showcasing its adaptability and robustness across different use cases.

Technical Specifications

The MINI-BEAM sensor boasts an array of impressive specifications:

Features and Compliance

The Banner MINI-BEAM Series is equipped with several features ensuring enhanced functionality:

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Cable Length (m)
0.15
Sensing Beam
Infrared LED
Power
AC
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Emitter
Housing Style
Rectangular w/M18 Mount
Primary Housing Material
Thermoplastic
Max Sensing Distance (mm)
30000
Power Supply/Supply Voltage
24-240 V ac
Connection
Pigtail QD
Quick Disconnect Type
1/2 in. (Micro)
Min Op. Temp. (°C)
-20
Max Op. Temp. (°C)
70
Repeatability (µs)
300
Number of Pins
3
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Barrel Diameter (mm)
18
Indicator
LEDs
Opposed Mode Emitter/Receiver
Emitter
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
EPLAN Status
Published
EPLAN Original Sent Date
02/15/2024
