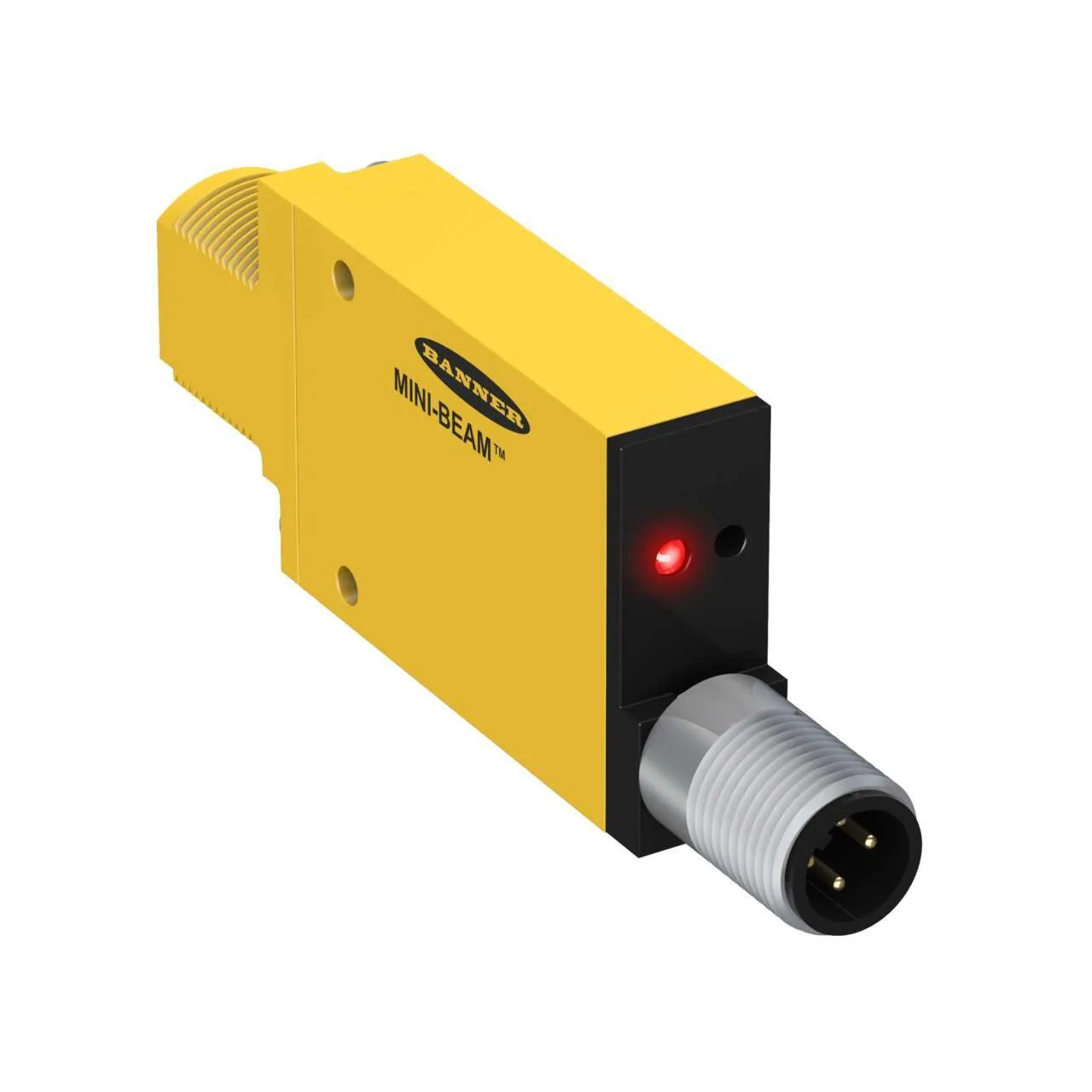

Banner MINI-BEAM Series Industry Standard Sensor, SMA31ELQD, Compact Design, High Performance, Reliable Detection

Part Number : SMA31ELQD

Brand :
Banner

The Banner MINI-BEAM Series, featuring the SMA31ELQD model, is a compact, high-performance sensor known for its reliable detection capabilities in various industrial applications. Designed to meet industry standards, it offers a robust solution with a versatile sensing beam and a durable housing.

View all
Quantity
Description
Specifications
Related products

Description

The Banner MINI-BEAM Series, specifically the SMA31ELQD sensor, is engineered to provide exceptional performance and reliability in industrial environments. Its compact design does not compromise on functionality, making it suitable for a wide range of applications where space is at a premium. Key specifications include an IP-rated, NEMA/UL type-rated housing that ensures protection against harsh conditions and a versatile sensing beam that adapts to various detection needs. The sensor operates on a standard power supply, with a detailed sensing mode that enhances accuracy. Its robust housing style, crafted from high-quality primary materials, ensures durability. It boasts a maximum sensing distance in millimeters, making it effective for precise detection tasks. The power supply/supply voltage parameters offer flexibility in integration, and the quick disconnect type ensures ease of installation and maintenance. Operationally, the sensor functions efficiently across a range of temperatures, ensuring reliability in diverse environments. With a high repeatability measured in microseconds, it guarantees consistent performance. The connection features a specific number of pins, and the max operational relative humidity percentage affirms its suitability for varied conditions. The lens material and adjustments facilitate customization to meet specific application needs. The barrel diameter in millimeters indicates its compact form factor, while the indicator provides real-time feedback on sensor status. Additional features include an encapsulated design for added protection, audible alerts for user convenience, and a quick disconnect feature for rapid setup. The EPLAN status and original sent date are noted for reference, ensuring all technical details are up-to-date and standardized for seamless integration into industrial systems.

Product Overview

The Banner MINI-BEAM Series, featuring the SMA31ELQD model, is an industry-standard sensor renowned for its compact design and high performance. Engineered for reliable detection, this sensor is ideal for various industrial applications where precision and durability are paramount. Its compact form allows for easy integration into space-constrained environments, ensuring seamless operation without compromising on performance.

Technical Specifications

The MINI-BEAM Series sensor boasts an impressive array of technical specifications designed to meet rigorous industrial standards. Key features include an IP Rating for robust protection against dust and moisture, and a NEMA/UL Type Rating for reliable performance in demanding environments. The sensor operates with a versatile sensing beam and offers multiple sensing modes, both general and detailed, to cater to diverse application needs. It is powered efficiently and designed with a durable housing style and primary housing material for longevity and resilience. With a maximum sensing distance of several millimeters, a range of operating temperatures, and high repeatability, this sensor is equipped to handle various industrial challenges. Additional specifications such as connection type, quick disconnect options, number of pins, and more ensure adaptability and ease of use.

Features and Additional Information

The Banner MINI-BEAM Series sensor incorporates several advanced features to enhance functionality and user experience. These include encapsulation for added protection, an audible feature for alert notifications, and a quick disconnect feature for swift and efficient installation and maintenance. The sensor is also equipped with clear indicators for operational status, ensuring ease of monitoring. The opposed mode emitter/receiver feature provides versatile application options, while its barrel diameter and lens material are designed for optimal performance. For those seeking detailed documentation and integration support, the product's EPLAN status and original sent date offer valuable insights into its development and availability.

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Infrared LED
Power
AC
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Emitter
Housing Style
Rectangular w/M18 Mount
Primary Housing Material
Thermoplastic
Max Sensing Distance (mm)
30000
Power Supply/Supply Voltage
24-240 V ac
Connection
Integral QD
Quick Disconnect Type
1/2 in. (Micro)
Min Op. Temp. (°C)
-20
Max Op. Temp. (°C)
70
Repeatability (µs)
300
Number of Pins
3
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Barrel Diameter (mm)
18
Indicator
LEDs
Opposed Mode Emitter/Receiver
Emitter
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
EPLAN Status
Published
EPLAN Original Sent Date
01/11/2023
