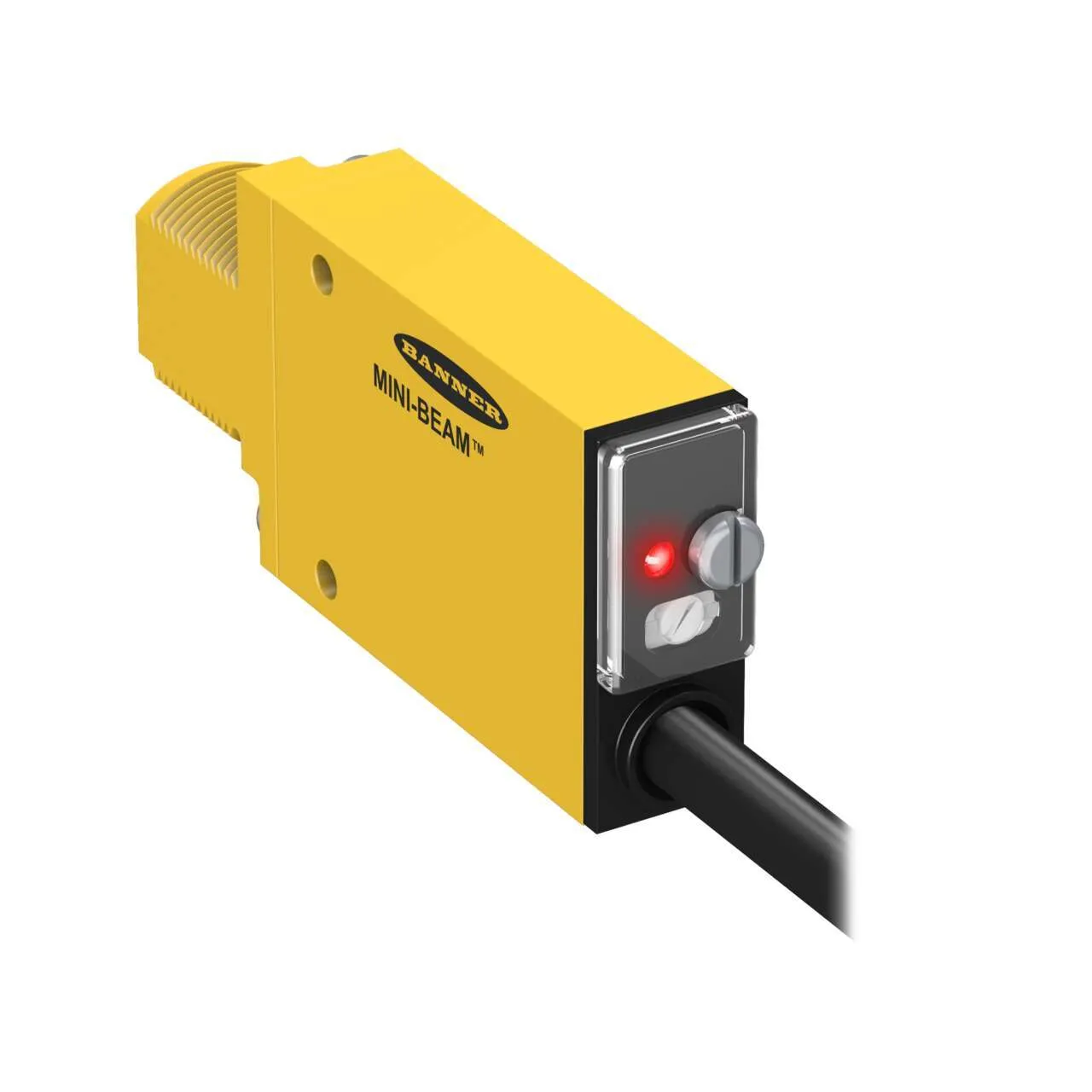

Banner MINI-BEAM Series Industry Standard Sensor, SM31RL100QDP, Compact Design, Versatile Mounting Options, Reliable Performance

Part Number : SM31RL100QDP

Brand :
Banner

The Banner MINI-BEAM Series SM31RL100QDP is a compact, industry-standard sensor designed for reliable performance with versatile mounting options. It features robust specifications suitable for various industrial applications, making it a dependable choice for precise sensing tasks.

View all

KWD 45.000

Quantity
Description
Specifications
Related products

Description

The Banner MINI-BEAM Series SM31RL100QDP is an advanced sensor engineered to meet the rigorous demands of industrial environments. With a compact design, this sensor offers versatile mounting options, allowing for easy integration into various systems. It boasts a high IP Rating and NEMA / UL Type Rating, ensuring protection against dust and water ingress, making it ideal for harsh conditions. The sensor features a reliable sensing beam with a maximum sensing distance of several millimeters, making it suitable for precise detection tasks. Its housing is crafted from durable materials, providing long-lasting performance and resilience. The device supports multiple input and output configurations, enhancing its adaptability to different operational requirements. Equipped with quick disconnect functionality and an encapsulated design, the SM31RL100QDP ensures ease of maintenance and robust protection against external factors. The sensor operates efficiently over a wide temperature range and high humidity levels, maintaining optimal performance under diverse environmental conditions. The MINI-BEAM Series sensor includes an array of features, such as adjustable settings and an indicator for operational status, further simplifying its use in automation processes. Overall, the Banner SM31RL100QDP is a versatile and reliable sensor solution, tailored for precision and efficiency in industrial applications.

Product Overview

The Banner MINI-BEAM Series, SM31RL100QDP, is an industry-standard sensor known for its compact design and versatile mounting options. Engineered for reliable performance, this sensor is ideal for various industrial applications. The MINI-BEAM Series is designed to deliver consistent and precise sensing capabilities, making it a preferred choice for professionals seeking robustness and reliability in their operations.

Technical Specifications

The Banner MINI-BEAM Series sensor is equipped with a comprehensive set of specifications to meet diverse operational requirements:

Additional Features and Compliance

The Banner MINI-BEAM sensor is packed with features that enhance its functionality and compliance:

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Cable Length (m)
0.15
Sensing Beam
Infrared LED
Power
DC
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Receiver
Housing Style
Rectangular w/M18 Mount
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
30000
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
1
Delay at Power-up (ms)
100
Repeatability (µs)
140
Number of Pins
4
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Barrel Diameter (mm)
18
Indicator
LEDs
Opposed Mode Emitter/Receiver
Receiver
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
EPLAN Status
Published
EPLAN Original Sent Date
02/15/2024
