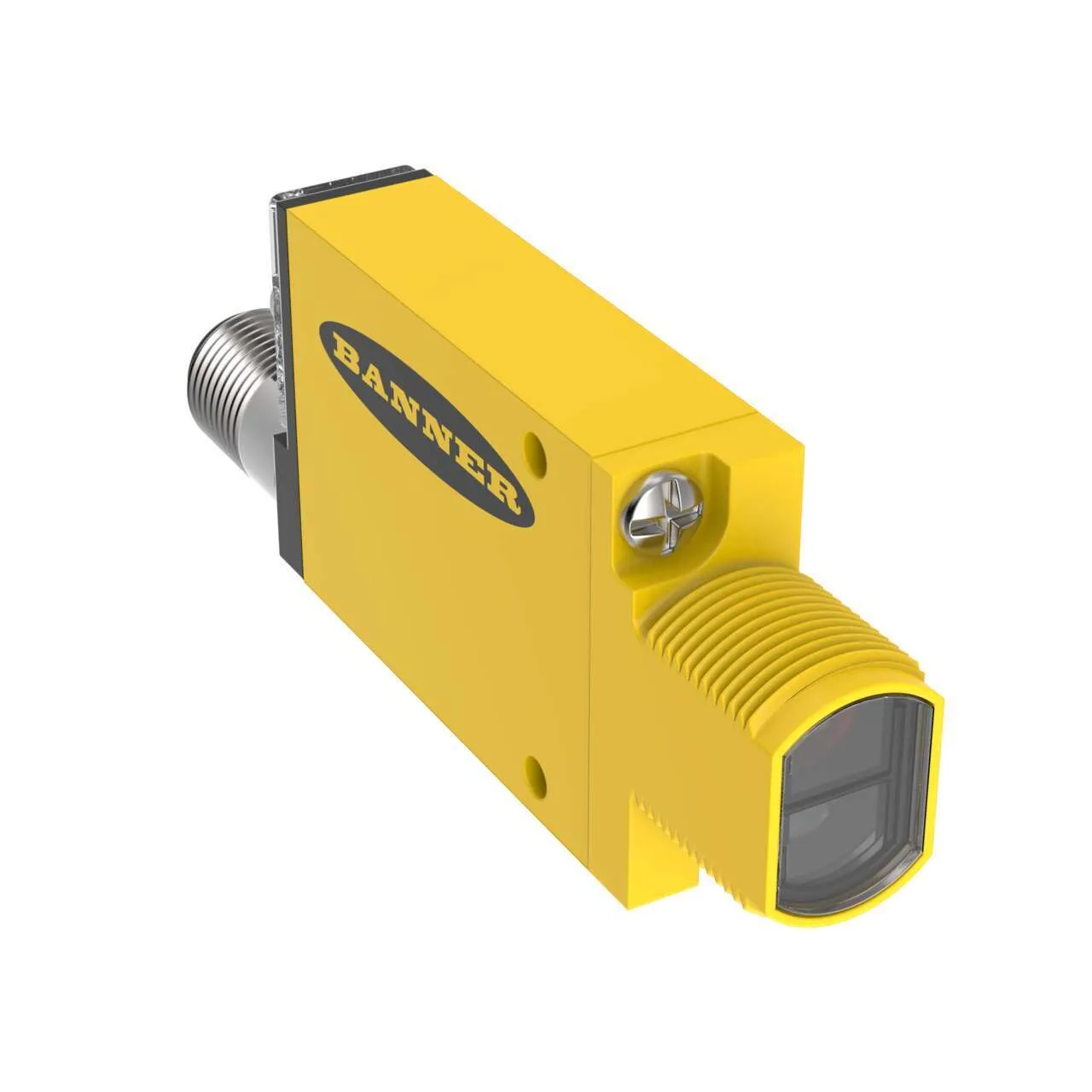

Banner MINI-BEAM Series Industry Standard Sensor, SM31RDLBQD, Compact Design, Reliable Performance, Versatile Application.
.webp)
.webp)
Part Number : SM31RDLBQD
Brand :
![Banner]()
The Banner MINI-BEAM Series SM31RDLBQD sensor is a compact, industry-standard solution known for its reliable performance and versatile application. Designed for varied environments, this sensor offers dependable sensing capabilities with a quick disconnect feature for easy installation and maintenance.
View all
KWD 40.000
Quantity
Description
Specifications
Related
products
Description
The Banner MINI-BEAM Series SM31RDLBQD sensor is engineered to provide robust and precise sensing solutions across diverse industrial applications. Its compact design ensures seamless integration into tight spaces, while maintaining high performance. The sensor is equipped with an IP-rated enclosure, offering protection against dust and water ingress, and meets NEMA/UL type ratings for added durability. The sensor utilizes a specific sensing beam and mode, delivering superior detection capabilities. It operates efficiently on a wide range of power supplies, ensuring consistent performance. The housing is crafted from high-quality materials, offering resistance to harsh conditions, and features a versatile quick disconnect type for hassle-free connectivity. With a maximum sensing distance measured in millimeters, the SM31RDLBQD sensor is suitable for applications requiring precise object detection. The device supports multiple outputs, providing flexibility in response to various industrial needs, and maintains reliable operation across a broad temperature range. Additional features include a quick response time, minimal delay at power-up, and excellent repeatability. The sensor's design incorporates user-friendly adjustments and indicators for easy setup and monitoring. Encapsulated and audible features further enhance its functionality, making it a choice solution for demanding environments. The sensor's compatibility with EPLAN software underscores its modern design and usability in automated systems.
Specifications
IP Rating
IP67
NEMA / UL Type Rating
NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
Sensing Beam
Infrared LED
Power
DC
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Receiver
Housing Style
Rectangular w/M18 Mount
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
3000
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
1
Delay at Power-up (ms)
100
Repeatability (µs)
140
Number of Pins
4
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Barrel Diameter (mm)
18
Indicator
LEDs
Opposed Mode Emitter/Receiver
Receiver
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
EPLAN Status
Published
EPLAN Original Sent Date
01/11/2023
