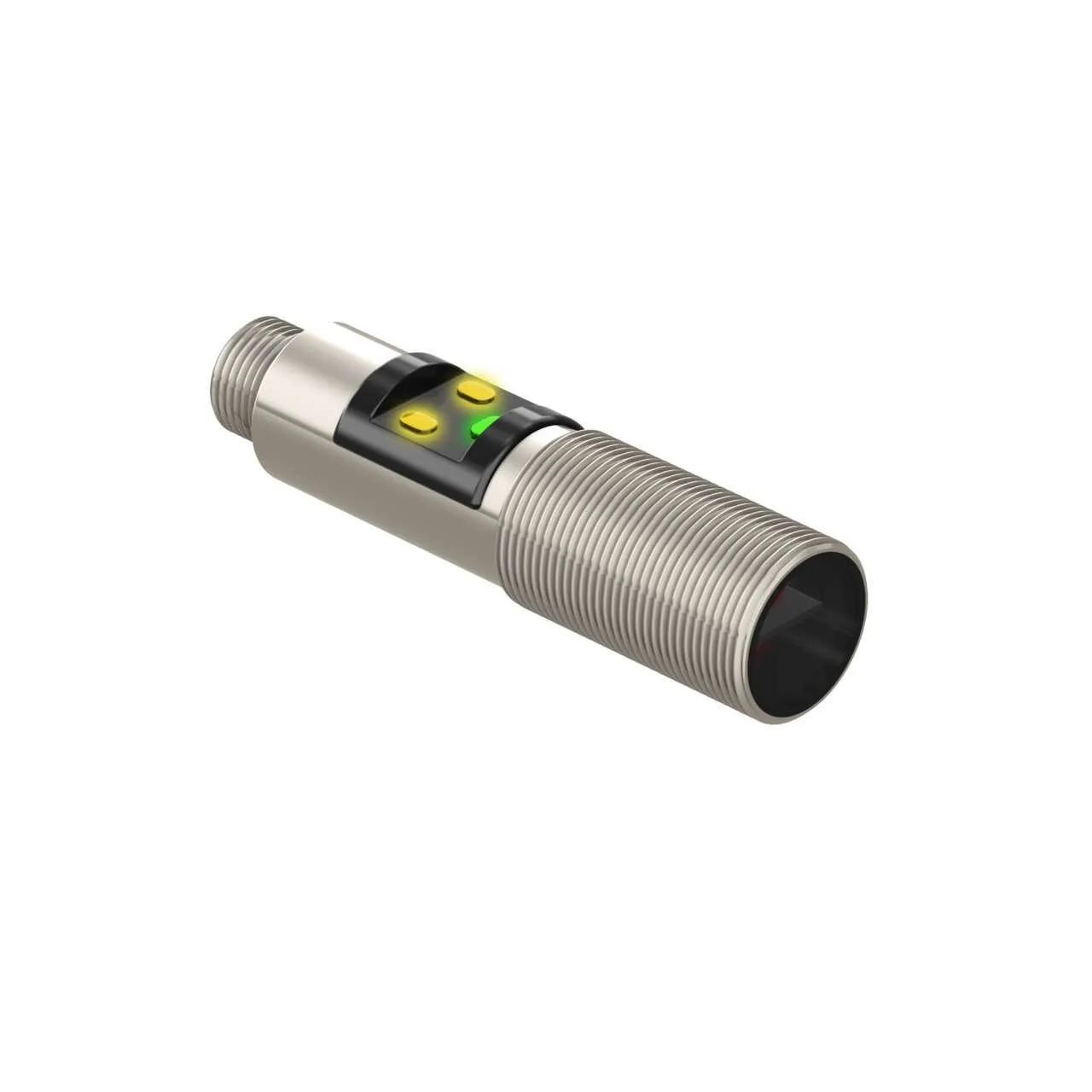

Banner M18-4 Series Washdown Metal Barrel Sensor, IP Rated, 4-pin M12 Integral QD, Reliable Performance, Ideal for Tough Environments, M18-4NAEJ-Q8.

Part Number : M18-4NAEJ-Q8

Brand :
Banner

The Banner M18-4NAEJ-Q8 is a robust 18mm Washdown Metal Barrel-Mount Sensor in the M18-4 Series, designed for precise sensing with a range of up to 25 meters. It features a durable stainless steel housing, IP67, IP68, and IP69K ratings, and a convenient 4-pin M12 integral quick disconnect.

View all

KWD 25.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner M18-4NAEJ-Q8 18mm Washdown Metal Barrel-Mount Sensor, part of the M18-4 Series, is engineered for high-performance sensing applications. Encased in a rugged stainless steel housing, this sensor offers exceptional durability and is designed to withstand harsh environments, as evidenced by its IP67, IP68, and IP69K ratings. The sensor operates with a 10-30 V DC power supply and has a maximum sensing distance of 25 meters, making it suitable for a variety of industrial applications. This model features a beam inhibit input and an integral quick disconnect connection with a 4-pin M12 interface, facilitating easy installation and maintenance. It does not have output signals, focusing instead on reliable beam emission. The sensor ensures operational efficiency with its quick response time and reliable repeatability. Additionally, its design accommodates a wide range of temperatures and relative humidity levels, enhancing its versatility across different environments. The M18-4NAEJ-Q8 is also washdown rated and chemical resistant, providing assurance of longevity and performance in demanding conditions. Its seamless integration and robust features make it an ideal choice for industries requiring high-precision and reliable sensing solutions.

High-Pressure Wash Sensors

The Banner M18-4NAEJ-Q8 18mm Washdown Metal Barrel-Mount Sensor from the M18-4 Series is designed to withstand the harshest environments, offering superior protection with IP67, IP68, and IP69K ratings. This stainless-steel sensor is built to thrive in demanding conditions, ensuring reliable performance in applications that involve water, dust, and high-pressure washdowns. Its robust construction makes it ideal for industries requiring stringent hygiene and durability standards, such as food and beverage processing and industrial automation.

Advanced Sensing Technology

Achieve precision detection with the Banner M18-4NAEJ-Q8 18mm Washdown Metal Barrel-Mount Sensor, which boasts a maximum sensing distance of 25 meters. Equipped with a beam inhibit input and a 4-pin M12 integral quick disconnect, this sensor offers enhanced control and flexibility for your automation systems. Its advanced sensing beam technology ensures accurate and consistent results, making it perfect for applications that require long-range detection and precise object identification.

High-Performance Sensors

The Banner M18-4NAEJ-Q8 18mm Washdown Metal Barrel-Mount Sensor is engineered for versatility, featuring a power supply range of 10-30 V DC and no output, allowing for seamless integration into a variety of systems. Its M12 integral quick disconnect facilitates easy installation and maintenance, while its stainless-steel housing guarantees chemical resistance and longevity. This emitter-only sensor is designed to meet the needs of diverse industrial applications, providing reliable performance and adaptability to any setup.

Downloads

M18-4 Stainless Steel 18 mm Barrel Sensors.pdf

pdf
Download

Specifications

IP Rating
IP67, IP68, IP69K
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Power
DC
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Emitter
Housing Style
Barrel
Primary Housing Material
Stainless Steel
Max Sensing Distance (mm)
25000
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-40
Max Op. Temp. (°C)
70
Output response time (ms)
1.5
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
645
Delay at Power-up (ms)
100
Repeatability (µs)
170
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Barrel Diameter (mm)
18
Indicator
LEDs
Opposed Mode Emitter/Receiver
Emitter
Feature: Washdown Rated
Yes
Feature: Ecolab Certified
Yes
Feature: Audible
No
Feature: Chemical Resistant
Yes
Feature: Quick Disconnect
Yes
