Banner M18-3 Series Sensor, Metal Barrel-Mount Design, IP Rated, Compact and Durable Design, Reliable Performance, M18-3VNDS-2M.

Part Number : M18-3VNDS-2M

Brand :
Banner

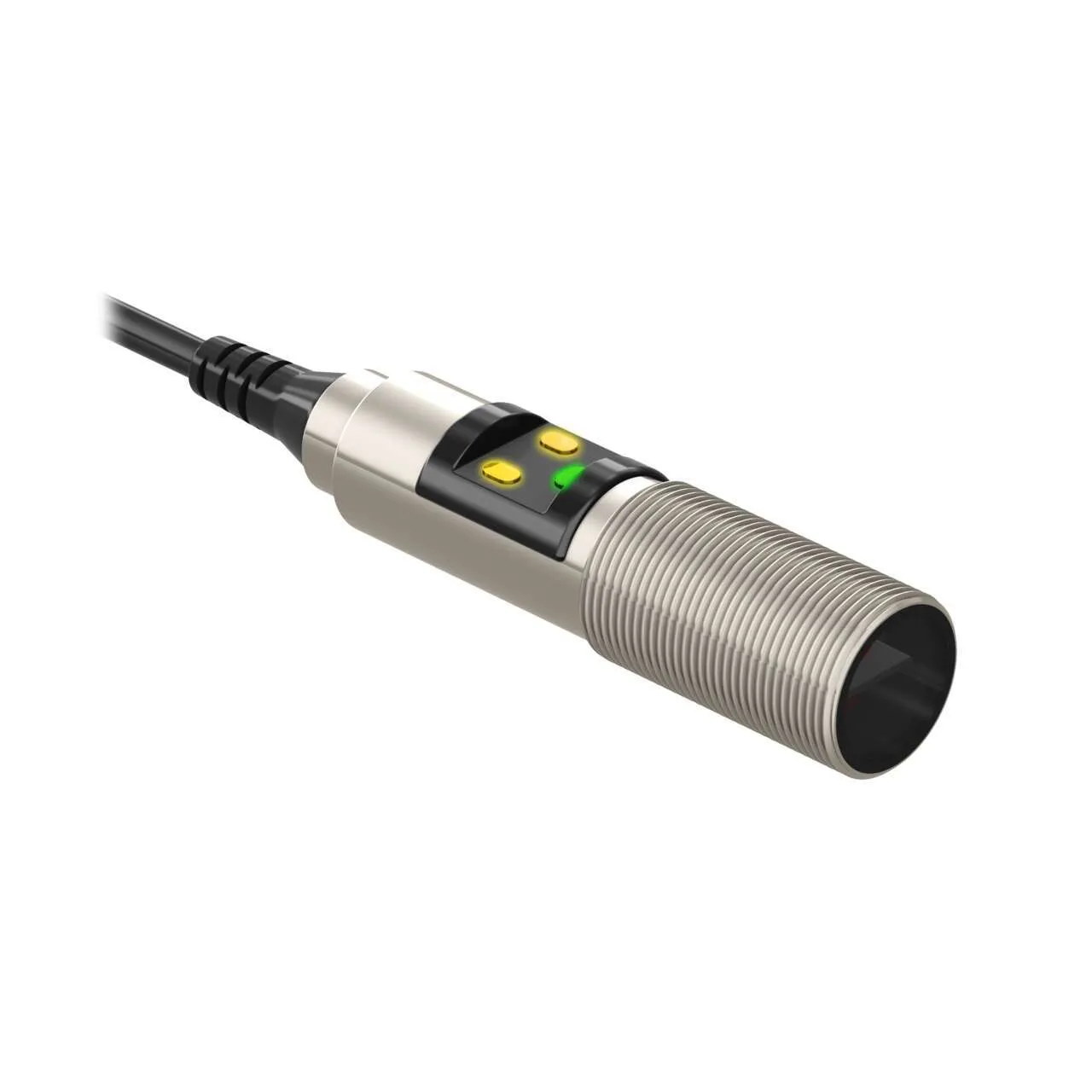

The Banner M18-3VNDS-2M is an 18mm metal barrel-mount sensor, part of the M18-3 Series, featuring a durable nickel-plated brass construction. It offers a diffuse reflective sensing range of 300 mm with complementary NPN outputs and comes with a 2-meter 4-conductor PVC cable. This sensor is rated IP67 and IP69K, making it ideal for challenging environments.

View all

KWD 24.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner M18-3VNDS-2M 18mm metal barrel-mount sensor is an advanced sensing solution from the M18-3 Series, designed for reliable performance in diverse industrial applications. Constructed from robust nickel-plated brass, this sensor ensures durability and resistance to corrosion, ideal for harsh environments. It features a diffuse reflective sensing mode with a maximum sensing distance of 300 mm, utilizing a complementary NPN output for versatile connectivity with control systems. Operating within a 10-30 V dc input range, the sensor is equipped with a 2-meter, 4-conductor PVC cable, providing flexibility in installation and connection. Its IP67 and IP69K ratings highlight its exceptional resistance to dust and water ingress, ensuring functionality in washdown scenarios and high-pressure cleaning environments. The M18-3VNDS-2M sensor is engineered for precise and repeatable performance, offering fast response times suitable for dynamic operational demands. With its washdown-rated feature, it is especially suited for applications requiring stringent hygiene standards. This sensor is a reliable choice for industries requiring robust sensing capabilities in demanding conditions.

High-Performance Sensors

The Banner M18-3VNDS-2M sensor is engineered for ultimate resilience, featuring an impressive IP67 and IP69K rating. This ensures the sensor can withstand harsh environments and rigorous cleaning processes, making it ideal for industries requiring high degrees of protection against dust, water, and high-pressure sanitization. The nickel-plated brass housing further enhances its durability, providing robust resistance to corrosion and physical wear.

Durable Sensor Technology

Equipped with a diffuse reflective sensing mode, the Banner M18-3VNDS-2M sensor delivers precise detection up to 300 mm. This capability is particularly beneficial in applications where accurate object detection and positioning are crucial. The sensor's advanced technology ensures consistent performance, making it a reliable choice for automated systems that demand high precision.

Flexible Installation Options

The Banner M18-3VNDS-2M sensor offers efficient operation with its complementary NPN outputs and a wide input voltage range of 10-30 V DC. This flexibility makes it compatible with various industrial equipment and control systems. The 2 m 4-conductor PVC cable provides easy connectivity, while the sensor's rapid output response time ensures quick and reliable signal transmission, enhancing overall system efficiency.

Downloads

M18-3 Nickel-Plated Brass 18 mm Barrel Sensors.pdf

pdf
Download

Specifications

IP Rating
IP67, IP69K
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Cable Length (m)
2
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Diffuse
Housing Style
Barrel
Primary Housing Material
Nickel-Plated Brass
Input Output
Discrete
Max Sensing Distance (mm)
300
Outputs
NPN
Power Supply/Supply Voltage
10-30 V dc
Connection
Cable
Min Op. Temp. (°C)
-40
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
1.5
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
624
Delay at Power-up (ms)
100
Repeatability (µs)
100
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Barrel Diameter (mm)
18
Indicator
LEDs
Feature: Washdown Rated
Yes
Feature: Audible
No
