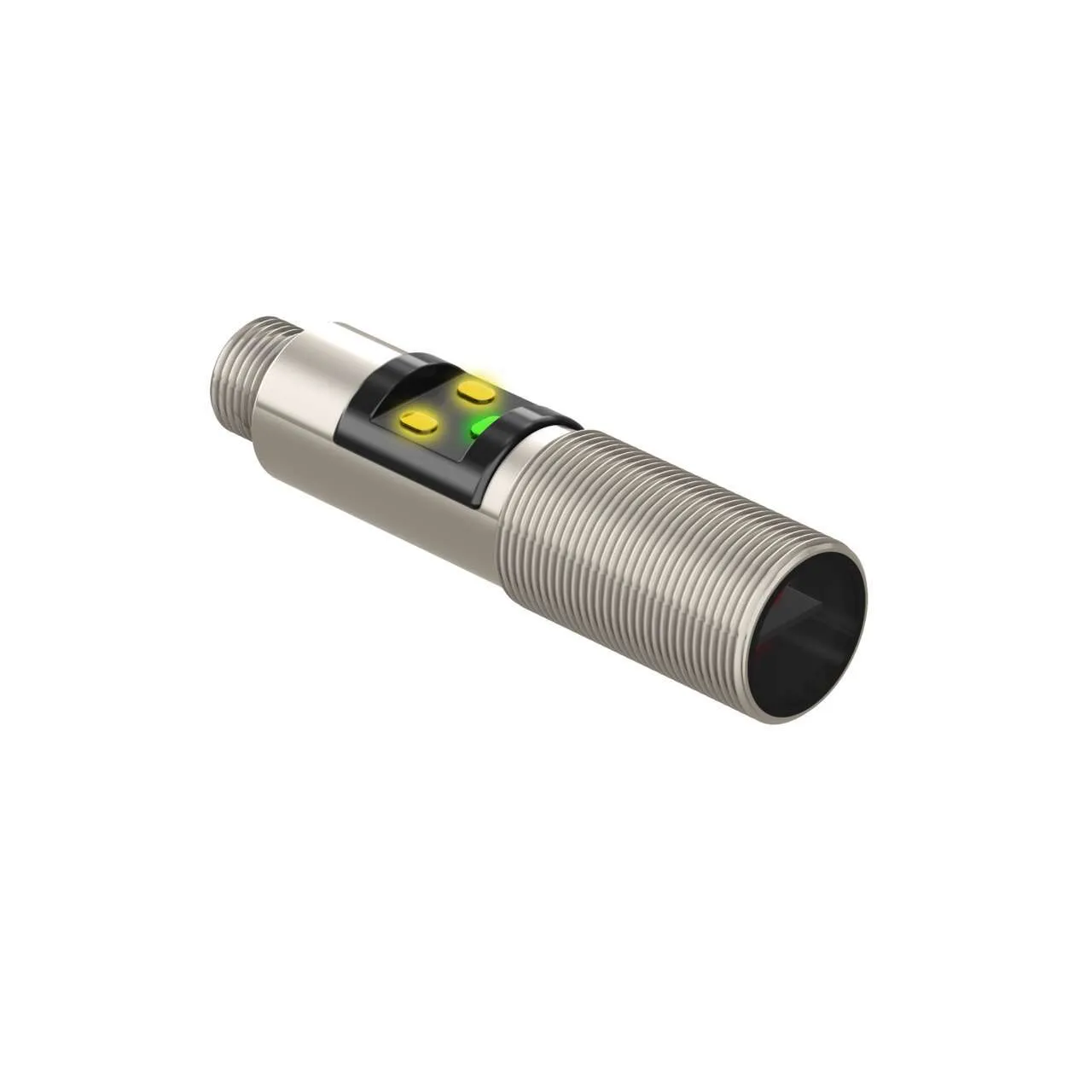

Banner M18-3 Series Sensor, Metal Barrel-Mount Design, IP Rated, 4-pin m12 Integral QD, Extended Sensing Range, 2m (6.5 ft) Cable, Reliable Performance, Compact and Durable Design, M18-3VNDL-Q8.

Part Number : M18-3VNDL-Q8

Brand :
Banner

The Banner M18-3VNDL-Q8 is a robust 18mm metal barrel-mount sensor designed for industrial applications, featuring a nickel-plated brass housing and a diffuse reflective sensing range of 750 mm. It operates on a 10-30 V DC input and offers complementary NPN outputs with a 4-pin M12 integral quick disconnect, suitable for harsh environments with IP67 and IP69K ratings.

View all

KWD 24.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner M18-3VNDL-Q8 sensor from the M18-3 Series is engineered for reliability and durability in demanding industrial settings. Encased in a nickel-plated brass housing, this sensor is built to withstand challenging conditions, boasting an impressive IP67 and IP69K rating for protection against dust, water, and high-pressure washdowns. Its versatile diffuse reflective sensing mode allows for a maximum sensing distance of 750 mm, making it ideal for a variety of applications. Powered by a 10-30 V DC supply, the sensor features complementary NPN outputs, ensuring compatibility with a wide range of control systems. The 4-pin M12 integral quick disconnect facilitates easy installation and maintenance, reducing downtime. With a barrel diameter of 18 mm, the sensor is designed for efficient barrel mounting. Additional features include a rapid output response time and a robust operational temperature range, which ensure reliable performance in various environments. The Banner M18-3VNDL-Q8 is a dependable choice for those seeking a sensor with excellent repeatability and quick response, perfectly suited for industrial automation tasks.

High-Performance Sensors

The Banner M18-3VNDL-Q8 sensor is engineered for environments requiring rugged and durable equipment. Featuring an impressive IP67 and IP69K rating, this sensor is designed to withstand harsh conditions, including dust, high-pressure water, and extreme temperatures. Its nickel-plated brass primary housing material offers superior resistance against corrosion, ensuring longevity and reliability. Whether you're operating in a factory setting or an outdoor environment, trust the M18-3VNDL-Q8 to deliver consistent performance without compromise.

Durable Sensor Technology

Equipped with a diffuse reflective mode and a maximum sensing distance of 750 mm, the Banner M18-3VNDL-Q8 sensor provides precise detection capabilities. Its sensing beam wavelength is optimized for detecting a wide range of materials and surfaces, making it an ideal choice for various industrial applications. With a repeatability of just a few microseconds, this sensor ensures that your operations maintain high accuracy and efficiency. The quick response time and reliable performance make it an indispensable tool in automated systems.

Flexible Installation Options

The Banner M18-3VNDL-Q8 sensor is designed for seamless integration into existing systems. Featuring a 4-pin M12 Integral Quick Disconnect, it offers versatile connectivity options, making installation and maintenance quick and hassle-free. Operating within a power supply range of 10-30 V DC, this sensor is compatible with most industrial power systems. Complementary NPN outputs provide flexible operation modes, enhancing the sensor's adaptability to diverse applications. With its advanced connectivity and power options, the M18-3VNDL-Q8 is an ideal solution for modern industrial environments.

Downloads

M18-3 Nickel-Plated Brass 18 mm Barrel Sensors.pdf

pdf
Download

Specifications

IP Rating
IP67, IP69K
Sensing Beam
Visible Red LED
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Diffuse
Housing Style
Barrel
Primary Housing Material
Nickel-Plated Brass
Input Output
Discrete
Max Sensing Distance (mm)
750
Outputs
NPN
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-40
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
1.5
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
624
Delay at Power-up (ms)
100
Repeatability (µs)
100
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Barrel Diameter (mm)
18
Indicator
LEDs
Feature: Washdown Rated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
