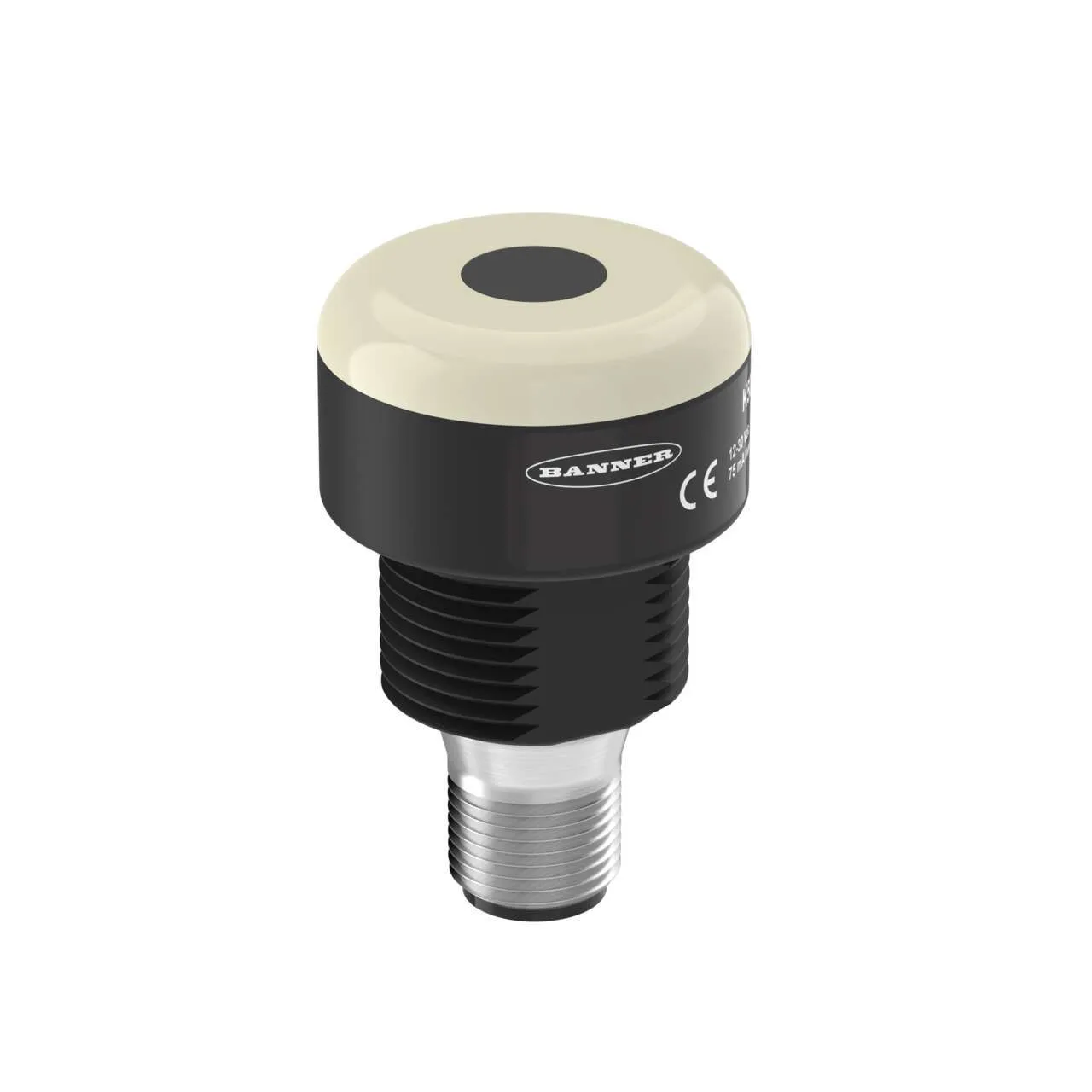

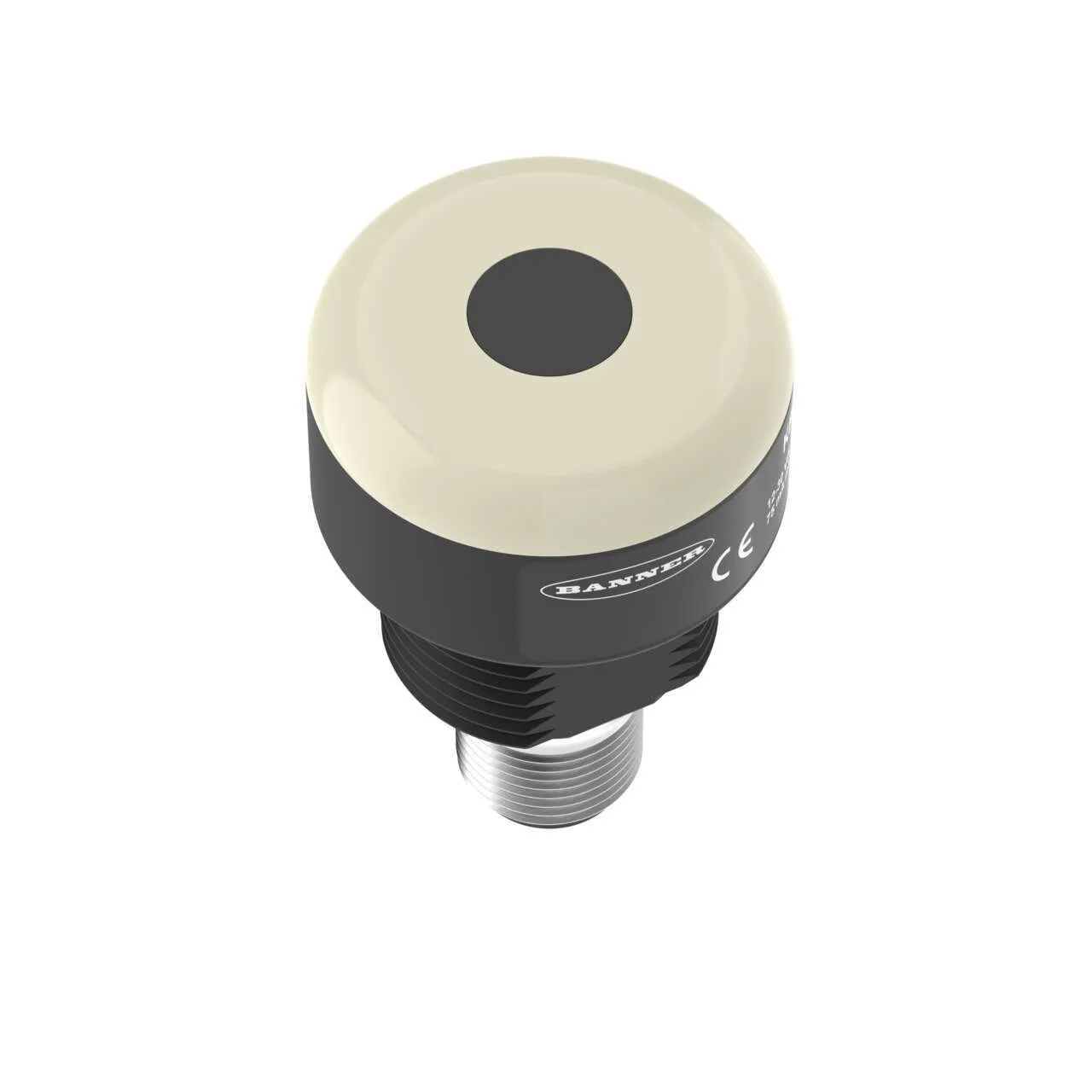

Banner K30 Pro Optical Series, 3-Color RGB Adjustable Field Sensor, 10-30 V dc, Polycarbonate, K30PAF100AMRGB7Q

Part Number : K30PAF100AMRGB7Q

Brand :
Banner

The Banner K30PAF100AMRGB7Q Pro Optical Series is a versatile, adjustable-field sensor with 7-color RGB capability, designed for precise object detection with a range of up to 100 mm. It is housed in a durable polycarbonate casing and features an IP65 rating for reliable operation in various environments.

View all

KWD 57.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Banner K30PAF100AMRGB7Q Pro Optical Series is a high-performance, 7-color RGB adjustable-field sensor ideal for a wide range of industrial applications. Powered by a 10-30 V DC supply, this sensor offers a maximum sensing distance of 100 mm and features a bimodal, normally open, momentary activation function, making it suitable for dynamic operational environments. Encased in a robust polycarbonate housing with an IP65 environmental rating, it provides excellent protection against dust and water ingress, ensuring longevity and reliability in harsh conditions. This sensor is equipped with a multicolor display, allowing for clear visual feedback and real-time status monitoring. The innovative Pro Editor compatibility enables users to configure and customize sensor settings easily. It features an 8-pin M12 integral quick disconnect for seamless integration and installation. The sensor's primary housing is stylishly designed, complementing its high-tech functionality. The Banner K30PAF100AMRGB7Q supports a wide array of color options with adjustable lumens, ensuring adaptability to various lighting conditions and application requirements. Its compact dimensions make it easy to install in space-constrained settings, while its operation is further enhanced by the ability to select functions via wire. This sensor is engineered to perform optimally in environments with a maximum relative humidity of up to 95% (non-condensing) and can withstand storage temperatures ranging from -40°C to 85°C. With features like washdown rating and multi-color capability, this device is not only versatile but also user-friendly, making it an excellent choice for industries seeking reliable and efficient sensor solutions.

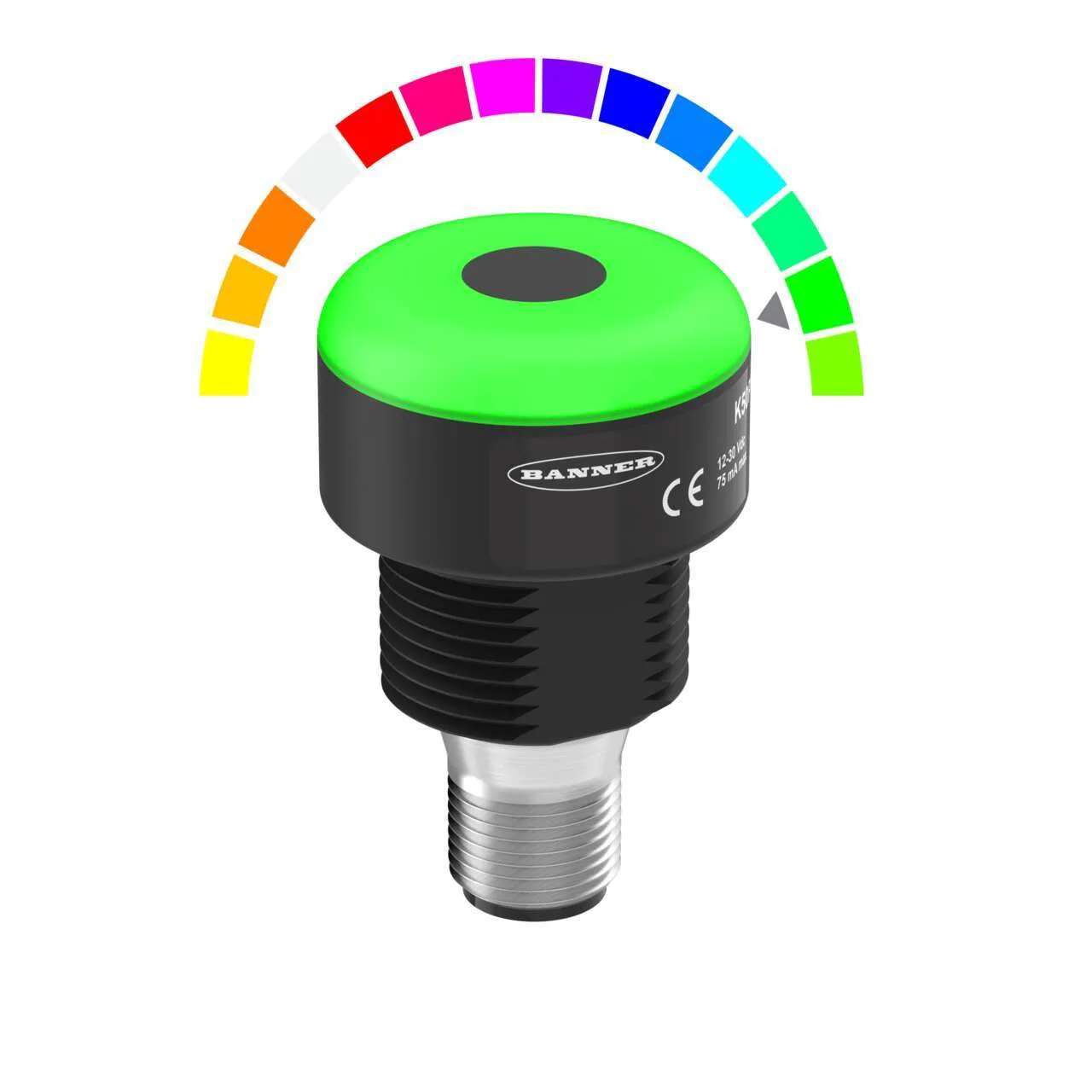

Advanced RGB Sensor Technology

Discover the revolutionary sensing power of the Banner K30PAF100AMRGB7Q Pro Optical Series, designed to elevate your automation systems with precision and reliability. This state-of-the-art sensor boasts a maximum sensing distance of 100 mm, making it ideal for applications requiring pinpoint accuracy. Equipped with a 7-color RGB adjustable-field sensor, it allows for dynamic color detection, ensuring optimal performance in diverse environments. Whether you're in manufacturing or logistics, the Banner K30 Pro with Pro Editor is your go-to choice for high-performance sensing solutions.

High-Visibility Sensing Solutions

Engineered for durability and versatility, the Banner K30PAF100AMRGB7Q Pro Optical Series features a robust polycarbonate housing, ensuring resilience in challenging conditions. With an IP65 environmental rating, this sensor is designed to withstand dust and water ingress, making it suitable for washdown environments. The compact housing style not only saves space but also provides easy installation in tight spaces. With an operating temperature range from low to high extremes, this sensor is built to perform in a variety of industrial settings, ensuring long-lasting reliability.

Durable Polycarbonate Sensor Design

The Banner K30PAF100AMRGB7Q Pro Optical Series stands out with its seamless integration capabilities and customization options. Featuring an 8-pin M12 integral quick disconnect, it offers hassle-free connectivity and maintenance. The sensor's Pro Editor compatibility allows for personalized configuration, enabling users to tailor the sensor's performance to specific applications. With multicolor options and quick disconnect features, the K30 Pro offers unmatched flexibility and ease of use, ensuring you get the most out of your automation systems.

Downloads

K30 Pro Optical Sensor Instruction Manual.pdf

pdf
Download

K30 Pro Optical Sensor Quick Start Guide.pdf

pdf
Download

K30 Pro Optical Sensor Sell Sheet.pdf

pdf
Download

Specifications

Power
DC
Display
No
IP Rating
IP65
Sensing Mode (General)
Proximity
Housing Style
Base Mount - Dome Window
Primary Housing Material
Polycarbonate
Actuation
Yes
Activation Function
Optical
Mounting Thread
M30 x 1.5
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Number of Colors
7
Product Size (mm)
30
Color Technology
RGB Configurable
Color Option 1
Red
Connection
Integral QD
Quick Disconnect Type
M12
Lumens Color 1
3.2
Color 1 - Wavelength/Color Temp/Coordinates
620 nm
Color Option 2
Yellow
Lumens Color 2
7.9
Color 2 - Wavelength/Color Temp/Coordinates
576 nm
Color Option 3
Green
Lumens Color 3
5.8
Color 3 - Wavelength/Color Temp/Coordinates
522 nm
Color Option 4
Cyan
Lumens Color 4
6.5
Color 4 - Wavelength/Color Temp/Coordinates
493 nm
Color Option 5
Blue
Lumens Color 5
1.3
Color 5 - Wavelength/Color Temp/Coordinates
466 nm
Color Option 6
Magenta
Lumens Color 6
3.9
Color Option 7
White
Lumens Color 7
8.8
Max Current Color (mA)
150
Pick-to-Light Function
F2
Wire Selectable Function
Multi-Function
Number of Input Pins/Conductors
8
Operation
The operating principle of the solenoid valve.
Normally Open
Supply Voltage
10-30 V dc
Output Type
Bipolar (NPN & PNP)
Input Type
Bimodal (PNP/NPN)
Max Input Response Time (ms)
40
Max Output Response Time (ms)
120
Maximum Sensing Distance (mm)
100
Physical Dimensions (LxWxH or DxH mm)
30.0 x 48.0
Number of Beams
1
Environmental Rating
IP65
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
High Temperature (up to 100° C)
50
Min Op. Temperature (°C)
-20
Storage Temp (°C)
-40 to 70
Primary Housing Color
Black
Button Operation
Momentary
Primary Window Material
Polycarbonate
Feature: Washdown Rated
Yes
Feature: Audible
No
Multi-Color Device
Simultaneous Colors On
Feature: Quick Disconnect
Yes
Pro-Editor Compatible (Discrete)
Yes
